Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 140mm -
Fork Fox Performance Float 32
-
Groupset X0, X7 -
Suspension Full -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
A6-SL alloy, custom-butted, semi-integrated tapered headset w/ 1.5" lower bearing, hydroformed top and down tube, water bottle mount
Suspension Fork
Fox 32 FLOAT Performance CTD w/ 15mm thru axle, tapered alloy steerer, 140mm travel
Rear Shock
Fox Float Performance CTD
Drivetrain
Rear Derailleur
SRAM XO, 10-speed
Front Derailleur
SRAM X7, 34.9mm
Shift Levers
SRAM X9 trigger, 10-speed
Cassette
SRAM 1070, 11-36T, 10-speed
Crank
SRAM X9 w/ integrated spindle, 38/24T
Bottom Bracket
SRAM press-fit GXP MTB
Chain
KMC X10, 10-speed
Pedals
N/A
Wheels
Rims
Sun Charger Expert 15mm thru front / 142x12 rear, 6-bolt
Tires
Schwalbe Nobby Nic, 26" x 2.35" folding, 67 tpi
Brakes
Brakes
Avid Elixer 5, hydraulic disc, 200mm/180mm rotor
Brake Levers
Avid Elixer 5 w/ MatchMaker
Cockpit
Stem
Oval M613, 3D-forged alloy, 31.8mm clamp diameter, 6° rise
Handlebar
Oval M600, alloy riser bar, 9° sweep, 31.8mm diameter, 680mm wide, 15mm rise
Headset
FSA 1 1/8" - 1.5", sealed cartridge bearings
Seat
Saddle
Oval M600 w/ hollow CrMo rails
Seatpost
Oval M600, alloy double-bolt micro-adjust, 31.6mm x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD | MD/LG | LG |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.37 mm | 1.28 mm | 1.21 mm | 1.16 mm |
| Bottom Bracket Height | 356 mm | 356 mm | 356 mm | 356 mm | 356 mm |
| Front Center | 640 mm | 676 mm | 706 mm | 731 mm | 751 mm |
| Rake | 39 mm | 39 mm | 39 mm | 39 mm | 39 mm |
| Trail | 91 mm | 90 mm | 90 mm | 90 mm | 91 mm |
| Stack | 563.7 mm | 563.7 mm | 563.7 mm | 563.7 mm | 563.7 mm |
| Reach | 374.9 mm | 410.1 mm | 440.1 mm | 465.2 mm | 485.7 mm |
| Top Tube Length | 546.6 mm | 583 mm | 613 mm | 638 mm | 658 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 482 mm | 533 mm | 584 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 125 mm | 125 mm | 125 mm | 125 mm | 125 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1067 mm | 1103 mm | 1133 mm | 1158 mm | 1178 mm |
| Bottom Bracket Drop | -13 mm | -13 mm | -13 mm | -13 mm | -13 mm |
| Standover Height | 782 mm | 791 mm | 794 mm | 794 mm | 795 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" |
About this model

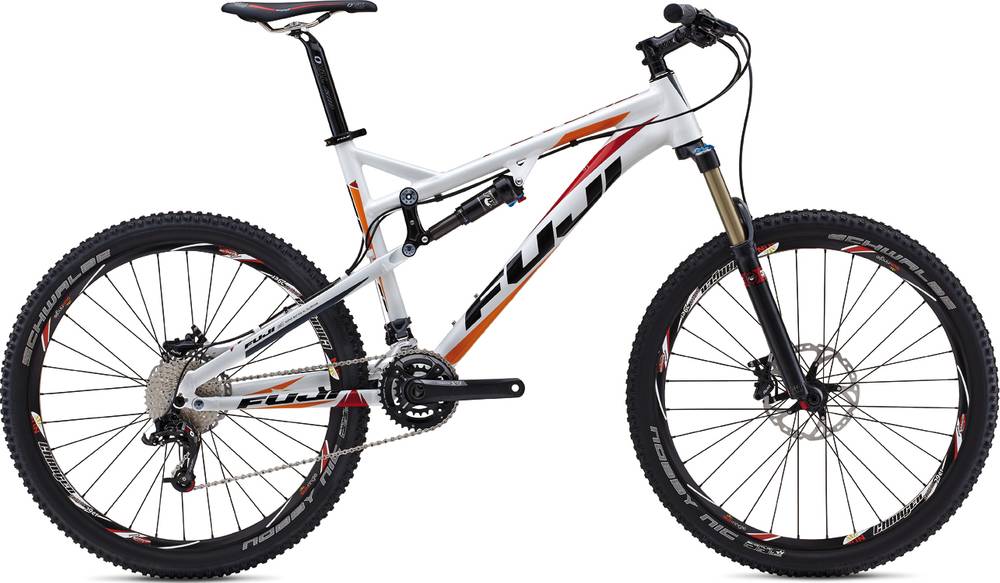

Reveal 1.1 belongs to the Fuji Reveal model. There are 40 bikes that carry this model name. You can easily view all of the Fuji Reveal bikes models from 2013, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Reveal 1.1 components
Fork
The Fox Performance Float 32 is included from the factory. It has a travel distance of 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
The fork is made out of aluminum, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels
When leaving the production line, the Reveal 1.1 model has 26″ aluminum wheels. Being a little smaller, these wheels will fit both small and tall riders. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Fuji Reveal 1.1 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
