Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Fork Manitou
-
Groupset XT, Deore -
Suspension Full -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL alloy, custom-butted, w/ PowerCurve down tube, oversized seat tube, water bottle mount
Suspension Fork
Manitou Minute Comp, tapered alloy steerer, 15mm Thru axle, 140mm travel
Rear Shock
Manitou Radium Expert
Drivetrain
Rear Derailleur
Shimano Deore XT shadow, 10-speed
Front Derailleur
Shimano Deore, 34.9mm
Shift Levers
Shimano Deore, Rapid Fire, 20/30-speed
Cassette
SunRace Driven, 11-36T, 10-speed
Crank
Shimano Deore, hollow Tech II w/ integrated spindle, 38/24T
Bottom Bracket
Shimano sealed cartridge
Chain
KMC X10 w/ MissingLink, 10-speed
Pedals
N/A
Wheels
Rims
Vera Terra DPD22 rim 32h, Formula DC-51 front / DC-308 rear disc hubs, stainless black spokes
Tires
Schwalbe Nobby Nic, 27.5" x 2.25", 67tpi, folding
Brakes
Brakes
Shimano 396, hydraulic disc, 180/160mm rotor
Brake Levers
Shimano 396, hydraulic disc
Cockpit
Stem
Kore Cubix, 6061 3D-forged alloy, 31.8mm, 6° rise
Handlebar
Oval Concepts 200, 6061 alloy, riser, 31.8mm, 9° sweep, 15mm rise, 710mm wide
Headset
FSA NO.42B, 1 1/8" - 1.5", caged bearings
Seat
Saddle
Oval Concepts 200 w/ steel rails
Seatpost
Oval Concepts 300, 6061 alloy, 30.9mm, double-bolt micro-adjust
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD | MD/LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.41 mm | 1.38 mm | 1.35 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 673 mm | 706 mm | 726 mm | 746 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 95 mm | 96 mm | 96 mm | 96 mm |
| Stack | 582 mm | 592 mm | 601 mm | 610 mm |
| Reach | 391 mm | 420 mm | 437 mm | 453 mm |
| Top Tube Length | 570 mm | 602 mm | 621 mm | 640 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 533.4 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1115 mm | 1148 mm | 1168 mm | 1188 mm |
| Bottom Bracket Drop | 10 mm | 10 mm | 10 mm | 10 mm |
| Standover Height | 780 mm | 780 mm | 780 mm | 780 mm |
| Wheels | 27" | 27" | 27" | 27" |
Model Overview

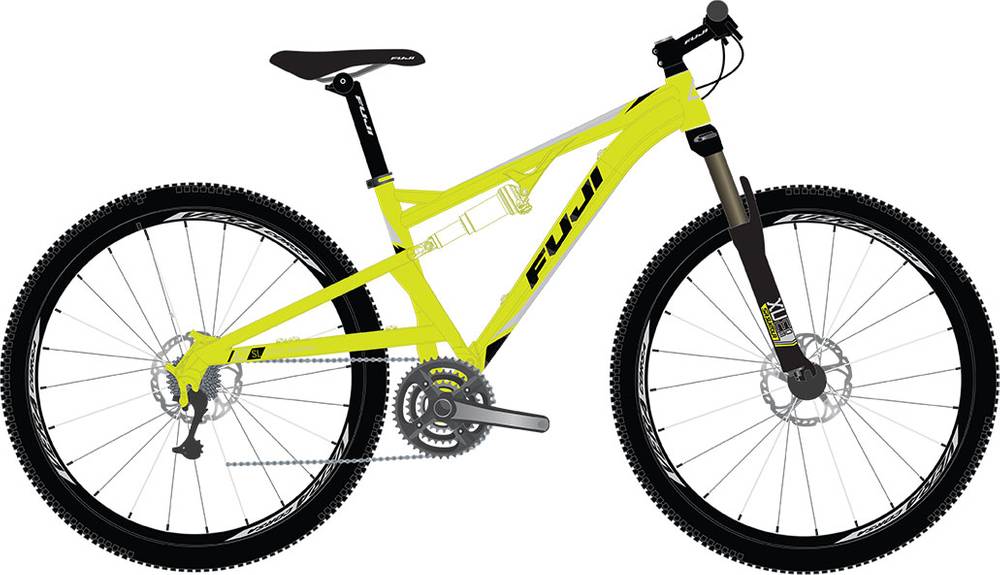

Reveal 1.1 Disc completes the Fuji Reveal model. Fuji released 40 bikes variations of this model so far. You can get a glimpse at all models from 2015, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Fork
Fuji Reveal 1.1 Disc 2015 bike is equipped with the Manitou fork, and has 140mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
The fork on this bike is made out of aluminum, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels
When it comes to wheels, the Reveal 1.1 Disc bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Fuji Reveal 1.1 Disc has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
