Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 130mm -
Fork RockShox Recon Silver RL
-
Groupset XT -
Suspension Full -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
A-6 Quaternary phase alloy, custom butted, integrated head tube, top tube/seat tube gusset, down tube gusset, CNC'D hollow box section BB, water bottle mount
Suspension Fork
Rock Shox Recon 351 Air w/ PopLoc Remote, 130mm Travel
Rear Shock
Rock Shox Ario 2.2 Hydraulic damping w/LO
Drivetrain
Rear Derailleur
Shimano XT Shadow Top normal
Front Derailleur
Shimano XT, 34.9mm
Shift Levers
Shimano XT Rapid Fire, 27-speed
Cassette
Shimano XT, 11-34T 9-speed
Crank
Shimano XT Hollow Tech II w/Integrated spindle, 22/32/44T
Bottom Bracket
Shimano Exterior Bearing System
Chain
Shimano HG-73
Pedals
none
Wheels
Rims
Shimano XT Tubeless Disc, Centerlock
Tires
Schwalbe Nobby Nic UST 26 X 2.25" Foldable
Brakes
Brakes
Shimano XT Hydraulic Disc, 180mm Centerlock rotor
Brake Levers
Shimano XT
Cockpit
Stem
TruVativ Team Forged AL 1 1/8"
Handlebar
TruVativ Team Alloy Riser
Headset
Ritchey Logic Zero Pro 1 1/8" Press Fit Integrated, 30mm spacers
Seat
Saddle
WTB Silverado Comp
Seatpost
TruVativ Team DC Forged Al, 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 43.1cm | 48.2cm | 53.3cm |
|---|---|---|---|
| Bottom Bracket Height | 322.8 mm | 322.8 mm | 322.8 mm |
| Front Center | 657 mm | 682 mm | 703 mm |
| Rake | 39 mm | 39 mm | 39 mm |
| Top Tube Length | 582 mm | 607 mm | 627 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 431 mm | 482 mm | 533 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 125 mm | 130 mm | 140 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1088 mm | 1113 mm | 1134 mm |
| Bottom Bracket Drop | 11 mm | 11 mm | 11 mm |
| Standover Height | 783 mm | 799 mm | 821 mm |
| Wheels | 26" | 26" | 26" |

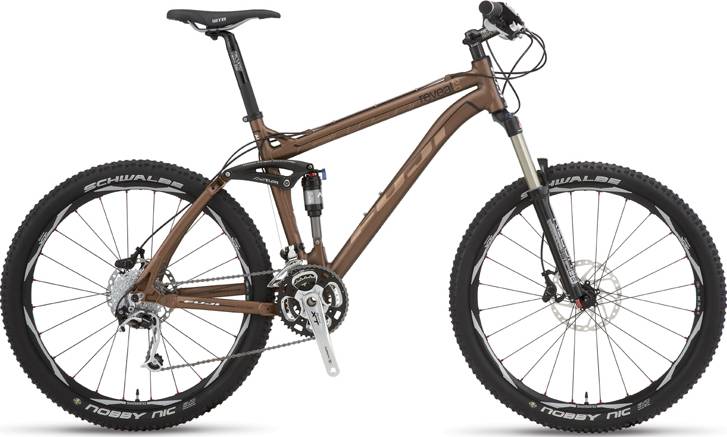

About this model
Reveal 2.0 is a Fuji Reveal model. Fuji launched 40 bikes of this model so far. Take a sneak peek at all Fuji Reveal bikes models from 2009, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Trail bikes average weight
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 12.76 kg (28.13 lbs), the Reveal 2.0 model is slightly lighter than average. To sum up, it’s 1.72% lighter than the average weight of Trail bikes.
Reveal 2.0 components
Fork
Fuji Reveal 2.0 2009 bike is equipped with the RockShox Recon Silver RL fork, and has 130mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When leaving the production line, the Reveal 2.0 model has 26″ aluminum wheels. These wheels give you great handling over your bike. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
Nothing is more important on a bike than its ability to brake properly. Fuji Reveal 2.0 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
