Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 140mm -
Fork RockShox Revelation RC
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
A6-SL Quaternary phase Aluminum, custom butted, integrated Tapered head tube with 1 1/2" lower bearing, hydroformed top and down tube, water bottle mount
Suspension Fork
ROCKSHOX Revelation RL Dual Air Tapered Steerer w/ 15mm Thru-Axle, 140mm Travel
Rear Shock
ROCKSHOX Monarch RT High Volume
Drivetrain
Rear Derailleur
Shimano XT SGS Shadow Top normal 10sp
Front Derailleur
Shimano SLX, 34.9mm
Shift Levers
Shimano SLX Rapid Fire, 30-speed
Cassette
Shimano SLX 11-36T 10sp
Crank
Shimano SLX Hollow Tech II w/Integrated spindle, 24/32/42T
Bottom Bracket
Shimano Press In Bearing system
Chain
Shimano HG-74
Pedals
none
Wheels
Rims
Shimano SLX Centerlock, 32H hubs w/15mm front thru-axle with Alex TD17 Double Wall rims
Tires
Continental Mountain King 26x2.2" Foldable
Brakes
Brakes
Shimano M575 Hydraulic Disc, 203/180mm Centerlock rotor
Brake Levers
Shimano BL-M575 Hydraulic Forged Al Brake Lever
Cockpit
Stem
Oval M-200 RBT 6061 Alloy Stem, 31.8mm
Handlebar
Oval M-200 15mm 5sweep Double Butted 6061 Riser Bar 31.8mm
Headset
Fuji MTB 1 1/8-1 1/5" Semi-Integrated, 30mm spacers
Seat
Saddle
Oval M-200 w/CrMo Rails
Seatpost
Oval M-200 31.6x400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm |
| Top Tube Length | 583 mm | 613 mm | 638 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 432 mm | 482 mm | 533 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Chainstay Length | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1103 mm | 1133 mm | 1158 mm |
| Wheels | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

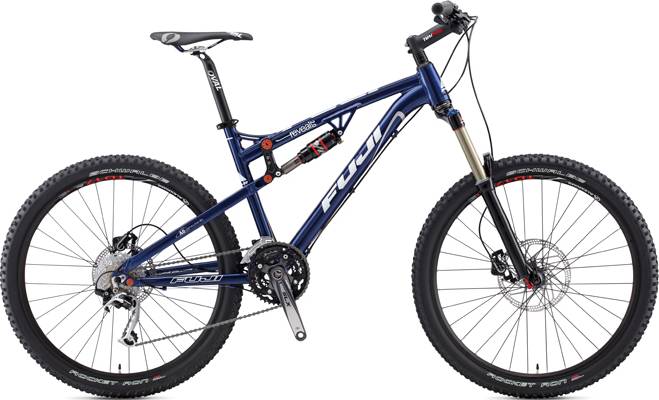

Reveal 2.0 is a Fuji Reveal model. Fuji launched 40 bikes of this model so far. Check out the entire range from 2011 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Trail bikes average weight
The average weight for Trail bikes is 12.98 kg (28.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Fuji Reveal 2.0 it’s weighing 12.6 kg (27.78 lbs). At this weight, is slightly lighter than average. To sum up, it’s 3.02% lighter than the average weight of Trail bikes.
Reveal 2.0 components
Fork
The fork installed on this bike is the RockShox Revelation RC model. The travel on this model is 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When leaving the production line, the Reveal 2.0 model has 26″ aluminum wheels. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
When you want to stop the bike in time, the brakes are vital. The Reveal 2.0 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
