Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 140mm -
Fork RockShox Revelation RC
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
A6-SL alloy w/ semi-integrated tapered headset w/ 1 1/2" lower bearing, hydroformed top and down tube, water bottle mount
Suspension Fork
RockShox Revelation RL Dual Air w/ remote lockout tapered alloy steerer w/ 15mm thru axle, 140mm travel
Rear Shock
RockShox Monarch RT3 High Volume
Drivetrain
Rear Derailleur
Shimano Deore XT SGS, 10-speed
Front Derailleur
Shimano SLX, 34.9mm
Shift Levers
Shimano SLX Rapid Fire, 30-speed
Cassette
Shimano Deore, 11-36T 10-speed
Crank
Shimano SLX Hollow Tech II w/ integrated spindle, 24/32/42T
Bottom Bracket
Shimano Press-Fit
Chain
KMC, 10-speed
Pedals
N/A
Wheels
Rims
Fuji custom 32H mountain hubs, Alex double wall rims
Tires
Continental Mountain King, 26x2.2" folding or Hutchinson Toro 26x2.35" folding
Brakes
Brakes
Tektro Auriga Pro hydraulic disc, 203/180mm rotor
Brake Levers
Tektro Auriga Pro hydraulic disc
Cockpit
Stem
Oval M200 alloy reverse bolt technology, 31.8mm
Handlebar
Oval M200 alloy riser bar, 15mm rise, 9° sweep, 31.8mm, 680mm wide
Headset
Oval 1 1/8-1 1/2" semi-integrated, 30mm spacers
Seat
Saddle
Oval M200 w/ CrMo rails
Seatpost
Oval M200, 31.6x350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM/MD | MD | MD/LG |
|---|---|---|---|
| Bottom Bracket Height | 352 mm | 352 mm | 352 mm |
| Top Tube Length | 583 mm | 613 mm | 638 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 432 mm | 482 mm | 533 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Chainstay Length | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1103 mm | 1133 mm | 1158 mm |
| Bottom Bracket Drop | -9 mm | -9 mm | -9 mm |
| Standover Height | 804 mm | 806 mm | 808 mm |
| Wheels | 26" | 26" | 26" |
Model Overview

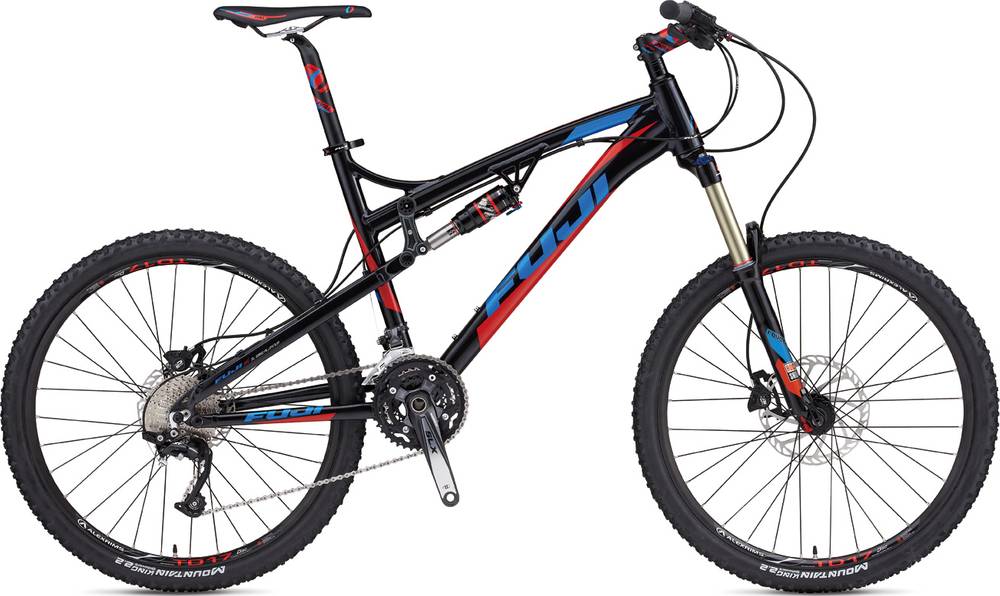

Reveal 2.0 is part of the Fuji Reveal model. Fuji launched 40 bikes of this model so far. You can get a glimpse at all models from 2012, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork
The RockShox Revelation RC is included from the factory. It has a travel distance of 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
The fork on this bike is made out of aluminum, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels
The Reveal 2.0 2012 bike is equipped with 26″ aluminum wheels when leaving the factory. Being a little smaller, these wheels will fit both small and tall riders. However, they provide less traction than 29″ wheels do.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
