Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Fork RockShox Sektor
-
Groupset XT, Deore -
Suspension Full -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL custom-butted alloy, w/ PowerCurve down tube, tapered 1 1/8" - 1.5" head tube, oversized seat tube
Suspension Fork
Rock Shox Sektor Silver TK Solo Air 27.5 w/ tapered alloy steerer, 15mm Thru axle, 140mm travel
Rear Shock
Rock Shox Monarch RL
Drivetrain
Rear Derailleur
Shimano Deore XT shadow, 10-speed
Front Derailleur
Shimano Deore, 34.9mm
Shift Levers
Shimano Deore, Rapid Fire, 20/30-speed
Cassette
Shimano HG50, 11-36T, 10-speed
Crank
Shimano Deore, hollow Tech II w/ integrated spindle, 38/24T
Bottom Bracket
Shimano sealed cartridge
Chain
KMC X10 w/ MissingLink, 10-speed
Pedals
N/A
Wheels
Rims
Vera Terra DPD22 rim 32h, Formula DC-51 front, DC-308 rear disc hubs, stainless black spokes
Tires
Schwalbe Nobby Nic Performance, 27.5" x 2.25", 67tpi, folding
Brakes
Brakes
Shimano 395, hydraulic disc, 180/160mm rotors
Brake Levers
Shimano 396, hydraulic disc
Cockpit
Stem
Oval Concepts 600AM, 6061 3D-forged alloy, 31.8mm clamp diameter, 0° rise
Handlebar
Oval Concepts 200, 6061 alloy, riser, 31.8mm, 9° sweep, 15mm rise
Headset
FSA NO. 42B, 1 1/8" - 1.5", caged bearings
Seat
Saddle
Oval Concepts 200 w/ steel rails
Seatpost
Oval Concepts 300, 6061 alloy, 30.9mm, double-bolt micro-adjust
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.41 mm | 1.38 mm | 1.35 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 673 mm | 706 mm | 726 mm | 746 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 95 mm | 96 mm | 96 mm | 96 mm |
| Stack | 582 mm | 592 mm | 601 mm | 610 mm |
| Reach | 391 mm | 420 mm | 437 mm | 453 mm |
| Top Tube Length | 570 mm | 602 mm | 621 mm | 640 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 533.4 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1115 mm | 1148 mm | 1168 mm | 1188 mm |
| Bottom Bracket Drop | 10 mm | 10 mm | 10 mm | 10 mm |
| Standover Height | 800 mm | 806 mm | 810 mm | 814 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

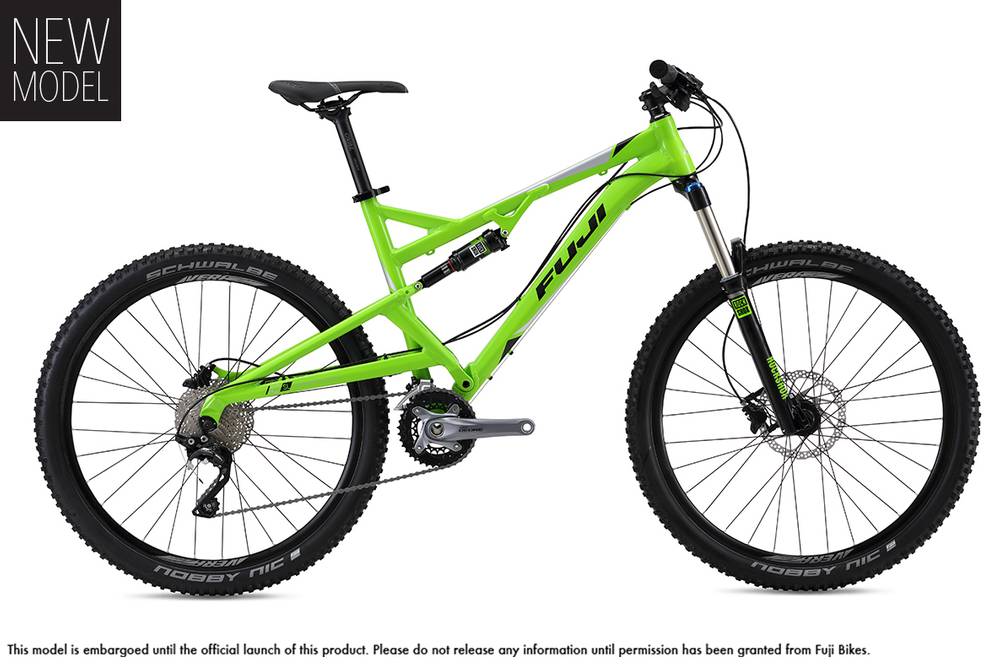

Reveal 27.5 1.0 is part of the Fuji Reveal model. Fuji released 40 bikes variations of this model so far. Check out the entire range from 2016 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Average weight for Trail bikes
Trail bikes weigh an average of 12.98 kg (28.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 13.68 kg (30.16 lbs), the Reveal 27.5 1.0 model is a bit heavier than average. In other words, this model is 5.39% heavier than the average Trail bike.
Overview of components
Fork
Fuji Reveal 27.5 1.0 2016 bike is equipped with the RockShox Sektor fork, and has 140mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
When it comes to the fork, this bike has an aluminum one, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
The Reveal 27.5 1.0 2016 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Fuji Reveal 27.5 1.0 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
