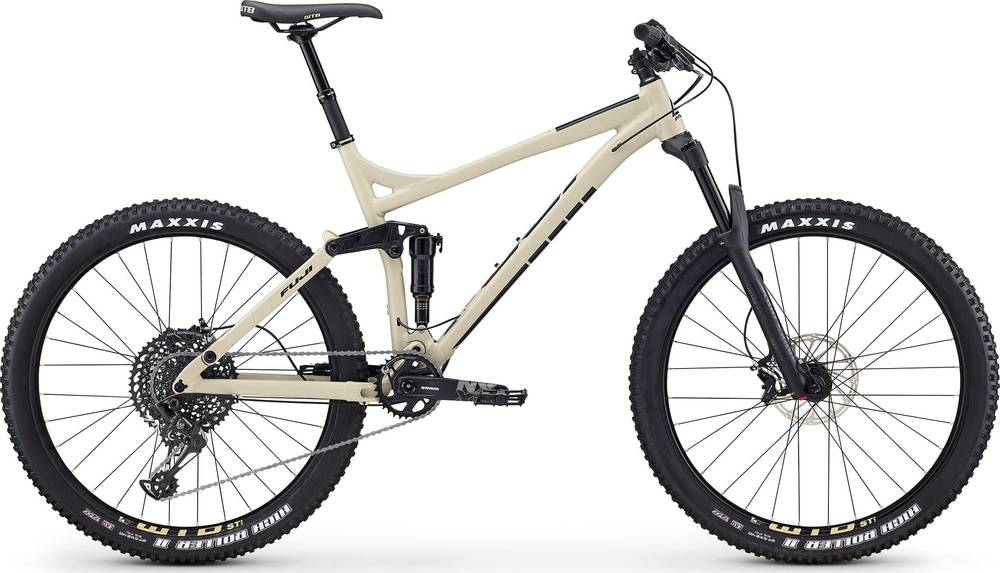

Fuji Reveal 27.5 1.0 2019
2019 Mountain
Estimate price |
2,299$
Weight | 14.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 130mm -
Travel Rear 120mm -
Fork RockShox Sektor
-
Groupset NX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 160cm
MD
157cm - 163cm
LG
160cm - 167cm
XL
164cm - 171cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL custom-butted alloy, sealed cartridge bearing pivots, A4 suspension, Boost 148x12mm, 120mm
Suspension Fork
RockShox Sektor RL 27.5 Solo Air, tapered alloy steerer, Boost 110x15mm, 130mm
Rear Shock
RockShox Deluxe RL
Drivetrain
Rear Derailleur
SRAM NX Eagle
Front Derailleur
N/A
Shift Levers
SRAM NX Eagle, 1 x 12-speed
Cassette
SRAM PG-1230 10-50T
Crank
SRAM NX Eagle, 32T
Bottom Bracket
SRAM DUB, threaded
Chain
SRAM NX Eagle
Pedals
Alloy platform
Wheels
Rims
WTB ST i29 32H rims, Formula CL-511 front, DC-1248 rear hubs, stainless black spokes
Tires
Maxxis High Roller II, 27.5" x 2.40", 60tpi, EXO, Tubeless Ready, folding
Brakes
Brakes
SRAM Guide T, 180mm rotors
Brake Levers
SRAM Guide T
Cockpit
Stem
Oval Concepts 600AM, alloy, 0°
Handlebar
Oval Concepts 215 riser bar, alloy, 15mm rise, 760mm
Grips
WTB Waffel Grip, Single lock on
Headset
FSA 1 1/8" - 1.5", sealed bearings
Seat
Saddle
WTB Volt Sport
Seatpost
KS E30i Integra dropper, 30.9mm, 15, 17" - 100mm travel, 19, 21" - 125mm travel, Southpaw Lever
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.279 mm | 1.236 mm | 1.197 mm | 1.173 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 691 mm | 717 mm | 743 mm | 764 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 98 mm | 98 mm | 98 mm | 98 mm |
| Stack | 547.7 mm | 557 mm | 566.2 mm | 575.5 mm |
| Reach | 428.1 mm | 450.5 mm | 473 mm | 490.8 mm |
| Top Tube Length | 580 mm | 605 mm | 630 mm | 650 |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 400 mm | 432 mm | 488 mm | 533.4 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1121 mm | 1147 mm | 1173 mm | 1194 mm |
| Bottom Bracket Drop | 10 mm | 10 mm | 10 mm | 10 mm |
| Standover Height | 781 mm | 786 mm | 800 mm | 822 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 154 cm | 157 cm | 160 cm | 164 cm |
| Rider Max Height | 160 cm | 163 cm | 167 cm | 171 cm |
Model Overview
Reveal 27.5 1.0 completes the Fuji Reveal model. Fuji released 40 bikes variations of this model so far. You can easily view all of the Fuji Reveal bikes models from 2019, here.
Model range prices
The most economical model, the Fuji Reveal 27.5 1.3 2019 has a starting price of 1599$. Fuji Reveal 27.5 1.0 2019 on the other hand is the most expensive at 2299$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2299$. Doing a quick comparison, we notice that Reveal 27.5 1.0 price is 20.14% smaller than the average cost of a Trail bike.
Trail bikes average weight
The average weight for Trail bikes is 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Fuji Reveal 27.5 1.0 it’s weighing 14.6 kg (32.19 lbs). At this weight, is considerably heavier than average. In other words, this model is 12.48% heavier than the average Trail bike.
Reveal 27.5 1.0 components
Fork
The Reveal 27.5 1.0 comes factory-installed with the RockShox Sektor fork. This has a travel range of 130mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
When it comes to the fork, this bike has an aluminum one, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Rear Shock
Fuji Reveal 27.5 1.0 bike has the RockShox Deluxe RL model installed, and has a travel of 120mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When leaving the production line, the Reveal 27.5 1.0 model has 27.5″ aluminum wheels. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Fuji Reveal 27.5 1.0 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Reveal 27.5 1.0 comes in 4 sizes, that range from 154 cm – 171 cm (5.05 ft – 5.61 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
The Fuji model is also equipped with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
