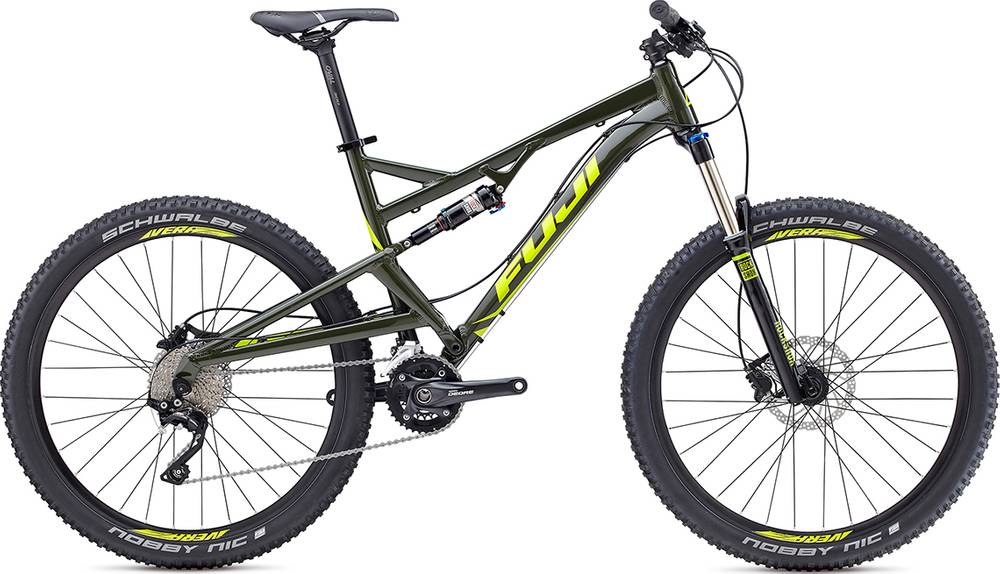

Fuji Reveal 27.5 1.1 2017
2017 Mountain
Estimate price |
1,524$
Weight | 13.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 140mm -
Fork RockShox Sektor
-
Groupset XT, Deore -
Suspension Full -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL custom-butted alloy front triangle w/ PowerCurve down tube, tapered 1 1/8" - 1.5" head tube, oversized seat tube, Fuji A1-SL alloy rear triangle, post disc mount and replaceable hanger, sealed cartridge bearing pivot, 140mm travel
Suspension Fork
RockShox Sektor Silver RL Solo Air 27.5 w/ tapered alloy steerer, 15mm thru axle, 140mm travel
Rear Shock
RockShox Monarch RL
Drivetrain
Rear Derailleur
Shimano Deore XT shadow, 10-speed
Front Derailleur
Shimano Deore, 34.9mm
Shift Levers
Shimano Deore, Rapid Fire, 20/30-speed
Cassette
Shimano HG50, 11-36T, 10-speed
Crank
Shimano Deore, Hollow Tech II w/ integrated spindle, 36/22T
Bottom Bracket
Shimano sealed cartridge
Chain
KMC X10 w/ MissingLink, 10-speed
Wheels
Rims
Vera Terra DPD22 rim 32h, Formula DC-51 front, DC-308 rear disc hubs, stainless black spokes
Tires
Schwalbe Nobby Nic Performance, 27.5" x 2.25", 67tpi, folding
Brakes
Brakes
Shimano 395, hydraulic disc, 180/160mm rotors
Brake Levers
Shimano 396, hydraulic disc
Cockpit
Stem
Oval Concepts 600AM, 3D-forged 6061 stem body, 0°
Handlebar
Oval Concepts 200 riser bar, 6061 alloy, 15mm rise, 9° sweep, 31.8mm clamp
Grips
Oval Concepts 600, single lock on, single density Kraton
Headset
FSA NO. 42B, 1 1/8" - 1.5", caged bearings
Seat
Saddle
Oval Concepts 200, steel rail
Seatpost
Oval Concepts 300, 6061 alloy, 30.9mm diameter
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.41 mm | 1.38 mm | 1.35 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 673 mm | 706 mm | 726 mm | 746 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 96 mm | 96 mm | 96 mm | 96 mm |
| Stack | 582.4 mm | 591.7 mm | 601 mm | 610.2 mm |
| Reach | 391.3 mm | 420.5 mm | 436.7 mm | 452.8 mm |
| Top Tube Length | 570 mm | 602 mm | 621 mm | 640 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 533.4 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1115 mm | 1148 mm | 1168 mm | 1188 mm |
| Bottom Bracket Drop | 10 mm | 10 mm | 10 mm | 10 mm |
| Standover Height | 799 mm | 806 mm | 809 mm | 814 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Reveal 27.5 1.1 is a Fuji Reveal model. 40 bikes variations carry this model name so far. Check out the entire range from 2017 of this model, by clicking this link.
Model range prices
Fuji Reveal 27.5 1.5 2017 is the most economical model, with a starting price of 1099$. Fuji Reveal 27.5 1.1 2017 on the other hand costs 1524$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Fuji Reveal 27.5 1.1 price was 1524$. If we compare this with the average Trail bike cost we notice that the price is 81.23% lower.
Trail bikes average weight
If we make a quick analysis of the average weight of a Trail bike, we get 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
a bit heavier than average, Reveal 27.5 1.1 has a weight of 13.7 kg (30.2 lbs). In conclusion, the average Trail bike weighs 5.55% less than Reveal 27.5 1.1.
Overview of components
Fork
Fuji Reveal 27.5 1.1 2017 bike is equipped with the RockShox Sektor fork, and has 140mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
The fork on this bike is made out of aluminum, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Rear Shock
From the factory, it comes with the RockShox Monarch RL rear shock model, which has a travel of 140mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The Reveal 27.5 1.1 2017 bike is equipped with 27.5″ aluminum wheels when leaving the factory. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Reveal 27.5 1.1 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
