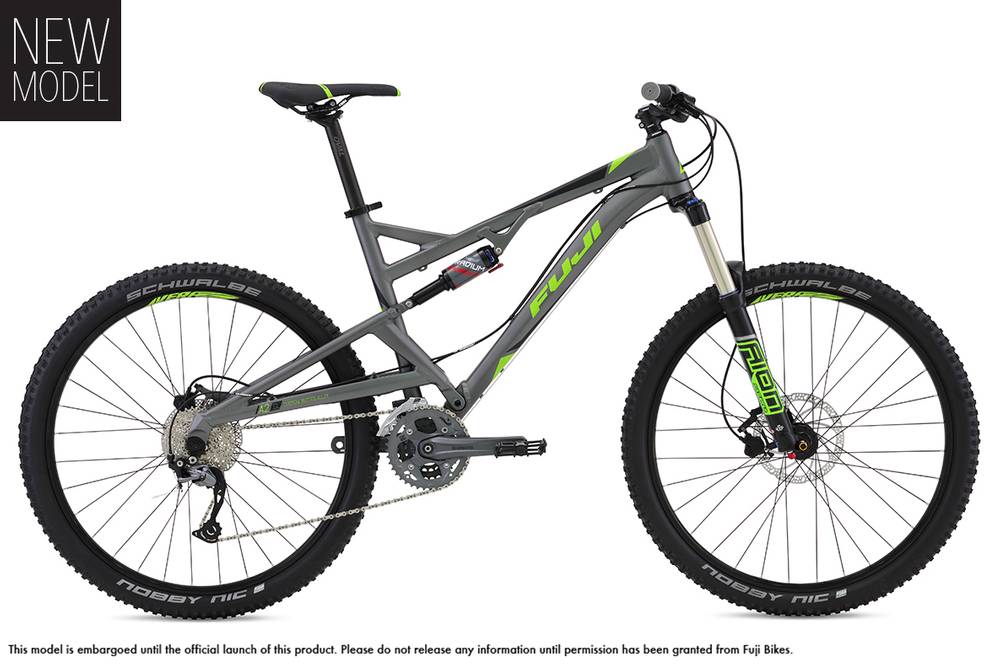

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Fork SunTour EPIXON
-
Groupset Alivio -
Suspension Full -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL custom-butted alloy, w/ PowerCurve down tube, tapered 1 1/8" - 1.5" head tube, oversized seat tube
Suspension Fork
SR Suntour SF15-Epixon-TR Elite-LO-R-QLC2-27.5- w/ tapered alloy steerer, 15mm Thru axle, 140mm travel
Rear Shock
Manitou Radium Comp
Drivetrain
Rear Derailleur
Shimano Alivio shadow, 9-speed
Front Derailleur
Shimano Alivio, 34.9mm
Shift Levers
Shimano Alivio, Rapid Fire, 9-speed
Cassette
Shimano HG300, 12-36T, 9-speed
Crank
Shimano Alivio, Octalink, 40/30/22T
Bottom Bracket
Shimano Octalink sealed cartridge
Chain
KMC X9, 9-speed
Pedals
Alloy platform
Wheels
Rims
Vera Terra DPD18 rim 32h, Formula DC-51 front, DC-22 rear disc hubs, stainless black spokes
Tires
Schwalbe Nobby Nic Performance, 27.5" x 2.25", 67tpi, folding
Brakes
Brakes
Tektro HD-M290, hydraulic disc, 180/160mm rotors
Brake Levers
Tektro HD-M290, hydraulic disc
Cockpit
Stem
Kore Cubix Alloy, 31.8mm clamp diameter, 6° rise
Handlebar
Oval Concepts riser bar, 6061 alloy, 31.8mm, 9° sweep, 15mm rise
Headset
FSA NO. 42B, 1 1/8" - 1.5", caged bearings
Seat
Saddle
Oval Concepts 200 w/ steel rails
Seatpost
Oval Concepts, 6061 alloy, 30.9mm, double-bolt micro-adjust
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.41 mm | 1.38 mm | 1.35 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 673 mm | 706 mm | 726 mm | 746 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 95 mm | 96 mm | 96 mm | 96 mm |
| Stack | 582 mm | 592 mm | 601 mm | 610 mm |
| Reach | 391 mm | 420 mm | 437 mm | 453 mm |
| Top Tube Length | 570 mm | 602 mm | 621 mm | 640 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 533.4 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1115 mm | 1148 mm | 1168 mm | 1188 mm |
| Bottom Bracket Drop | 10 mm | 10 mm | 10 mm | 10 mm |
| Standover Height | 800 mm | 806 mm | 810 mm | 814 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Reveal 27.5 1.3 completes the Fuji Reveal model. Fuji launched 40 bikes of this model so far. Take a sneak peek at all Fuji Reveal bikes models from 2016, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Trail bikes average weight
The average weight for Trail bikes is 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 14.72 kg (32.45 lbs), Fuji bike is considerably heavier than average. To sum up, it’s 13.41% heavier than the average weight of Trail bikes.
Reveal 27.5 1.3 components
Fork
The SunTour EPIXON is included from the factory. It has a travel distance of 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
The fork on this bike is made out of aluminum, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
As for the wheels, Fuji Reveal 27.5 1.3 2016, has a 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Fuji Reveal 27.5 1.3 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
