Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 130mm -
Fork RockShox Revelation RC
-
Groupset X0, X7 -
Suspension Full -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
A6-SL alloy, custom-butted, semi-integrated tapered headset w/ 1.5" lower bearing, hydroformed top and down tube, water bottle mount
Suspension Fork
RockShox Revelation 29 RLT Dual Air w/ remote lockout w/ tapered alloy steerer w/ 15mm thru axle, 130mm travel
Rear Shock
RockShox Monarch RT3
Drivetrain
Rear Derailleur
SRAM XO, 10-speed
Front Derailleur
SRAM X7
Shift Levers
SRAM X9 trigger, 10-speed
Cassette
SRAM 1070, 11-36T, 10-speed
Crank
SRAM X9 w/ integrated spindle, 36/22T
Bottom Bracket
SRAM press-fit GXP MTB
Chain
KMC X10, 10-speed
Pedals
N/A
Wheels
Rims
Sun Charger Expert 29er 15mm thru front / 142x12 rear, 6-bolt
Tires
Schwalbe Nobby Nic, tubless ready, 29" x 2.35" folding, 67 tpi
Brakes
Brakes
Avid Elixer 5, hydraulic disc, 180mm/180mm rotor
Brake Levers
Avid Elixer 5 w/ MatchMaker
Cockpit
Stem
Oval M713, 3D-forged alloy, 31.8mm clamp diameter, 6° rise
Handlebar
Oval M650, alloy riser bar, 9° sweep, 31.8mm diameter, 710mm wide, +/- 5mm rise
Headset
FSA 1 1/8" - 1.5", sealed cartridge bearings
Seat
Saddle
Oval M600 w/ hollow CrMo rails
Seatpost
Oval M750, alloy double-bolt micro-adjust, 31.6mm x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD | MD/LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.43 mm | 1.36 mm | 1.29 mm |
| Bottom Bracket Height | 355 mm | 355 mm | 355 mm | 355 mm |
| Front Center | 647 mm | 688 mm | 710 mm | 733 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 99 mm | 99 mm | 99 mm | 99 mm |
| Stack | 597 mm | 597 mm | 597 mm | 597 mm |
| Reach | 376.8 mm | 418.2 mm | 440.2 mm | 463.2 mm |
| Top Tube Length | 546.6 mm | 588 mm | 613 mm | 633 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 381 mm | 432 mm | 482 mm | 533 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 125 mm | 125 mm | 125 mm | 125 mm |
| Chainstay Length | 453 mm | 453 mm | 453 mm | 453 mm |
| Wheelbase | 1098 mm | 1140 mm | 1162 mm | 1185 mm |
| Bottom Bracket Drop | 19 mm | 19 mm | 19 mm | 19 mm |
| Standover Height | 812 mm | 813 mm | 815 mm | 815 mm |
| Wheels | 29" | 29" | 29" | 29" |
About this model

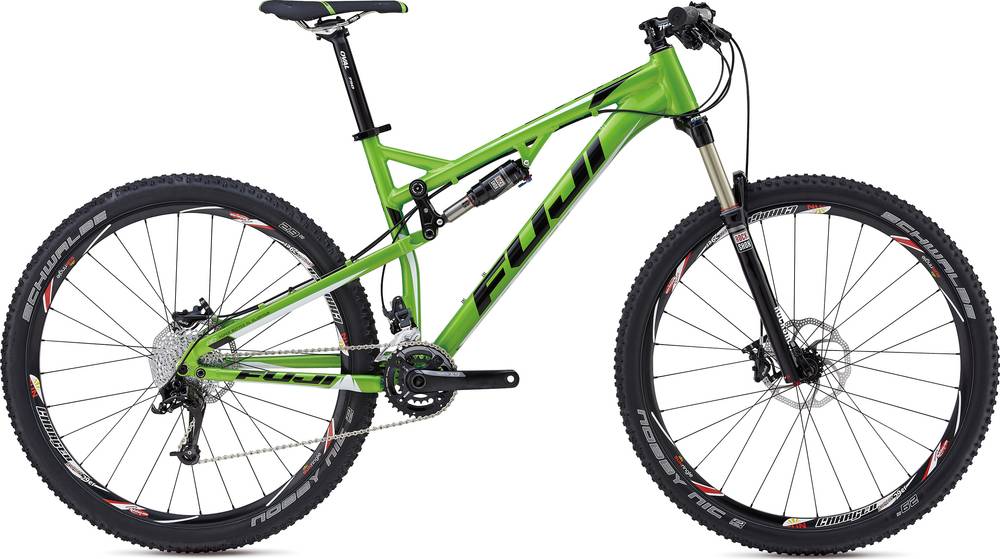

Reveal 29 1.1 belongs to the Fuji Reveal model. 40 bikes variations carry this model name so far. Check out the entire range from 2014 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Average weight for Trail bikes
The average weight for Trail bikes is 12.98 kg (28.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Fuji Reveal 29 1.1 it’s weighing 13.15 kg (28.99 lbs). At this weight, is slightly heavier than average. In conclusion, the average Trail bike weighs 1.31% less than Reveal 29 1.1.
Reveal 29 1.1 components
Fork
The fork installed on this bike is the RockShox Revelation RC model. The travel on this model is 130mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
When it comes to the fork, this bike has an aluminum one, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
The wheels on Reveal 29 1.1 are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Fuji Reveal 29 1.1 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
