Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 130mm -
Fork RockShox Sektor
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
A6-SL alloy, custom-butted, semi-integrated tapered headset w/ 1.5" lower bearing, hydroformed top and down tube, water bottle mount
Suspension Fork
RockShox Sektor 29 RL Solo Air w/ remote lockout w/ tapered alloy steerer w/ 15mm thru axle, 130mm travel
Rear Shock
RockShox Monarch RL
Drivetrain
Rear Derailleur
Shimano Deore XT, M786 SGS Shadow Plus top normal, 10-speed
Front Derailleur
Shimano SLX, M676
Shift Levers
Shimano SLX, M670 Rapid Fire, 20/30-speed
Cassette
Shimano Deore HG62, 11-36T, 10-speed
Crank
Shimano SLX, M675 hollow Tech II w/ integrated spindle, 38/24T
Bottom Bracket
Shimano BB91 press-fit
Chain
KMC X10, 10-speed
Pedals
N/A
Wheels
Rims
Shimano SLX M678 32H Center Lock disc 32H hubs, Sun Inferno 25 rims
Tires
Schwalbe Nobby Nic, tubless ready, 29" x 2.35" folding, 67 tpi
Brakes
Brakes
Shimano SLX M675, hydraulic disc, 180/180mm rotor
Brake Levers
Shimano SLX M675 hydraulic disc w/ Inspec
Cockpit
Stem
Oval M713, 3D-forged alloy, 31.8mm clamp diameter, 6° rise
Handlebar
Oval M650, alloy riser bar, 9° sweep, 31.8mm diameter, 710mm wide, +/- 5mm rise
Headset
FSA 1 1/8" - 1.5", sealed cartridge bearings
Seat
Saddle
Oval M600 w/ hollow CrMo rails
Seatpost
Oval M750, alloy double-bolt micro-adjust, 31.6mm x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD | MD/LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.43 mm | 1.36 mm | 1.29 mm |
| Bottom Bracket Height | 355 mm | 355 mm | 355 mm | 355 mm |
| Front Center | 647 mm | 688 mm | 710 mm | 733 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 99 mm | 99 mm | 99 mm | 99 mm |
| Stack | 597 mm | 597 mm | 597 mm | 597 mm |
| Reach | 376.8 mm | 418.2 mm | 440.2 mm | 463.2 mm |
| Top Tube Length | 546.6 mm | 588 mm | 613 mm | 633 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 381 mm | 432 mm | 482 mm | 533 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 125 mm | 125 mm | 125 mm | 125 mm |
| Chainstay Length | 453 mm | 453 mm | 453 mm | 453 mm |
| Wheelbase | 1098 mm | 1140 mm | 1162 mm | 1185 mm |
| Bottom Bracket Drop | 19 mm | 19 mm | 19 mm | 19 mm |
| Standover Height | 812 mm | 813 mm | 815 mm | 815 mm |
| Wheels | 29" | 29" | 29" | 29" |
Model Overview

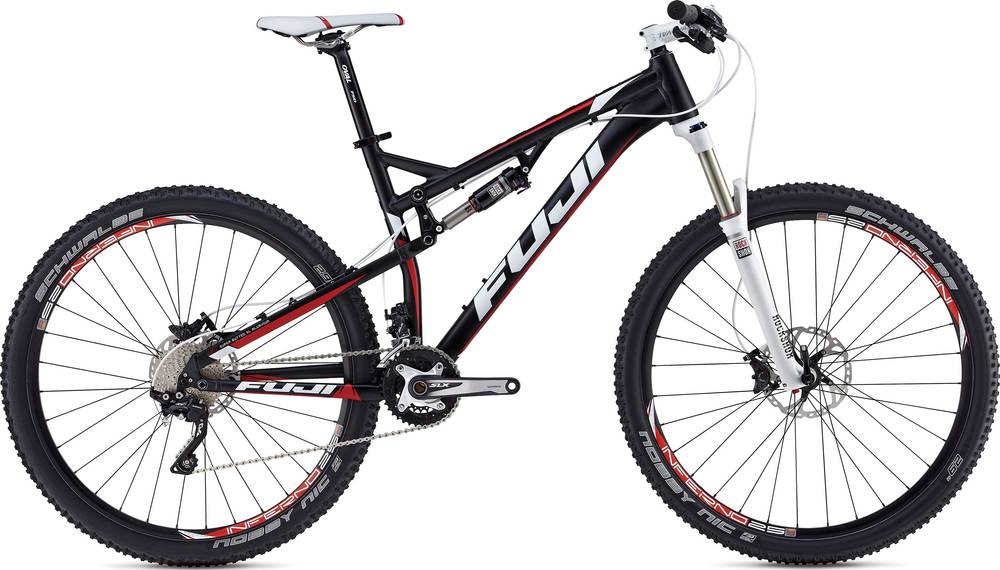

Reveal 29 1.3 is a Fuji Reveal model. 40 bikes variations carry this model name so far. You can get a glimpse at all models from 2014, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Trail bikes
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Reveal 29 1.3 weighs 13.48 kg (29.72 lbs) and is slightly heavier than the average. In conclusion, the average Trail bike weighs 3.85% less than Reveal 29 1.3.
Reveal 29 1.3 components
Fork
The Reveal 29 1.3 comes factory-installed with the RockShox Sektor fork. This has a travel range of 130mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
Reveal 29 1.3 has an aluminum fork, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels size
When leaving the production line, the Reveal 29 1.3 model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
