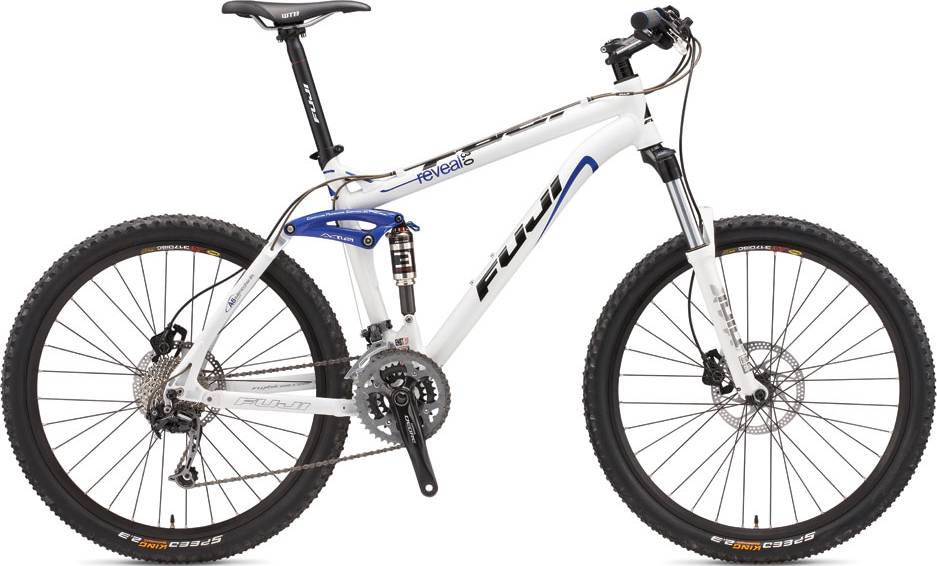

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 130mm -
Groupset Deore -
Suspension Full -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
A-6 Quaternary phase custom butted alloy, integrated head tube, top tube/seat tube gusset, down tube gusset, EHBT(Engineered Hollow Box Technology), water bottle mount
Suspension Fork
Rock Shox Tora 302 U-Turn w/80-130mm Travel
Rear Shock
SR Suntour Epicon LOD w/Lockout, compression and rebound adjust.
Drivetrain
Rear Derailleur
NEW Shimano Deore Shadow Top normal
Front Derailleur
NEW Shimano Deore, 34.9mm
Shift Levers
NEW Shimano Deore Rapid Fire, 27-speed
Cassette
Shimano HG-50, 11-34T 9-speed
Crank
NEW Shimano Deore w/Integrated spindle, 22/32/44T
Bottom Bracket
Shimano Exterior Bearing System
Chain
KMC HG-73
Pedals
none
Wheels
Front Hub
Shimano HB-M495 Sealed Bearing CenterLock, 32H
Rear Hub
Shimano FH-M495 Sealed Bearing CenterLock, 32H
Rims
WTB Speed Disc AM Double Wall
Spokes
14G Stainless Steel
Tires
Continental Speed King, 26 X 2.3"
Brakes
Brakes
Shimano BR-M486 Hydraulic Disc, 180mm Centerlock rotor
Brake Levers
Shimano BL-M486 Forged AL
Cockpit
Stem
Fuji CGC Forged AL 1 1/8"
Handlebar
Fuji CGC Alloy 15mm Riser
Headset
VP A-42E 1 1/8" Press Fit Integrated, 30mm spacers
Seat
Saddle
WTB Silverado Comp
Seatpost
Fuji CGC Forged Al, 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Bottom Bracket Height | 322.8 mm | 322.8 mm | 322.8 mm |
| Front Center | 657 mm | 682 mm | 703 mm |
| Rake | 39 mm | 39 mm | 39 mm |
| Top Tube Length | 582 mm | 607 mm | 627 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 431 mm | 482 mm | 533 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 125 mm | 130 mm | 140 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1088 mm | 1113 mm | 1134 mm |
| Bottom Bracket Drop | 11 mm | 11 mm | 11 mm |
| Standover Height | 783 mm | 799 mm | 821 mm |
| Wheels | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
REVEAL 3.0 is part of the Fuji Reveal model. Fuji launched 40 bikes of this model so far. Check out the entire range from 2010 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Average weight for Trail bikes
If we make a quick analysis of the average weight of a Trail bike, we get 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
a bit heavier than average, REVEAL 3.0 has a weight of 14.06 kg (31 lbs). In conclusion, the average Trail bike weighs 8.32% less than REVEAL 3.0.
REVEAL 3.0 components
Wheels
As for the wheels, Fuji REVEAL 3.0 2010, has a 26″ aluminum model. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Fuji REVEAL 3.0 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
This bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, it won’t be difficult to find the right one for you.
