Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A6-SL custom-butted alloy, integrated 1 1/2" lower head tube, oversized 34.9mm seat tube & PIIS BB86 shell, double water bottle mounts
Suspension Fork
FC-440 carbon w/ tapered carbon steerer w/ alloy dropout
Drivetrain
Rear Derailleur
Shimano Tiagra, 10-speed
Front Derailleur
Shimano Tiagra, braze-on mount
Shift Levers
Shimano Tiagra, STI, 10-speed
Cassette
SunRace, 11-28T, 10-speed
Crank
Oval Concepts 520, forged 6066 arms, 52/36T
Bottom Bracket
Oval Concepts, BB86 press-fit
Chain
KMC X10, 10-speed
Pedals
N/A
Wheels
Rims
Oval 327 aero alloy clincher, 20 / 24h
Tires
Vittoria Zaffiro Pro Slick, 700 x 23, 60tpi, folding
Brakes
Brakes
Tektro R540 forged-alloy dual pivot w/ cartridge pads
Brake Levers
Shimano Tiagra, STI
Cockpit
Stem
Oval Concepts 313, 6061 3D-forged alloy, 31.8mm, +/- 7°
Handlebar
Oval Concepts 310, butted 6061 alloy, 31.8mm
Headset
FSA, 1 1/8" upper - 1 1/2" lower, integrated
Seat
Saddle
Oval Concepts R300 w/ steel rails
Seatpost
Oval Concepts 300, 3D-forged 6061 alloy, 27.2mm, double-bolt micro-adjust
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | SM/MD | MD | MD/LG | LG | XL | XXL |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.37 mm | 1.36 mm | 1.41 mm | 1.45 mm | 1.45 mm | 1.44 mm | 1.45 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 582 mm | 584 mm | 597 mm | 580 mm | 586 mm | 610 mm | 629 mm | 644 mm |
| Rake | 52 mm | 52 mm | 52 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 64 mm | 44 mm | 60 mm | 57 mm | 61 mm | 57 mm | 56 mm | 57 mm |
| Stack | 495 mm | 507 mm | 516 mm | 532 mm | 552 mm | 571 mm | 590 mm | 609 mm |
| Reach | 365 mm | 369 mm | 379 mm | 377 mm | 381 mm | 395 mm | 409 mm | 419 mm |
| Top Tube Length | 497 mm | 507 mm | 522 mm | 537 mm | 552 mm | 572 mm | 592 mm | 607 mm |
| Seat Tube Angle | 75.5 ° | 75.23 ° | 75 ° | 73.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm | 610 mm | 610 mm |
| Head Tube Angle | 70.75 ° | 72.5 ° | 71.5 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm | 160 mm | 180 mm | 200 mm | 220 mm |
| Chainstay Length | 397 mm | 397 mm | 397 mm | 397 mm | 397 mm | 397 mm | 397 mm | 397 mm |
| Wheelbase | 969 mm | 971 mm | 984 mm | 967 mm | 973 mm | 997 mm | 1017 mm | 1032 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 720 mm | 742 mm | 762 mm | 778 mm | 799 mm | 818 mm | 843 mm | 867 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

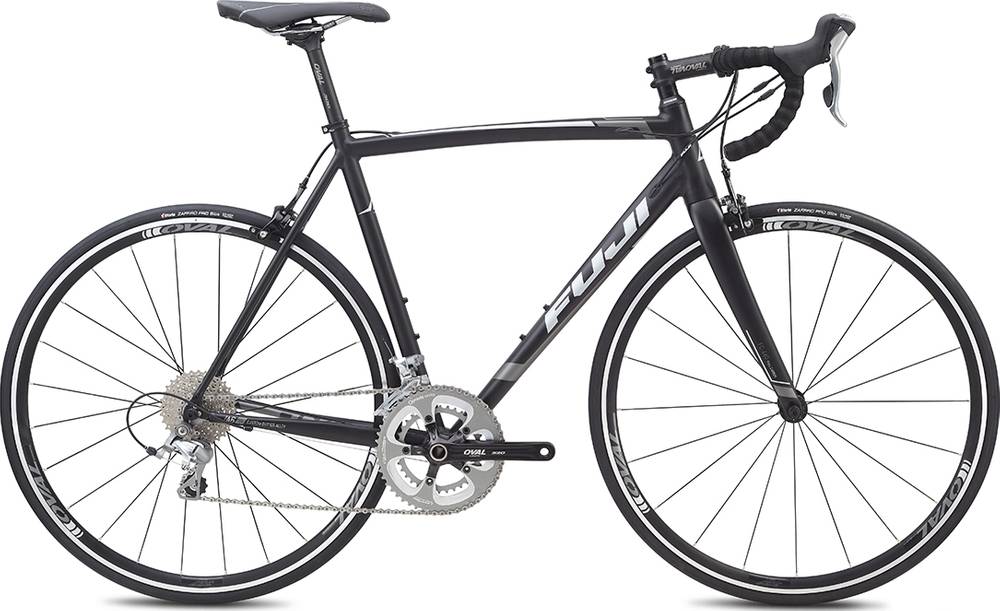

Roubaix 1.5 is a Fuji Roubaix model. Fuji launched 76 bikes of this model so far. You can get a glimpse at all models from 2015, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Race bikes average price
According to our math, the average price for a trustworthy Race bike is 3350$. However, you could also get a good Race bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Race bikes average weight
The average weight for Race bikes is 6.82 kg (15.04 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Fuji Roubaix 1.5 it’s weighing 8.56 kg (18.87 lbs). At this weight, is much heavier than average. To sum up, it’s 25.51% heavier than the average weight of Race bikes.
Overview of components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When leaving the production line, the Roubaix 1.5 model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Fuji Roubaix 1.5 is equipped with Rim brakes. Rim brakes deliver an average performance overall. However, they have problems in wet conditions.
