Fuji Roubaix 2006

2006 Road
Open compare Use advisor

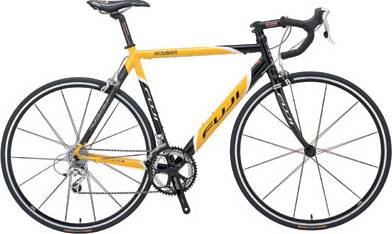

Fuji Roubaix 2006

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Aluminum
  • Wheels 700c
  • Groupset 105, Tiagra
  • Suspension Rigid
  • Drivetrain 3 × 9
  • Brakes Rim
Sizing

Recommended size guide.

  • 49cm

    155cm - 163cm

  • 52cm

    161cm - 169cm

  • 54cm

    166cm - 175cm

  • 56cm

    172cm - 181cm

  • 58cm

    178cm - 186cm

  • 61cm

    183cm - 191cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

Fuji Altair 2 custom butted 7000 series aluminum with PowerDiamond down tube, Integrated head tube, Double water bottle mounts

Suspension Fork

FC-990 Fuji Bonded Carbon Integrated w/ 1 1/8" Cro-Mo Steerer

Drivetrain

Rear Derailleur

Shimano 105

Front Derailleur

Shimano Tiagra, 31.8mm for triple

Shift Levers

Shimano Tiagra shifter/brake, 27-speed Flight Deck compatible

Cassette

SRAM PG-950, 12-26T 9-speed

Crank

NEW TruVativ Elita GXP Triple w/Integrated spindle, 30/42/52T (Alloy Outer Ring)

Bottom Bracket

Truvativ GXP Exterior Bearing System

Chain

KMC HG-73

Pedals

none

Wheels

Rims

Formula CXR-330

Tires

Continental UltraSport, 700 x 23c

Brakes

Brakes

Tekro 423AG Forged, Dual Pivot

Brake Levers

Shimano Tiagra Shifter/Brake, Flight Deck compatible

Cockpit

Stem

Fuji Comp AL forged , +/-10 degree

Handlebar

Fuji UltraLite 6061 Double Butted, 31.8mm w/Anatomical drops

Headset

V.P. 1 1/8" Integrated Road, with convex hollow alloy spacer

Seat

Saddle

Fuji UltraLite Racing

Seatpost

Fuji PRO Forged Alloy, 300mm

Fit data

Geometry

Numbers for sizing and ride feel.

Size49cm52cm54cm56cm58cm61cm
Bottom Bracket Height
281 mm281 mm281 mm281 mm281 mm281 mm
Front Center
577 mm583 mm576 mm586 mm595 mm600 mm
Rake
50 mm50 mm45 mm45 mm45 mm40 mm
Top Tube Length
520 mm535 mm555 mm565 mm575 mm595 mm
Seat Tube Angle
73 °74 °73 °73 °73 °72.5 °
Seat Tube Length
490 mm520 mm540 mm560 mm580 mm610 mm
Head Tube Angle
72 °72 °73.5 °73.5 °73.5 °73.5 °
Head Tube Length
115 mm115 mm129 mm144 mm164 mm189 mm
Chainstay Length
415 mm415 mm415 mm415 mm415 mm415 mm
Wheelbase
982 mm988 mm980 mm990 mm1000 mm1005 mm
Bottom Bracket Drop
69 mm69 mm69 mm69 mm69 mm69 mm
Standover Height
757 mm770 mm782 mm798 mm818 mm845 mm
Wheels700700700700700700
Rider Min Height155 cm161 cm166 cm172 cm178 cm183 cm
Rider Max Height163 cm169 cm175 cm181 cm186 cm191 cm

About this model

Roubaix is part of the Fuji Roubaix model. Fuji launched 76 bikes of this model so far. Take a sneak peek at all Fuji Roubaix bikes models from 2006, by clicking here.

Safety

When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.

Average price for Race bikes

If you want to purchase a solid Race bike, it is important to know that the average cost is 3350$. However, even if your budget is less than the average, you might still be able to get a top-quality Race bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.

Roubaix components

Fork material

The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.

Wheels size

The wheels on Roubaix are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.

Brakes

We ride faster and faster, so a good braking system is essential on a bike nowadays. The Roubaix comes with Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, you could spend a little extra and get a bike that has hydraulic brakes.

Sizes

Roubaix comes in 6 sizes, that range from 155 cm – 191 cm (5.09 ft – 6.27 ft). In conclusion, it won’t take much to find one that’s right for you.
