Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset 105, Tiagra -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji Altair 2 custom butted aluminum with PowerDiamond down tube, Integrated head tube, Double water bottle mounts
Suspension Fork
FC-770 Fuji Bonded Carbon Integrated w/ 1 1/8" Alloy Steerer
Drivetrain
Rear Derailleur
Shimano 105
Front Derailleur
Shimano Tiagra, 31.8mm
Shift Levers
Shimano Tiagra shifter/brake, 18-speed Flight Deck compatible
Cassette
Shimano HG-50, 11-25T 9-speed
Crank
FSA Gossamer Compact MegaExo w/ Integrated spindle, 34/50T 7075 AL outer rings
Bottom Bracket
FSA MegaExo Exterior Bearing System
Chain
KMC HG-73
Pedals
none
Wheels
Rims
Alex ALX- 200, 700c clincher
Tires
Continental UltraSport, 700 x 23c
Brakes
Brakes
Shimano Tiagra dual pivot
Brake Levers
Shimano Tiagra STI
Cockpit
Stem
Fuji PRO Alloy 3D forged, +/-7 degree
Handlebar
Fuji UltraLite 6061 Double Butted, 31.8mm w/Anatomical drops
Headset
Tange IS-24 1 1/8" Integrated Road
Seat
Saddle
Fuji UltraLite Racing
Seatpost
Fuji PRO Forged Alloy, 300mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm | 64cm |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.37 mm | 1.35 mm | 1.38 mm | 1.4 mm | 1.43 mm | 1.48 mm | 1.53 mm |
| Bottom Bracket Height | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm |
| Front Center | 576 mm | 577 mm | 582 mm | 576 mm | 586 mm | 595 mm | 600 mm | 619 mm |
| Rake | 45 mm | 50 mm | 50 mm | 45 mm | 45 mm | 45 mm | 40 mm | 40 mm |
| Trail | 63.4 mm | 58 mm | 56.2 mm | 53.8 mm | 53.6 mm | 54.4 mm | 55.9 mm | 55.8 mm |
| Stack | 506 mm | 504.9 mm | 504.9 mm | 524.8 mm | 539 mm | 558 mm | 585.4 mm | 619 mm |
| Reach | 371 mm | 367.8 mm | 373.7 mm | 379.5 mm | 385 mm | 389 mm | 395.8 mm | 405.3 mm |
| Top Tube Length | 502 mm | 507 mm | 522 mm | 542 mm | 552 mm | 562 mm | 582 mm | 602 mm |
| Seat Tube Angle | 76 ° | 75 ° | 74 ° | 73 ° | 73 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm | 610 mm | 640 mm |
| Head Tube Angle | 72 ° | 72 ° | 72 ° | 73.5 ° | 73.5 ° | 73.5 ° | 74 ° | 74 ° |
| Head Tube Length | 115 mm | 115 mm | 115 mm | 129 mm | 144 mm | 164 mm | 189 mm | 224 mm |
| Chainstay Length | 402 mm | 402 mm | 402 mm | 402 mm | 402 mm | 402 mm | 402 mm | 402 mm |
| Wheelbase | 968 mm | 968 mm | 974 mm | 967 mm | 977 mm | 987 mm | 992 mm | 1011 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Standover Height | 724 mm | 738 mm | 751 mm | 769 mm | 785 mm | 805 mm | 832 mm | 863 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

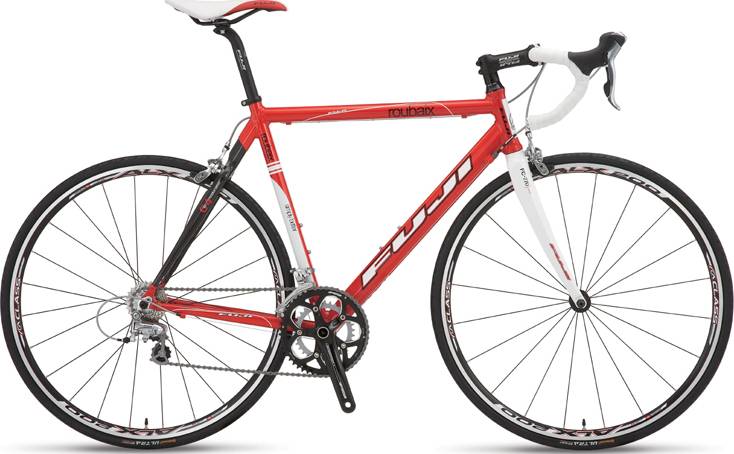

Roubaix (Europe) is a Fuji Roubaix model. Fuji launched 76 bikes of this model so far. Take a sneak peek at all Fuji Roubaix bikes models from 2009, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Race bikes
Our math shows that the average cost of a dependable Race bike is 3350$. However, even if your budget is less than the average, you might still be able to get a top-quality Race bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Average weight for Race bikes
On a deeper look, we notice that the average weight of a Race bike is 6.82 kg (15.04 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Fuji Roubaix (Europe) it’s weighing 8.75 kg (19.29 lbs). At this weight, is much heavier than average. In other words, this model is 28.3% heavier than the average Race bike.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When leaving the production line, the Roubaix (Europe) model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Roubaix (Europe) has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, you could spend a little extra and get a bike that has hydraulic brakes.
