Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Ultegra, 105 -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Sizing
Recommended size guide.
49cm
155cm - 163cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
61cm
183cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji Altair 2 custom butted 7000 series aluminum with PowerDiamond down tube, Integrated head tube, Double water bottle mounts
Suspension Fork
FC-770 Fuji Bonded Carbon Integrated w/ 1 1/8" Alloy Steerer
Drivetrain
Rear Derailleur
Shimano ULTEGRA
Front Derailleur
NEW Shimano 105, 31.8mm
Shift Levers
NEW Shimano 105 shifter/brake, 20-Speed Flight Deck compatible
Cassette
New Shimano 105, 12-25T 10-speed
Crank
NEW TruVativ Elita GXP Compact, w/Integrated spindle 36/50T Alloy Rings
Bottom Bracket
Truvativ GXP Exterior Bearing System
Chain
NEW Shimano 105, 10sp
Pedals
none
Wheels
Rims
Alex A-Class ALX 220
Tires
Continental UltraSport, 700 x 23c
Brakes
Brakes
Tektro RX20 w/Cartridge pads
Brake Levers
NEW Shimano 105 Shifter/Brake, Flight Deck compatible
Cockpit
Stem
Fuji Comp AL forged , +/-10 degree
Handlebar
Fuji UltraLite 6061 Double Butted, 31.8mm w/Anatomical drops
Headset
V.P.1 1/8" Integrated Road, with convex hollow alloy spacer
Seat
Saddle
Fuji UltraLite Racing
Seatpost
Fuji PRO Forged Alloy, 300mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Bottom Bracket Height | 281 mm | 281 mm | 281 mm | 281 mm | 281 mm | 281 mm |
| Front Center | 577 mm | 583 mm | 576 mm | 586 mm | 595 mm | 600 mm |
| Rake | 50 mm | 50 mm | 45 mm | 45 mm | 45 mm | 40 mm |
| Top Tube Length | 520 mm | 535 mm | 555 mm | 565 mm | 575 mm | 595 mm |
| Seat Tube Angle | 73 ° | 74 ° | 73 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 72 ° | 72 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 115 mm | 115 mm | 129 mm | 144 mm | 164 mm | 189 mm |
| Chainstay Length | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm |
| Wheelbase | 982 mm | 988 mm | 980 mm | 990 mm | 1000 mm | 1005 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Standover Height | 757 mm | 770 mm | 782 mm | 798 mm | 818 mm | 845 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm |
| Rider Max Height | 163 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm |
About this model

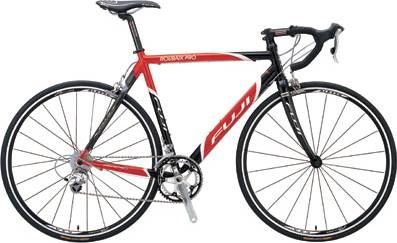

Roubaix Pro is a Fuji Roubaix model. Fuji launched 76 bikes of this model so far. Check out the entire range from 2006 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Race bikes
According to our math, the average price for a trustworthy Race bike is 3350$. However, even if your budget is less than the average, you might still be able to get a top-quality Race bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Roubaix Pro components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
The Roubaix Pro 2006 bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Fuji Roubaix Pro is equipped with Rim brakes. Rim brakes deliver an average performance overall. However, they are not nearly as effective as hydraulic brakes are.
Sizes
Fuji Roubaix Pro bike has 6 sizes, in the range of 155 cm – 191 cm (5.09 ft – 6.27 ft). In short, it won’t be difficult to find the right one for you.
