Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Travel Front 63mm -
Fork SunTour
-
Groupset Alivio, Acera -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A1-SL alloy
Suspension Fork
Suntour SF10 NEX4600 suspension fork w/ mechanical lockout, 63mm travel
Drivetrain
Rear Derailleur
Shimano Alivio
Front Derailleur
Shimano Acera
Shift Levers
Shimano EF65 EZ Fire integrated shifters
Cassette
Shimano, 11-34T 8-speed
Crank
Fuji forged alloy, 26/38/48T
Bottom Bracket
Sealed cartridge ST
Chain
KMC Z-72
Pedals
Fuji Comfort, kraton rubber, no-slip platform
Wheels
Rims
Fuji sealed alloy 36H QR hubs w/ Alex DC25 double wall alloy rims
Tires
Kenda K-935, 26x1.95
Brakes
Brakes
Promax V-brake
Brake Levers
Shimano EF65 EZ Fire integrated
Cockpit
Stem
Fuji alloy adjustable quill, 25.4
Handlebar
Fuji Comfort alloy
Headset
Fuji Leisure sealed, semi-integrated dust cap 1 1/8""
Seat
Saddle
Fuji DuraFlex Comfort Plus
Seatpost
Fuji suspension alloy, 300x27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | SM/MD |
|---|---|---|---|
| Bottom Bracket Height | 284.5 mm | 284.5 mm | 284.5 mm |
| Top Tube Length | 532.3 mm | 552.3 mm | 572.3 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 355.6 mm | 406.4 mm | 457.2 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 125 mm | 145 mm | 175 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1019 mm | 1040 mm | 1061 mm |
| Wheels | 26" | 26" | 26" |
About this model

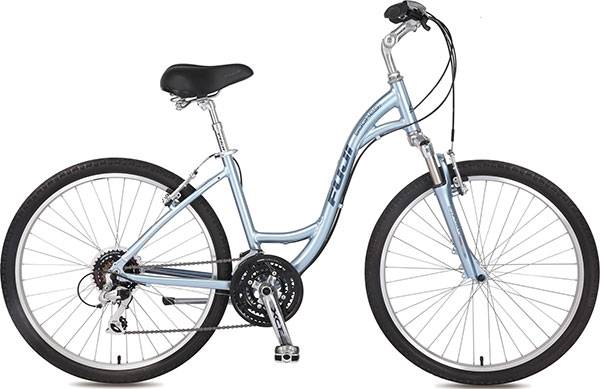

Sagres 1.0 LS belongs to the Fuji Sagres model. Fuji released 16 bikes variations of this model so far. Check out the entire range from 2012 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
General Urban bikes average price
Our math shows that the average cost of a dependable General Urban bike is 499$. However, even if your budget is less than the average, you might still be able to get a top-quality General Urban bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork
This bike has the SunTour fork installed. The fork’s travel is 63mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The wheels on Sagres 1.0 LS are the 26″ aluminum type. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Fuji Sagres 1.0 LS has Rim brakes installed. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, you could spend a little extra and get a bike that has hydraulic brakes.
