Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Groupset 105, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL custom butted alloy w/ 1-1/8" semi-integrated threadless headtube, internal shift cable routing
Suspension Fork
FC-770 carbon blade, alloy steerer w/ alloy dropouts, post disc mounts
Drivetrain
Rear Derailleur
Shimano 105, 11-speed
Front Derailleur
Shimano 105
Shift Levers
Shimano RS-700, Rapid Fire, 11-speed
Cassette
Shimano 105, 11-28T, 11-speed
Crank
Shimano R500, 50/34T
Bottom Bracket
Shimano, external, sealed bearing
Chain
KMC X11 w/ MissingLink, 11-speed
Pedals
Alloy platform
Wheels
Rims
Vera Corsa DPD22 double wall rims, 28 / 32h, alloy disc hubs, 14g stainless spokes
Tires
Vera Helios, 700 x 28c, 30tpi w/ Phalanx flat protection
Brakes
Brakes
Tektro Hydraulic disc, 160mm/160mm rotor
Brake Levers
Tektro Hydraulic disc, 2 finger
Cockpit
Stem
Oval Concepts 313, 6061 3D-forged alloy, 7° rise, 31.8mm
Handlebar
Oval Concepts 250, 6061 alloy, flat top, 5mm rise, 9° sweep, 31.8mm
Headset
FSA, 1-1/8" semi-integrated threadless
Seat
Saddle
Oval Concepts Woman's P300 w/ steel rails
Seatpost
Oval Concepts 300, 3D-forged 6061 alloy, 27.2mm, double-bolt micro-adjust
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.24 mm | 1.35 mm | 1.32 mm |
| Front Center | 615 mm | 615 mm | 628 mm |
| Rake | 45 mm | 45 mm | 45 mm |
| Trail | 42 mm | 44 mm | 44 mm |
| Stack | 473 mm | 504 mm | 508 mm |
| Reach | 382 mm | 373 mm | 384 mm |
| Top Tube Length | 517 mm | 517 mm | 547 mm |
| Seat Tube Angle | 75 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 432 mm | 483 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 130 mm | 150 mm | 160 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1044 mm | 1044 mm | 1057 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 762 mm | 794 mm | 798 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

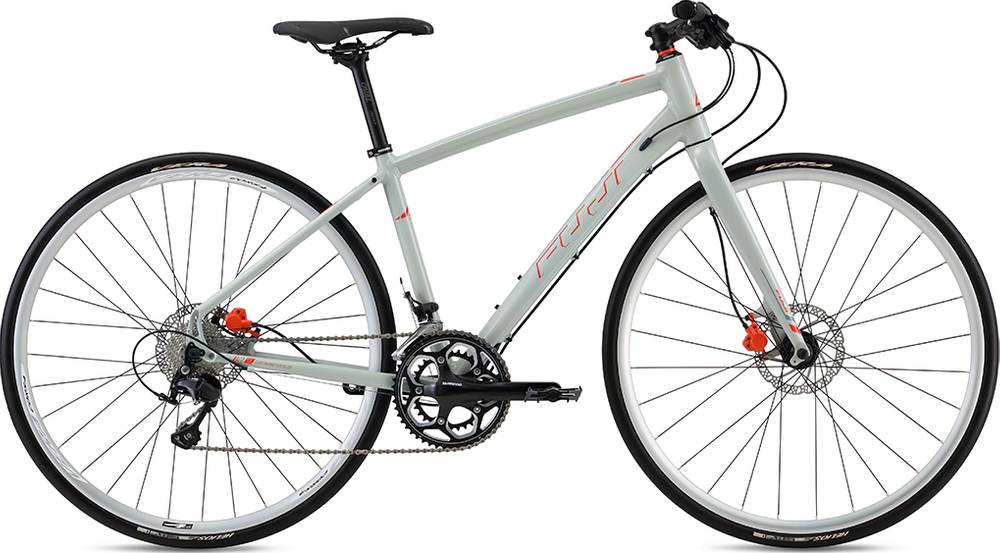

Silhouette 1.1 Disc belongs to the Fuji Silhouette model. There are 18 bikes that carry this model name. You can get a glimpse at all models from 2016, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for General Urban bikes
According to our calculations, the average cost of a General Urban bike that is reliable is 499$. However, even if your budget is less than the average, you might still be able to get a top-quality General Urban bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
General Urban bikes average weight
General Urban bikes have an average weight of 13.11 kg (28.9 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Silhouette 1.1 Disc weighs 10.7 kg (23.59 lbs) and is much lighter than the average. To sum up, it’s 22.52% lighter than the average weight of General Urban bikes.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
As for the wheels, Fuji Silhouette 1.1 Disc 2016, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
