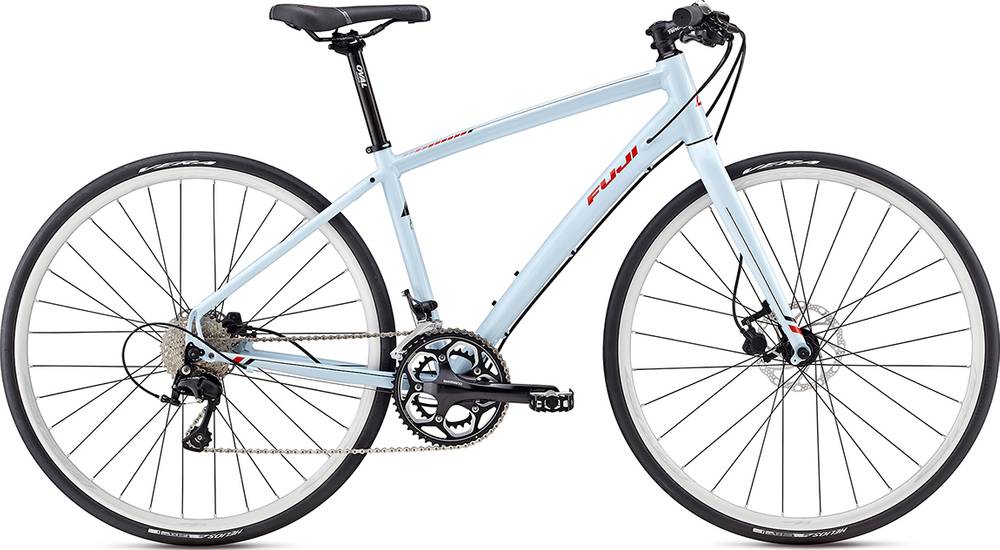

Fuji Silhouette 1.1 Disc 2017
2017 Urban
Estimate price |
999$
Weight | 10.15 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Groupset 105, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL custom butted alloy w/ 1-1/8" semi-integrated threadless headtube, internal shift cable routing, post disc mount, forged dropouts and replaceable hanger
Suspension Fork
FC-440 carbon w/ alloy dropouts, flat disc mounts
Drivetrain
Rear Derailleur
Shimano 105, 11-speed
Front Derailleur
Shimano 105
Shift Levers
Shimano RS-700, Rapid Fire, 11-speed
Cassette
Shimano 105, 11-32T, 11-speed
Crank
Shimano RS500, 50/34T
Bottom Bracket
Shimano, external, sealed bearing
Chain
KMC X11 w/ MissingLink, 11-speed
Pedals
Alloy platform
Wheels
Rims
Vera Corsa DPD22 double wall rims, 28 / 32h, alloy disc hubs, 14g stainless spokes
Tires
Vera Helios, 700 x 28c, 30tpi w/ Phalanx flat protection
Brakes
Brakes
Tektro Auriga Hydraulic disc, 160mm/140mm rotor
Brake Levers
Tektro Hydraulic disc, 2-finger
Cockpit
Stem
Oval Concepts 313, 3D-forged 6061 stem body, +/-7°
Handlebar
Oval Concepts 250 riser bar, 6061 alloy, +/- 5mm rise, 9° sweep, 31.8mm clamp
Grips
Oval Concepts 620, ergo shape, single lock on, single density Kraton
Headset
FSA, 1-1/8" semi-integrated threadless
Seat
Saddle
Oval Concepts 300 Pavement Women's, steel rail
Seatpost
Oval Concepts, 6061 alloy, 27.2mm diameter
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.24 mm | 1.35 mm | 1.32 mm |
| Front Center | 615 mm | 615 mm | 628 mm |
| Rake | 45 mm | 45 mm | 45 mm |
| Trail | 42 mm | 44 mm | 44 mm |
| Stack | 473 mm | 504 mm | 508 mm |
| Reach | 382 mm | 373 mm | 384 mm |
| Top Tube Length | 517 mm | 517 mm | 547 mm |
| Seat Tube Angle | 75 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 432 mm | 483 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 130 mm | 150 mm | 160 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1044 mm | 1044 mm | 1057 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 762 mm | 794 mm | 798 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
Silhouette 1.1 Disc belongs to the Fuji Silhouette model. There are 18 bikes that carry this model name. You can get a glimpse at all models from 2017, by clicking on this link.
Model range prices
The most economical model, the Fuji Silhouette 1.9 Disc 2017 has a starting price of 489$. Fuji Silhouette 1.1 Disc 2017 on the other hand is the most expensive at 999$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for General Urban bikes
Our math shows that the average cost of a dependable General Urban bike is 499$. However, you could also get a good General Urban bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2017 for 999$. Doing a quick comparison, we notice that Silhouette 1.1 Disc price is 100.2% higher than the average cost of a General Urban bike.
Average weight for General Urban bikes
On a deeper look, we notice that the average weight of a General Urban bike is 13.11 kg (28.9 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 10.15 kg (22.38 lbs), the Silhouette 1.1 Disc model is much lighter than average. In conclusion, the average General Urban bike weighs 29.16% more than Silhouette 1.1 Disc.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Silhouette 1.1 Disc components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When it comes to wheels, the Silhouette 1.1 Disc bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Silhouette 1.1 Disc comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Fuji Silhouette 1.1 Disc bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
