Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Groupset Sora -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL custom butted alloy w/ 1 1/8" semi-integrated headtube, internal shift cable routing
Suspension Fork
FC-770 carbon blade, alloy steerer w/ alloy dropouts
Drivetrain
Rear Derailleur
Shimano Sora, 9-speed
Front Derailleur
Shimano Sora
Shift Levers
Shimano Sora, Rapid Fire w/ optical gear display, 9-speed
Cassette
SRAM, PG-950, 11-32T, 9-speed
Crank
Shimano Sora,, Octalink, 50/34T
Bottom Bracket
Shimano Octalink, sealed cartridge
Chain
KMC X9 w/ MissingLink, 9-speed
Pedals
Alloy platform
Wheels
Rims
Vera Terra DPD22 rims, 32h, stainless eyelets, alloy disc hubs, stainless round spokes
Tires
Vera CityWide, 700 x 28c, 30tpi w/ Phalanx flat protection
Brakes
Brakes
Tektro Novela, mechanical disc, 160mm/140mm rotor
Brake Levers
Alloy, 2-finger
Cockpit
Stem
Oval Concepts 313, 6061 3D-forged alloy, 31.8mm, +/- 7°
Handlebar
Oval Concepts 200, 6061 alloy, 31.8mm, 5° sweep, 0mm rise
Headset
FSA, 1 1/8" semi-integrated, caged bearings
Seat
Saddle
Oval Concepts Woman's P300 w/ steel rails
Seatpost
Oval Concepts 300, 3D-forged 6061 alloy, 27.2mm, double-bolt micro-adjust
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM/MD | MD |
|---|---|---|---|
| Bottom Bracket Height | 290 mm | 290 mm | 290 mm |
| Top Tube Length | 529 mm | 536 mm | 551 mm |
| Seat Tube Angle | 75 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 432 mm | 483 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 130 mm | 150 mm | 160 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1036 mm | 1034 mm | 1048 mm |
| Standover Height | 762 mm | 794 mm | 798 mm |
| Wheels | 700 | 700 | 700 |
About this model

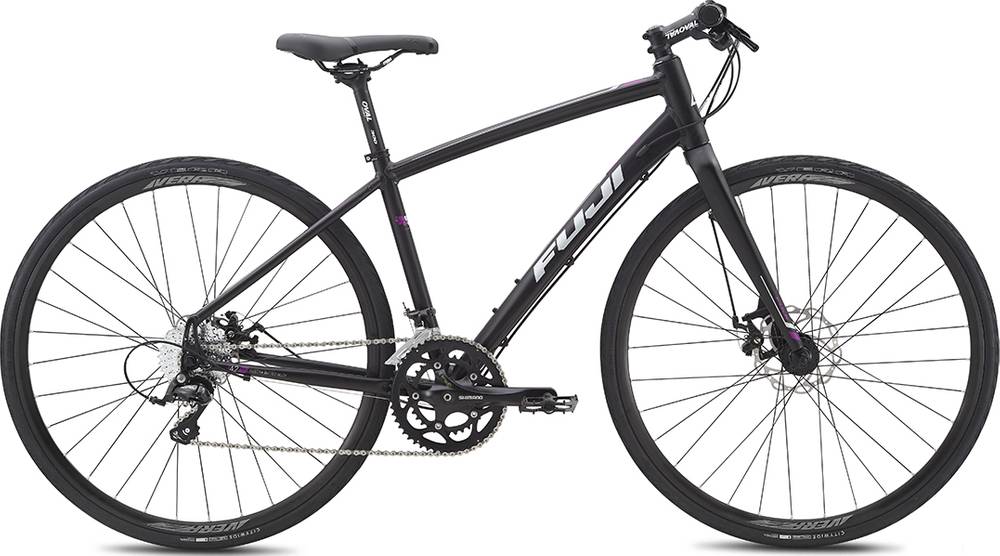

Silhouette 1.3 Disc is a Fuji Silhouette model. There are 18 bikes that carry this model name. Take a sneak peek at all Fuji Silhouette bikes models from 2015, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for General Urban bikes
Our math shows that the average cost of a dependable General Urban bike is 499$. However, even though the average price of a General Urban bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
General Urban bikes average weight
General Urban bikes have an average weight of 13.11 kg (28.9 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
much lighter than average, Silhouette 1.3 Disc has a weight of 11.13 kg (24.54 lbs). In other words, this model is 17.79% lighter than the average General Urban bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When it comes to wheels, the Silhouette 1.3 Disc bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Silhouette 1.3 Disc comes with Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
