Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Groupset Altus, Tourney -
Suspension Rigid -
Drivetrain 3 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL custom butted alloy w/ 1-1/8" semi-integrated threadless headtube, internal shift cable routing
Suspension Fork
Hi-Ten Steel, straight bladed w/ International disc mount w/ lowrider mounts
Drivetrain
Rear Derailleur
Shimano Altus, 8-speed
Front Derailleur
Shimano Altus
Shift Levers
Shimano EF51 Altus, EZ Fire 8-speed
Cassette
Shimano Altus, 11-32T, 8-speed
Crank
Shimano TY701, 48/38/28T w/ chainguard
Bottom Bracket
sealed cartridge
Chain
KMC HV700, 8-speed
Pedals
Resin platform
Wheels
Rims
Vera Corsa DPD17 double wall rims 32h, alloy disc hubs, 14g spokes
Tires
Vera CityWide, 700 x 32c, 30tpi w/ Phalanx flat protection
Brakes
Brakes
Tektro Mechanical disc, 160mm/160mm rotor
Brake Levers
Shimano EF51 Altus, 2-finger brake/shifter combo
Cockpit
Stem
Oval Concepts, alloy, 20° rise, 25.4mm
Handlebar
Oval Concepts, 6061 alloy, 18mm rise, 6° sweep, 25.4mm
Headset
FSA, 1-1/8" semi-integrated threadless
Seat
Saddle
Oval Concepts Woman's w/ steel rails
Seatpost
Oval Concepts, alloy, 27.2mm, double-bolt micro-adjust
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.24 mm | 1.35 mm | 1.32 mm |
| Front Center | 615 mm | 615 mm | 628 mm |
| Rake | 45 mm | 45 mm | 45 mm |
| Trail | 42 mm | 44 mm | 44 mm |
| Stack | 473 mm | 504 mm | 508 mm |
| Reach | 382 mm | 373 mm | 384 mm |
| Top Tube Length | 517 mm | 517 mm | 547 mm |
| Seat Tube Angle | 75 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 432 mm | 483 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 130 mm | 150 mm | 160 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1044 mm | 1044 mm | 1057 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 762 mm | 794 mm | 798 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

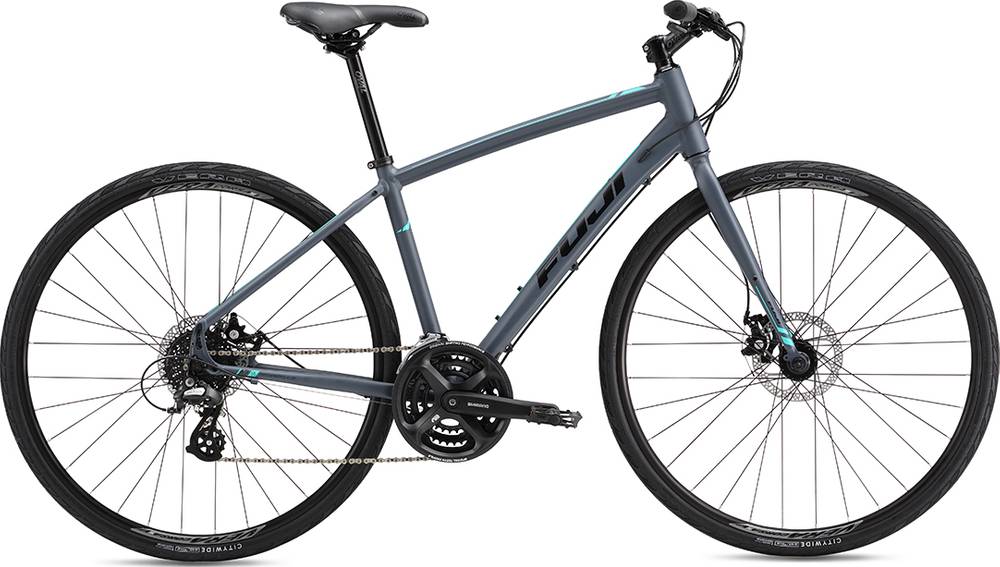

Silhouette 1.9 Disc completes the Fuji Silhouette model. There are 18 bikes that carry this model name. Take a sneak peek at all Fuji Silhouette bikes models from 2016, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for General Urban bikes
If you want to purchase a solid General Urban bike, it is important to know that the average cost is 499$. However, even though the average price of a General Urban bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Average weight for General Urban bikes
If we make a quick analysis of the average weight of a General Urban bike, we get 13.11 kg (28.9 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Fuji Silhouette 1.9 Disc it’s weighing 12.28 kg (27.07 lbs). At this weight, is a bit lighter than average. To sum up, it’s 6.76% lighter than the average weight of General Urban bikes.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Silhouette 1.9 Disc components
Fork material
The fork is made out of steel, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels
The Silhouette 1.9 Disc 2016 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Fuji Silhouette 1.9 Disc is equipped with Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
This bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
