Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Wheels 700c -
Suspension Rigid
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 47cm | 50cm | 53cm | 55cm | 58cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.35 mm | 1.39 mm | 1.43 mm | 1.42 mm | 1.34 mm |
| Bottom Bracket Height | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm |
| Front Center | 582 mm | 585 mm | 593 mm | 599 mm | 605 mm | 644 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 75.9 mm | 69.5 mm | 66.3 mm | 63.2 mm | 56.9 mm | 63.2 mm |
| Stack | 508 mm | 521 mm | 542.5 mm | 563 mm | 576 mm | 582 mm |
| Reach | 377 mm | 385 mm | 390.7 mm | 395 mm | 406 mm | 434 mm |
| Top Tube Length | 516 mm | 530.9 mm | 551 mm | 561.2 mm | 576 mm | 606 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 530 mm | 550 mm | 580 mm |
| Head Tube Angle | 70 ° | 71 ° | 71.5 ° | 72 ° | 73 ° | 72 ° |
| Head Tube Length | 110 mm | 120 mm | 140 mm | 160 mm | 170 mm | 180 mm |
| Chainstay Length | 411 mm | 411 mm | 411 mm | 411 mm | 411 mm | 411 mm |
| Wheelbase | 982 mm | 986 mm | 993 mm | 1000 mm | 1006 mm | 1045 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Standover Height | 720 mm | 740 mm | 764 mm | 789 mm | 804 mm | 823 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

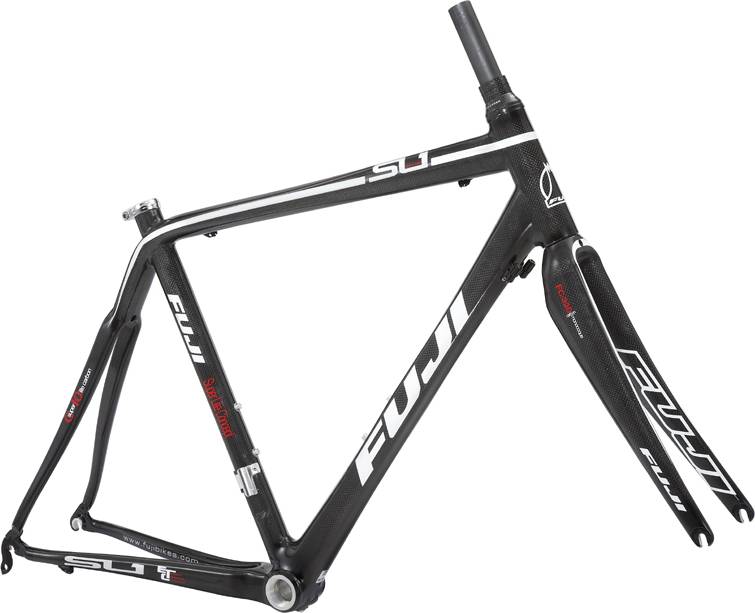

SL-1 Frameset is a Fuji Sl 1 model. There are 6 frames that carry this model name. You can get a glimpse at all models from 2009, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Race frames
According to our calculations, the average cost of a Race frame that is reliable is 2445$. However, even though the average price of a Race frame is lower, you might still be able to get a top-quality frame. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
Race frames average weight
On a deeper look, we notice that the average weight of a Race frame is 1.41 kg (3.11 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
SL-1 Frameset weighs 1.47 kg (3.24 lbs) and is slightly heavier than the average. In conclusion, the average Race frame weighs 4.26% less than SL-1 Frameset.
Overview of components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your frame. However, the price you have to pay for a carbon fork is considerably higher.
