Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 26" -
Travel Front 100mm -
Fork Fox Float 32
-
Groupset XT, SLX -
Suspension Hardtail -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C5 high-modulus carbon w/ internal shift cable routing, shaped oversized ride-tuned down tube, tapered 1 1/8" - 1.5" head tube
Suspension Fork
Fox 32 FLOAT Evolution CTD w/ remote lock out,15mm thru axle, tapered alloy steerer, 100mm travel, remote
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Deore XT, M781 SGS Shadow top normal, 10-speed
Front Derailleur
Shimano Deore SLX, M676D, 34.9mm
Shift Levers
Shimano Deore XT, M780 Rapid Fire, 20/30-speed w/ Inspec
Cassette
Shimano SLX HG81, 11-36T, 10-speed
Crank
Shimano Deore XT, M785 hollow Tech II w/ integrated spindle, 40/28T
Bottom Bracket
Shimano BB91 press-fit
Chain
KMC X10, 10-speed
Pedals
N/A
Wheels
Rims
Shimano Deore SLX M678 front / M675 rear, 32H Center Lock disc hubs, Sun Inferno 23 rims
Tires
Schwalbe Racing Ralph, 26" x 2.25" folding, 67 tpi
Brakes
Brakes
Shimano Deore XT M785, hydraulic disc, 180/160mm rotor
Brake Levers
Shimano Deore XT M785 hydraulic disc w/ Inspec
Cockpit
Stem
Oval M713, 3D-forged alloy, 31.8mm clamp diameter, 6° rise
Handlebar
Oval M600, alloy riser bar, 9° sweep, 31.8mm diameter, 710mm wide, 15mm rise
Headset
FSA 1 1/8" - 1.5", sealed cartridge bearings
Seat
Saddle
Oval M600 w/ hollow CrMo rails
Seatpost
Oval M750, alloy double-bolt micro-adjust, 31.6mm x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD | MD/LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.4 mm | 1.37 mm | 1.39 mm |
| Bottom Bracket Height | 318 mm | 318 mm | 318 mm | 318 mm |
| Front Center | 623 mm | 643 mm | 663 mm | 673 mm |
| Rake | 40 mm | 40 mm | 40 mm | 40 mm |
| Trail | 79 mm | 79 mm | 79 mm | 76 mm |
| Stack | 556.2 mm | 565.3 mm | 575.4 mm | 596.2 mm |
| Reach | 388 mm | 404.3 mm | 421.1 mm | 429 mm |
| Top Tube Length | 548 mm | 578 mm | 597.9 mm | 612 mm |
| Seat Tube Angle | 74 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 71 ° |
| Head Tube Length | 120 mm | 130 mm | 135 mm | 160 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 1043 mm | 1063 mm | 1084 mm | 1093 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 764 mm | 793 mm | 816 mm | 851 mm |
| Wheels | 26" | 26" | 26" | 26" |
Model Overview

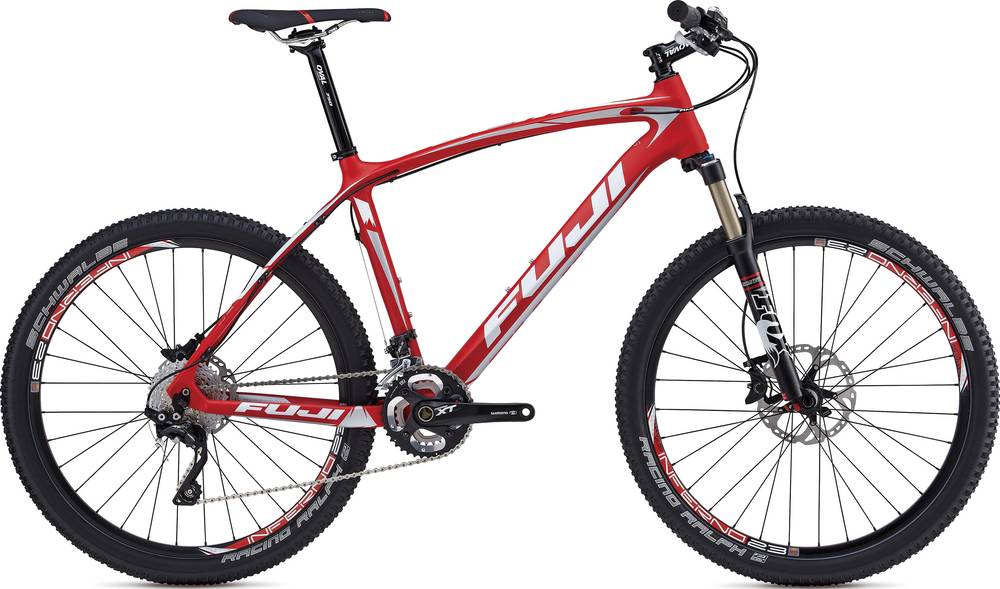

SLM 1.1 is a Fuji Slm model. 91 bikes variations carry this model name so far. Check out the entire range from 2014 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Average weight for Crosscountry bikes
Crosscountry bikes weigh an average of 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Fuji SLM 1.1 it’s weighing 10.8 kg (23.81 lbs). At this weight, is considerably lighter than average. In conclusion, the average Crosscountry bike weighs 14.81% more than SLM 1.1.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
Fuji SLM 1.1 2014 bike is equipped with the Fox Float 32 fork, and has 100mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
The fork on this bike is made out of aluminum, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels
When it comes to wheels, the SLM 1.1 bike is equipped with the 26″ aluminum model. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Fuji SLM 1.1 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
