Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 27.5" -
Travel Front 100mm -
Fork Fox Factory Float 32
-
Groupset XTR, Deore -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C15 super-light high-modulus carbon w/ internal shift cable routing, shaped oversized ride-tuned down tube, tapered 1 1/8" - 1.5" head tube, PF30 bottom bracket
Suspension Fork
Fox 32 FLOAT 27.5 Factory Fit CTD w/ Kashima coating, remote lockout, tapered alloy steerer, 15mm thru axle, 100mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano XTR shadow plus, 11-speed
Front Derailleur
N/A
Shift Levers
Shimano XTR, Rapid Fire w/ Ispec, 11-speed
Cassette
Shimano XTR, 11-40T, 11-speed
Crank
Oval Concepts M610, hollow forged w/ M35 integrated spindle, 32T
Bottom Bracket
Praxis M35
Chain
Shimano XTR, 11-speed
Pedals
N/A
Wheels
Rims
Sun Ringle Black Flag Pro SL 15mm thru-axle front / 142x12mm rear, 6-bolt hubs, 28h
Tires
Schwalbe Thunder Burt, 27.5" x 2.1" 67tpi, folding, tubless ready
Brakes
Brakes
Shimano XTR, hydraulic disc, 180/160mm rotor
Brake Levers
Shimano XTR, hydraulic disc
Cockpit
Stem
Oval Concepts 913, carbon matrix, 31.8mm clamp diameter, 6° rise
Handlebar
Oval Concepts 815, carbon, riser, 31.8mm, 9° sweep, 15mm rise, 680 / 720mm wide
Headset
FSA NO.42, 1 1/8" - 1.5", sealed cartridge bearings
Seat
Saddle
Oval Concepts 800 w/ carbon rails
Seatpost
Oval Concepts 850, carbon, 27.2mm, double-bolt micro-adjust
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD | MD/LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.4 mm | 1.37 mm | 1.35 mm |
| Bottom Bracket Height | 311 mm | 311 mm | 311 mm | 311 mm |
| Front Center | 639 mm | 671 mm | 690 mm | 710 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 114 mm | 83 mm | 83 mm | 83 mm |
| Stack | 590.6 mm | 590.8 mm | 600.2 mm | 609.6 mm |
| Reach | 420.2 mm | 420.8 mm | 436.9 mm | 453 mm |
| Top Tube Length | 570 mm | 602 mm | 621 mm | 640 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 533.5 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1057 mm | 1090 mm | 1109 mm | 1129 mm |
| Bottom Bracket Drop | 44 mm | 44 mm | 44 mm | 44 mm |
| Standover Height | 753 mm | 787 mm | 804 mm | 833 mm |
| Wheels | 27" | 27" | 27" | 27" |
Model Overview

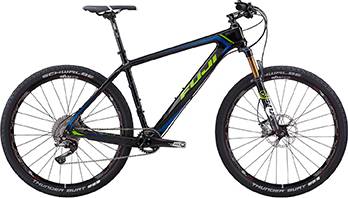

SLM 27.5 1.1 Disc belongs to the Fuji Slm model. Fuji launched 91 bikes of this model so far. Check out the entire range from 2015 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
The SLM 27.5 1.1 Disc comes factory-installed with the Fox Factory Float 32 fork. This has a travel range of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
The fork on this bike is made out of aluminum, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels
The SLM 27.5 1.1 Disc 2015 bike is equipped with 27.5″ aluminum wheels when leaving the factory. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
