Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 27.5" -
Travel Front 100mm -
Fork Manitou
-
Groupset XT, Deore -
Suspension Hardtail -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C10 super-light high-modulus carbon w/ internal shift cable routing, shaped oversized ride-tuned down tube, tapered 1 1/8" - 1.5" head tube, PF30 bottom bracket
Suspension Fork
Manitou Marvel Expert w/ remote lockout, tapered alloy steerer, 15mm thru axle, 100mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Deore XT shadow plus, 10-speed
Front Derailleur
Shimano Deore, direct-mount
Shift Levers
Shimano Deore SLX Ispec, Rapid Fire, 20/30-speed
Cassette
Shimano HG-50, 11-36T, 10-speed
Crank
Shimano Deore XT, hollow Tech II w/ integrated spindle, 38/24T
Bottom Bracket
Shimano sealed cartridge, PF30 adaptor included
Chain
KMC X10 w/ MissingLink, 10-speed
Pedals
N/A
Wheels
Rims
Oval Concepts 400 CL disc wheelset, 28h, 15mm front, 142x12mm rear, cartridge bearing hubs, welded rims, stainless spokes
Tires
Schwalbe Rocket Ron, 27.5" x 2.25" 67tpi, folding
Brakes
Brakes
Shimano Deore, hydraulic disc, 180/160mm rotor
Brake Levers
Shimano Deore, hydraulic disc
Cockpit
Stem
Oval Concepts 313, 6061 3D-forged alloy, 31.8mm, 7° rise
Handlebar
Oval Concepts 200, 6061 alloy, riser, 31.8mm, 9° sweep, 15mm rise, 680 / 710mm wide
Headset
FSA NO.42, 1 1/8" - 1.5", sealed cartridge bearings
Seat
Saddle
Oval Concepts 200 w/ steel rails
Seatpost
Oval Concepts 300, 6061 alloy, 27.2mm, double-bolt micro-adjust
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD | MD/LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.4 mm | 1.37 mm | 1.35 mm |
| Bottom Bracket Height | 311 mm | 311 mm | 311 mm | 311 mm |
| Front Center | 639 mm | 671 mm | 690 mm | 710 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 114 mm | 83 mm | 83 mm | 83 mm |
| Stack | 590.6 mm | 590.8 mm | 600.2 mm | 609.6 mm |
| Reach | 420.2 mm | 420.8 mm | 436.9 mm | 453 mm |
| Top Tube Length | 570 mm | 602 mm | 621 mm | 640 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 533.5 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1057 mm | 1090 mm | 1109 mm | 1129 mm |
| Bottom Bracket Drop | 44 mm | 44 mm | 44 mm | 44 mm |
| Standover Height | 753 mm | 787 mm | 804 mm | 833 mm |
| Wheels | 27" | 27" | 27" | 27" |
Model Overview

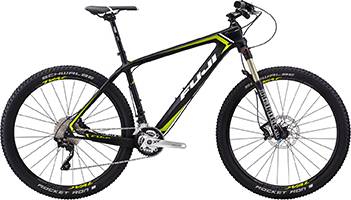

SLM 27.5 2.1 Disc completes the Fuji Slm model. Fuji launched 91 bikes of this model so far. You can easily view all of the Fuji Slm bikes models from 2015, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Crosscountry bikes average weight
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 11.43 kg (25.2 lbs), the SLM 27.5 2.1 Disc model is a bit lighter than average. In conclusion, the average Crosscountry bike weighs 8.49% more than SLM 27.5 2.1 Disc.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
SLM 27.5 2.1 Disc components
Fork
This bike has the Manitou fork installed. The fork’s travel is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
The fork on this bike is made out of aluminum, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels
The wheels on SLM 27.5 2.1 Disc are the 27.5″ aluminum type. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Fuji SLM 27.5 2.1 Disc is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
