Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork Fox Factory Float 32
-
Groupset XTR Di2 -
Suspension Hardtail -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C15 super-light high-modulus carbon w/ internal shift cable routing, shaped oversized ride-tuned down tube, tapered 1 1/8" - 1.5" head tube, PF30 bottom bracket
Suspension Fork
Fox 32 FLOAT 29 Factory FIT iRD 3-position w/ Kashima coating, electronic remote lockout, tapered alloy steerer, 15mm thru axle, 100mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano XTR Di2 shadow plus, 11-speed
Front Derailleur
Shimano XTR Di2, direct mount
Shift Levers
Shimano XTR Di2, 22-speed
Cassette
Shimano XTR, 11-40T, 11-speed
Crank
Oval Concepts M620, hollow forged w/ M35 integrated spindle, 36/26T
Bottom Bracket
Praxis M35
Chain
Shimano XTR, 11-speed
Pedals
N/A
Wheels
Rims
DT Swiss XR1501 Spline One wheelset, 28h, 15mm thru-axle front, 142x12mm rear, welded rims, tubeless ready, DT Swiss Competition spokes
Tires
Schwalbe Racing Ralph Evolution, 29" x 2.25" 67tpi, folding, tubeless ready
Brakes
Brakes
Shimano XTR, hydraulic disc, 180/160mm rotors
Brake Levers
Shimano XTR, hydraulic disc
Cockpit
Stem
Oval Concepts 777SL, 7050 alloy w/ titanium bolts, 31.8mm clamp diameter, 6° rise
Handlebar
Oval Concepts 850SL, carbon, riser, 31.6mm, 9° sweep, +/- 5mm rise
Headset
FSA NO.42, 1 1/8" - 1.5", sealed cartridge bearings
Seat
Saddle
Oval Concepts 800 w/ carbon rails
Seatpost
Oval Concepts 850, carbon, 31.6mm, double-bolt micro-adjust
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.46 mm | 1.44 mm | 1.38 mm |
| Bottom Bracket Height | 321 mm | 321 mm | 321 mm | 321 mm |
| Front Center | 663 mm | 669 mm | 688 mm | 707 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 87 mm | 81 mm | 87 mm | 81 mm |
| Stack | 591.3 mm | 610.6 mm | 628.8 mm | 624.3 mm |
| Reach | 407.8 mm | 418.4 mm | 437.4 mm | 453 mm |
| Top Tube Length | 581 mm | 598 mm | 617 mm | 636 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 394 mm | 445 mm | 483 mm | 533 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1081 mm | 1087 mm | 1106 mm | 1126 mm |
| Bottom Bracket Drop | 53 mm | 53 mm | 53 mm | 53 mm |
| Standover Height | 770 mm | 798 mm | 809 mm | 846 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

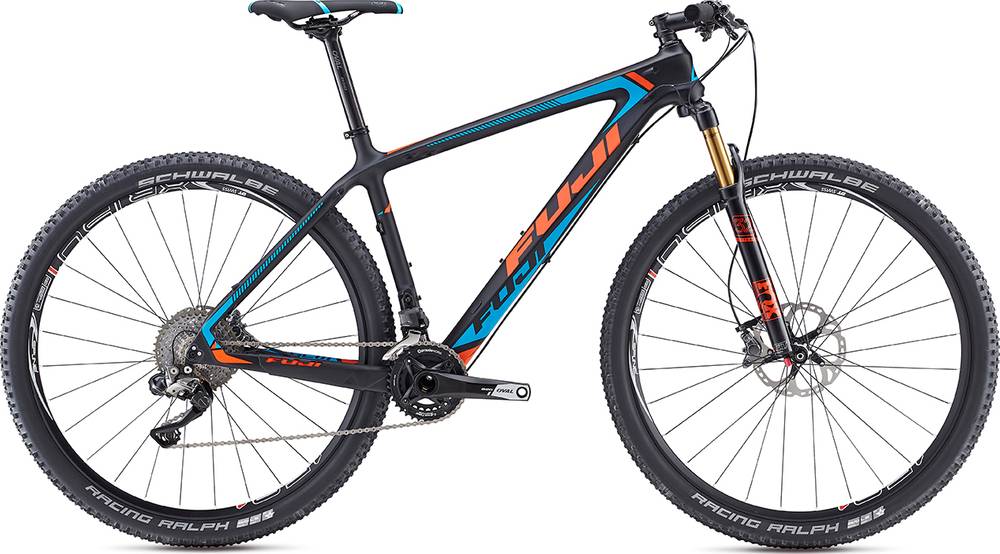

SLM 29 1.1 is a Fuji Slm model. There are 91 bikes that carry this model name. You can easily view all of the Fuji Slm bikes models from 2016, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Crosscountry bikes average weight
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
much lighter than average, SLM 29 1.1 has a weight of 10.07 kg (22.2 lbs). In conclusion, the average Crosscountry bike weighs 23.14% more than SLM 29 1.1.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
The fork installed on this bike is the Fox Factory Float 32 model. The travel on this model is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
The fork is made out of aluminum, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels
When it comes to wheels, the SLM 29 1.1 bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The SLM 29 1.1 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
