Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Carbon -
Wheels 29" -
Suspension Rigid
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C15 super-light high-modulus carbon w/ internal shift cable routing, shaped oversized ride-tuned down tube, tapered 1 1/8" - 1.5" head tube, PF30 bottom bracket
Drivetrain
Bottom Bracket
FSA PF30 to threaded adapter
Cockpit
Headset
FSA NO.42, 1 1/8" - 1.5", sealed cartridge bearings
Seat
Seatpost
Oval Concepts 850, carbon, 31.6mm, double-bolt micro-adjust
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.46 mm | 1.44 mm | 1.38 mm |
| Bottom Bracket Height | 321 mm | 321 mm | 321 mm | 321 mm |
| Front Center | 663 mm | 669 mm | 688 mm | 707 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 87 mm | 81 mm | 87 mm | 81 mm |
| Stack | 591.3 mm | 610.6 mm | 628.8 mm | 624.3 mm |
| Reach | 407.8 mm | 418.4 mm | 437.4 mm | 453 mm |
| Top Tube Length | 581 mm | 598 mm | 617 mm | 636 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 394 mm | 445 mm | 483 mm | 533 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1081 mm | 1087 mm | 1106 mm | 1126 mm |
| Bottom Bracket Drop | 53 mm | 53 mm | 53 mm | 53 mm |
| Standover Height | 770 mm | 798 mm | 809 mm | 846 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

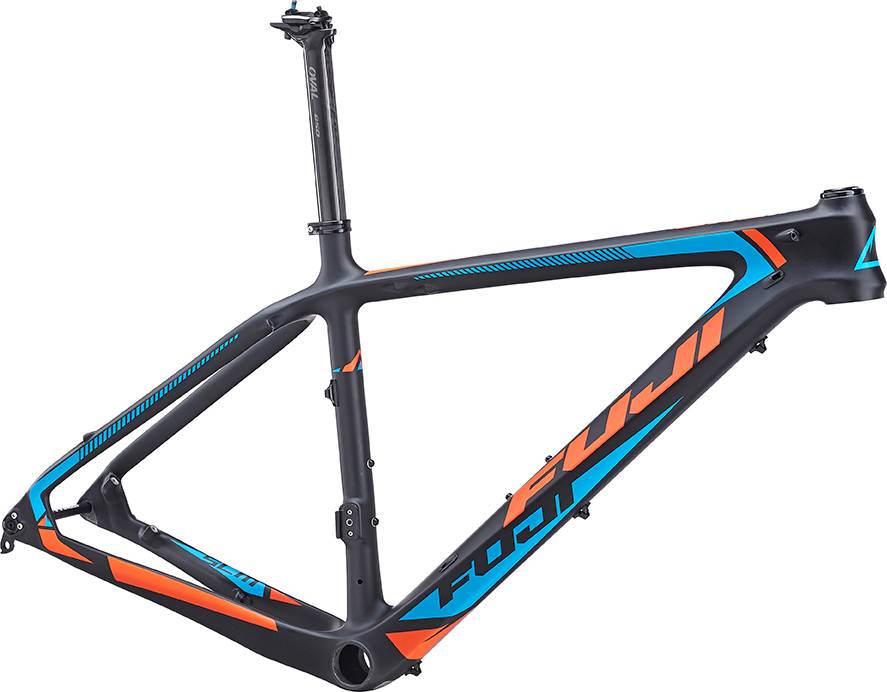

SLM 29 1.1 Frame is part of the Fuji Slm model. There are 91 frames that carry this model name. You can easily view all of the Fuji Slm frames models from 2016, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry frames
If you want to purchase a solid Crosscountry frame, it is important to know that the average cost is 1689$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry frame. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
Crosscountry frames average weight
If we make a quick analysis of the average weight of a Crosscountry frame, we get 2.04 kg (4.5 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
much lighter than average, SLM 29 1.1 Frame has a weight of 1.32 kg (2.91 lbs). To sum up, it’s 54.55% lighter than the average weight of Crosscountry frames.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
SLM 29 1.1 Frame components
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
