Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork Fox Factory Float 32
-
Groupset XT -
Suspension Hardtail -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C15 super-light high-modulus carbon w/ internal shift cable routing, shaped oversized ride-tuned down tube, PF30 bottom bracket, tapered 1 1/8" - 1.5" head tube
Suspension Fork
Fox 32 FLOAT 29 Factory Fit w/ remote lock out, 15mm thru axle, tapered alloy steerer, 100mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano XT, M786 SGS Shadow Plus top normal, 10-speed
Front Derailleur
Shimano Deore XT, M786D, direct-mount
Shift Levers
Shimano Deore XT, M780 Rapid Fire, 20/30-speed w/ Inspec
Cassette
Shimano HG81, 11-36T, 10-speed
Crank
Oval Concepts M600, hollow forged w/ M35 integrated spindle, 38/26T
Bottom Bracket
Praxis M35
Chain
KMC X10, 10-speed
Pedals
N/A
Wheels
Rims
Sun Black Flag Pro 15mm thru-axle front / 142x12mm rear, 28H 6-bolt hubs
Tires
Schwalbe Racing Ralph, tubeless ready, 29" x 2.1" folding, 67 tpi
Brakes
Brakes
Shimano Deore XT M785, hydraulic disc, 180/160mm rotor
Brake Levers
Shimano Deore XT M785 hydraulic disc w/ Inspec
Cockpit
Stem
Oval M713, 3D-forged alloy, 31.8mm clamp diameter, 6° rise
Handlebar
Oval M850, carbon flat bar, 9° sweep, 31.8mm diameter, 710mm wide, +/- 5mm rise
Headset
FSA 1 1/8" - 1.5", sealed cartridge bearings
Seat
Saddle
Oval M600 w/ hollow CrMo rails
Seatpost
Oval M950, carbon double-bolt micro-adjust, 31.6mm x 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD | MD/LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.46 mm | 1.4 mm | 1.38 mm |
| Bottom Bracket Height | 321 mm | 321 mm | 321 mm | 321 mm |
| Front Center | 663 mm | 669 mm | 688 mm | 707 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 87 mm | 81 mm | 81 mm | 81 mm |
| Stack | 591.3 mm | 610.6 mm | 613.8 mm | 624.3 mm |
| Reach | 407.8 mm | 418.4 mm | 437.4 mm | 453 mm |
| Top Tube Length | 581 mm | 598 mm | 617 mm | 636 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 394 mm | 445 mm | 483 mm | 533 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1081 mm | 1087 mm | 1106 mm | 1126 mm |
| Bottom Bracket Drop | 53 mm | 53 mm | 53 mm | 53 mm |
| Standover Height | 770 mm | 798 mm | 809 mm | 846 mm |
| Wheels | 29" | 29" | 29" | 29" |
About this model

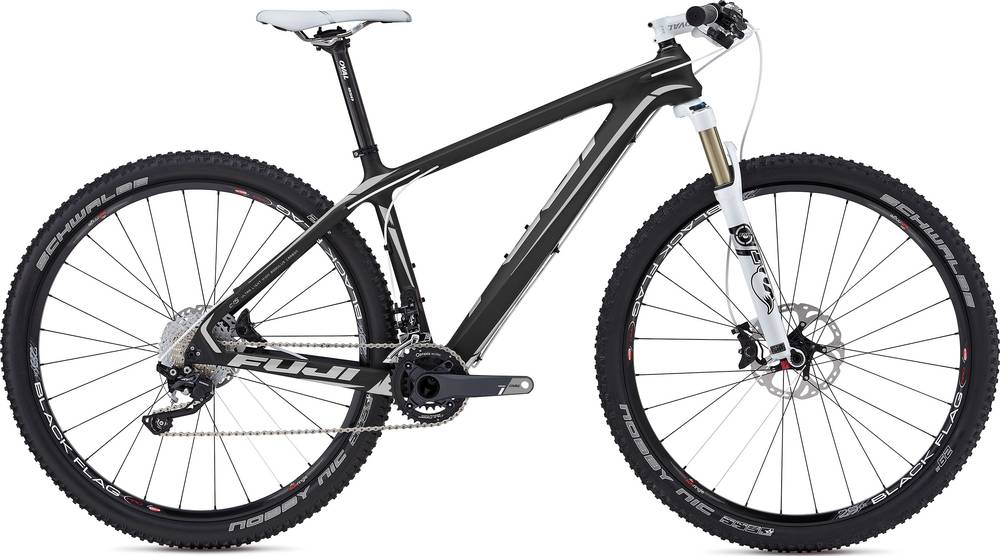

SLM 29 1.3 completes the Fuji Slm model. Fuji launched 91 bikes of this model so far. Check out the entire range from 2014 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Crosscountry bikes average weight
Crosscountry bikes have an average weight of 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
much lighter than average, SLM 29 1.3 has a weight of 10.3 kg (22.71 lbs). In short, the average Crosscountry bike weight is 20.39% higher than this one.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
Fuji SLM 29 1.3 2014 bike is equipped with the Fox Factory Float 32 fork, and has 100mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
The fork on this bike is made out of aluminum, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
The SLM 29 1.3 2014 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
