Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork Fox Performance Elite Float 32
-
Groupset X01, Deore -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C15 super-light high-modulus carbon w/ internal shift cable routing, shaped oversized ride-tuned down tube, tapered 1 1/8" - 1.5" head tube, PF30 bottom bracket
Suspension Fork
Fox 32 FLOAT 29 Performance Elite FIT 3-position w/ remote lockout, tapered alloy steerer, 15mm thru axle, 100mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM XO1, 11-speed
Front Derailleur
N/A
Shift Levers
SRAM XO1 Trigger, 11-speed
Cassette
SRAM XG-1195, 10-42T 11-speed
Crank
Oval Concepts M610, hollow forged w/ M35 integrated spindle, 32T
Bottom Bracket
Praxis M35
Chain
KMC X11 w/ MissingLink, 11-speed
Pedals
N/A
Wheels
Rims
DT Swiss X1700 Spline Two wheelset, 28h, 15mm thru-axle front, 142x12mm rear, DT Swiss Competition spokes
Tires
Schwalbe Thunder Burt, 29" x 2.1" 67tpi, folding, tubeless ready
Brakes
Brakes
Shimano Deore XT, hydraulic disc, 180/160mm rotors
Brake Levers
Shimano Deore XT, hydraulic disc
Cockpit
Stem
Oval Concepts 777SL, 7050 alloy w/ titanium bolts, 31.8mm clamp diameter, 6° rise
Handlebar
Oval Concepts 850, carbon, riser, 31.8mm, 9° sweep, +/- 5mm rise
Headset
FSA NO.42, 1 1/8" - 1.5", sealed cartridge bearings
Seat
Saddle
Oval Concepts 600 w/ CrMo rails
Seatpost
Oval Concepts 850, carbon, 31.6mm, double-bolt micro-adjust
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.46 mm | 1.44 mm | 1.38 mm |
| Bottom Bracket Height | 321 mm | 321 mm | 321 mm | 321 mm |
| Front Center | 663 mm | 669 mm | 688 mm | 707 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 87 mm | 81 mm | 87 mm | 81 mm |
| Stack | 591.3 mm | 610.6 mm | 628.8 mm | 624.3 mm |
| Reach | 407.8 mm | 418.4 mm | 437.4 mm | 453 mm |
| Top Tube Length | 581 mm | 598 mm | 617 mm | 636 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 394 mm | 445 mm | 483 mm | 533 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1081 mm | 1087 mm | 1106 mm | 1126 mm |
| Bottom Bracket Drop | 53 mm | 53 mm | 53 mm | 53 mm |
| Standover Height | 770 mm | 798 mm | 809 mm | 846 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

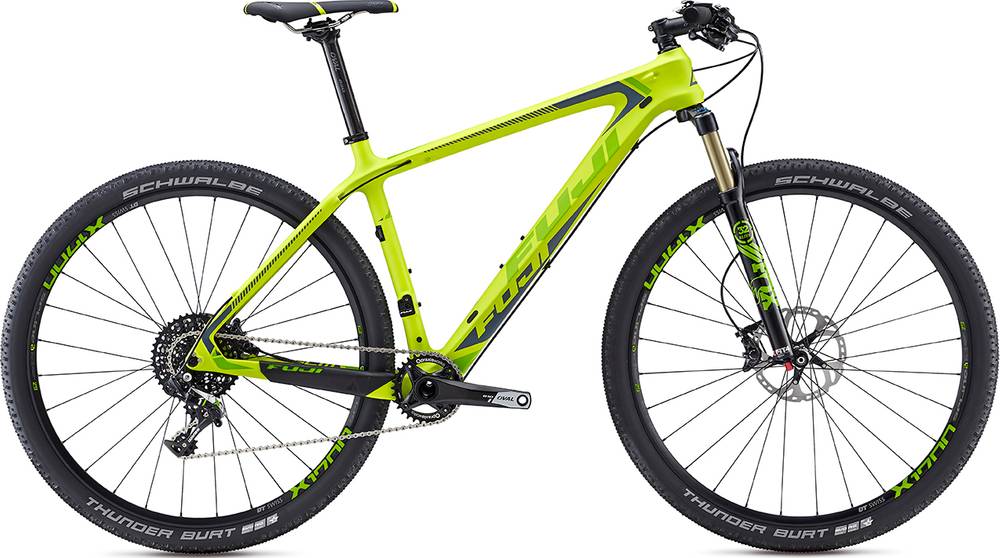

SLM 29 1.3 is a Fuji Slm model. Fuji launched 91 bikes of this model so far. Take a sneak peek at all Fuji Slm bikes models from 2016, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Average weight for Crosscountry bikes
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.4 kg (27.34 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 9.63 kg (21.23 lbs), Fuji bike is much lighter than average. In short, the average Crosscountry bike weight is 28.76% higher than this one.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
The SLM 29 1.3 comes factory-installed with the Fox Performance Elite Float 32 fork. This has a travel range of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
The fork on this bike is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
When leaving the production line, the SLM 29 1.3 model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The SLM 29 1.3 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
SLM 29 1.3 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
