Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork Fox Factory Float 32
-
Groupset X01, Deore -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C15 super-light high-modulus carbon w/ internal shift cable routing, shaped oversized ride-tuned down tube, tapered 1 1/8" - 1.5" head tube, PF30 bottom bracket
Suspension Fork
Fox 32 FLOAT 29 Factory Fit CTD w/ remote lockout, tapered alloy steerer, 15mm thru axle, 100mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM XO1, 11-speed
Front Derailleur
N/A
Shift Levers
SRAM XO1 Trigger, 11-speed
Cassette
SRAM XG-1195, 10-42T 11-speed
Crank
Oval Concepts M610, hollow forged w/ M35 integrated spindle, 32T
Bottom Bracket
Praxis M35
Chain
KMC X11 w/ MissingLink, 11-speed
Pedals
N/A
Wheels
Rims
Sun Ringle Black Flag Pro 15mm thru-axle front / 142x12mm rear, 6-bolt hubs, 28h
Tires
Schwalbe Racing Ralph, 29" x 2.25" 67tpi, folding, tubless ready
Brakes
Brakes
Shimano Deore XT, hydraulic disc, 180/160mm rotor
Brake Levers
Shimano Deore XT, hydraulic disc
Cockpit
Stem
Oval Concepts 713, 3D-forged 7050 alloy, 31.8mm clamp diameter, 6° rise
Handlebar
Oval Concepts 850, carbon, flat bar, 31.8mm, 9° sweep, +/- 5mm rise, 710mm wide
Headset
FSA NO.42, 1 1/8" - 1.5", sealed cartridge bearings
Seat
Saddle
Oval Concepts 600 w/ CrMo rails
Seatpost
Oval Concepts 850, carbon, 31.6mm, double-bolt micro-adjust
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD | MD/LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.46 mm | 1.44 mm | 1.38 mm |
| Bottom Bracket Height | 321 mm | 321 mm | 321 mm | 321 mm |
| Front Center | 663 mm | 669 mm | 688 mm | 707 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 87 mm | 81 mm | 87 mm | 81 mm |
| Stack | 591.3 mm | 610.6 mm | 628.8 mm | 624.3 mm |
| Reach | 407.8 mm | 418.4 mm | 437.4 mm | 453 mm |
| Top Tube Length | 581 mm | 598 mm | 617 mm | 636 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 394 mm | 445 mm | 483 mm | 533 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1081 mm | 1087 mm | 1106 mm | 1126 mm |
| Bottom Bracket Drop | 53 mm | 53 mm | 53 mm | 53 mm |
| Standover Height | 770 mm | 798 mm | 809 mm | 846 mm |
| Wheels | 29" | 29" | 29" | 29" |
Model Overview

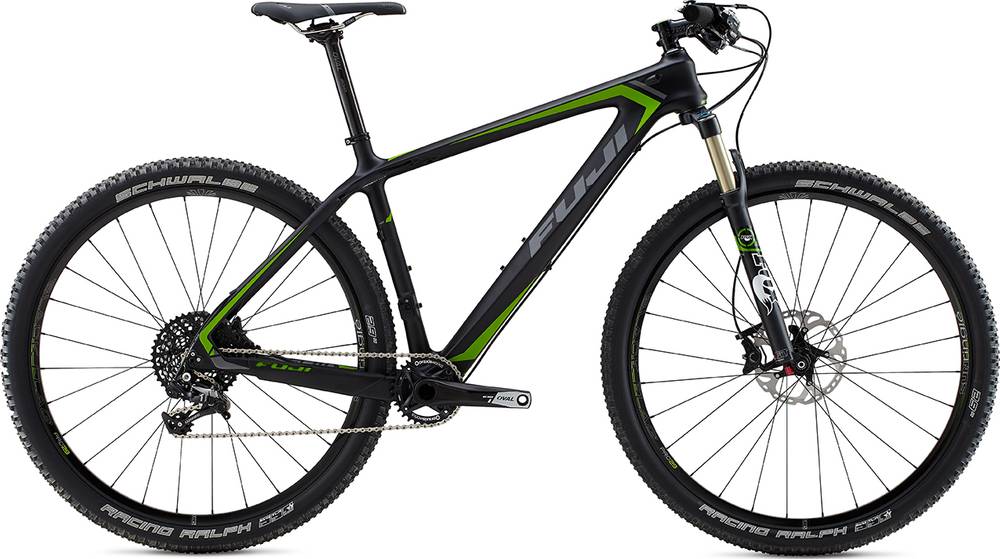

SLM 29 1.3 Disc is a Fuji Slm model. Fuji released 91 bikes variations of this model so far. Take a sneak peek at all Fuji Slm bikes models from 2015, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Crosscountry bikes average weight
Crosscountry bikes have an average weight of 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
much lighter than average, SLM 29 1.3 Disc has a weight of 9.84 kg (21.69 lbs). In short, the average Crosscountry bike weight is 26.02% higher than this one.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
The Fox Factory Float 32 is included from the factory. It has a travel distance of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
The fork on this bike is made out of aluminum, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels
The SLM 29 1.3 Disc 2015 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
