Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork Fox Float 32
-
Groupset XT, Shimano -
Suspension Hardtail -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C15 super-light high-modulus carbon w/ internal shift cable routing, shaped oversized ride-tuned down tube, PF30 bottom bracket, tapered 1 1/8" - 1.5" head tube
Suspension Fork
Fox 32 FLOAT 29 Evolution CTD w/ remote lock out, 15mm thru axle, tapered alloy steerer, 100mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano XT, M786 SGS Shadow Plus top normal, 10-speed
Front Derailleur
Shimano M616D, direct-mount
Shift Levers
Shimano SLX, M670 Rapid Fire, 20/30-speed
Cassette
Shimano Deore HG62, 11-36T, 10-speed
Crank
Oval Concepts M600, hollow forged w/ M35 integrated spindle, 38/26T
Bottom Bracket
Praxis M35
Chain
KMC X10, 10-speed
Pedals
N/A
Wheels
Rims
Formula CL-81 front / CL-142s rear 32H Center Lock disc hubs, Sun Inferno 25 rims
Tires
Schwalbe Nobby Nic, 29" x 2.25" folding, 67 tpi
Brakes
Brakes
Shimano SLX M675, hydraulic disc, 180/160mm rotor
Brake Levers
Shimano SLX M675 hydraulic disc w/ Inspec
Cockpit
Stem
Oval M713, 3D-forged alloy, 31.8mm clamp diameter, 6° rise
Handlebar
Oval M650, alloy riser bar, 9° sweep, 31.8mm diameter, 710mm wide, +/- 5mm rise
Headset
FSA 1 1/8" - 1.5", sealed cartridge bearings
Seat
Saddle
Oval M400 w/ CrMo rails
Seatpost
Oval M750, alloy double-bolt micro-adjust, 31.6mm x 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD | MD/LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.46 mm | 1.4 mm | 1.38 mm |
| Bottom Bracket Height | 321 mm | 321 mm | 321 mm | 321 mm |
| Front Center | 663 mm | 669 mm | 688 mm | 707 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 87 mm | 81 mm | 81 mm | 81 mm |
| Stack | 591.3 mm | 610.6 mm | 613.8 mm | 624.3 mm |
| Reach | 407.8 mm | 418.4 mm | 437.4 mm | 453 mm |
| Top Tube Length | 581 mm | 598 mm | 617 mm | 636 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 394 mm | 445 mm | 483 mm | 533 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1081 mm | 1087 mm | 1106 mm | 1126 mm |
| Bottom Bracket Drop | 53 mm | 53 mm | 53 mm | 53 mm |
| Standover Height | 770 mm | 798 mm | 809 mm | 846 mm |
| Wheels | 29" | 29" | 29" | 29" |
Model Overview

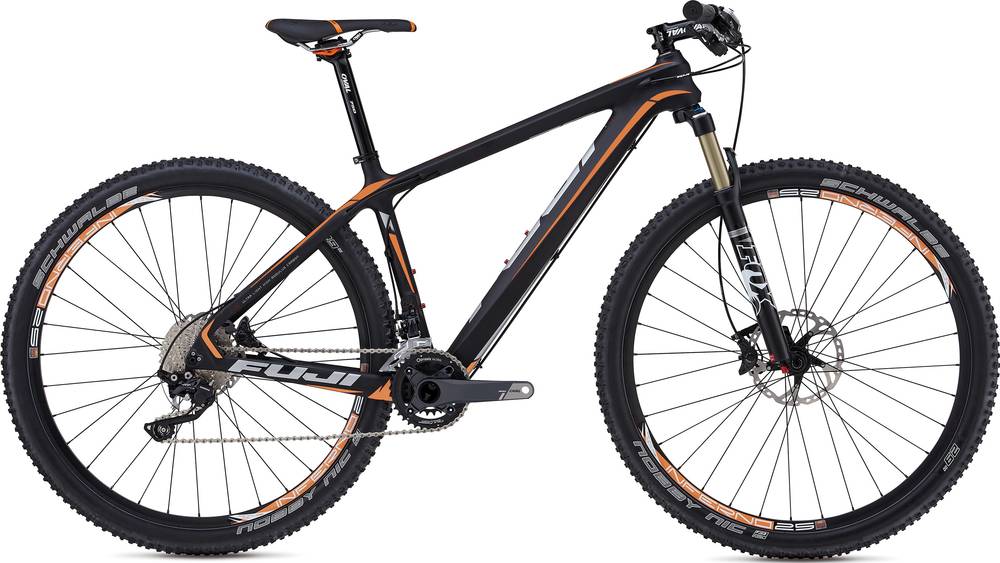

SLM 29 1.5 belongs to the Fuji Slm model. 91 bikes variations carry this model name so far. You can get a glimpse at all models from 2014, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Crosscountry bikes average weight
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
SLM 29 1.5 weighs 11.41 kg (25.15 lbs) and is a bit lighter than the average. In conclusion, the average Crosscountry bike weighs 8.68% more than SLM 29 1.5.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
The SLM 29 1.5 comes factory-installed with the Fox Float 32 fork. This has a travel range of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
The fork is made out of aluminum, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels
When leaving the production line, the SLM 29 1.5 model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. Fuji SLM 29 1.5 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
