Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
A2-SL compact double-butted alloy w/ hydroformed top tube & down tube, integrated 1 1/2" lower head tube & PIIS BB86 shell, double water bottle mounts
Suspension Fork
FC-770 Cross carbon blade, alloy crown w/ tapered alloy steerer & alloy dropout
Drivetrain
Rear Derailleur
Shimano Tiagra, 10-speed
Front Derailleur
Shimano Tiagra
Shift Levers
Shimano Tiagra, STI, 10-speed
Cassette
SunRace, 11-32T, 10-speed
Crank
Oval Concepts 520, forged 6066 arms, 50/34T
Bottom Bracket
Oval Concepts, BB86 press-fit
Chain
KMC X10, 10-speed
Pedals
N/A
Wheels
Rims
Vera Corsa DPD22, double wall, 28 / 32h Formula disc hubs
Tires
Vittoria Zaffiro, 700 x 28, 30tpi
Brakes
Brakes
Avid BB5 mechanical disc for road, 160mm / 140mm rotors
Brake Levers
Shimano Tiagra, STI
Cockpit
Stem
Oval Concepts 313, 6061 3D-forged alloy, 31.8mm, +/- 7°
Handlebar
Oval Concepts 310, butted 6061 alloy, 31.8mm
Headset
FSA, 1 1/8" upper - 1 1/2" lower, integrated
Seat
Saddle
Oval Concepts R300 w/ steel rails
Seatpost
Oval Concepts 300, 3D-forged 6061 alloy, 27.2mm, double-bolt micro-adjust
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.52 mm | 1.58 mm | 1.66 mm | 1.67 mm | 1.66 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 586 mm | 599 mm | 591 mm | 589 mm | 608 mm | 628 mm |
| Rake | 52 mm | 52 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 60 mm | 61 mm | 56 mm | 56 mm | 56 mm | 56 mm |
| Stack | 551 mm | 575 mm | 601 mm | 620 mm | 644 mm | 663 mm |
| Reach | 372 mm | 379 mm | 381 mm | 373 mm | 386 mm | 400 mm |
| Top Tube Length | 519 mm | 534 mm | 548 mm | 562 mm | 582 mm | 602 mm |
| Seat Tube Angle | 75.25 ° | 75 ° | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 455 mm | 485 mm | 505 mm | 525 mm | 545 mm | 575 mm |
| Head Tube Angle | 71.5 ° | 71.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 125 mm | 150 mm | 170 mm | 190 mm | 215 mm | 235 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm | 419 mm | 419 mm | 419 mm |
| Wheelbase | 995 mm | 1009 mm | 1000 mm | 998 mm | 1018 mm | 1038 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 757 mm | 784 mm | 807 mm | 828 mm | 849 mm | 873 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

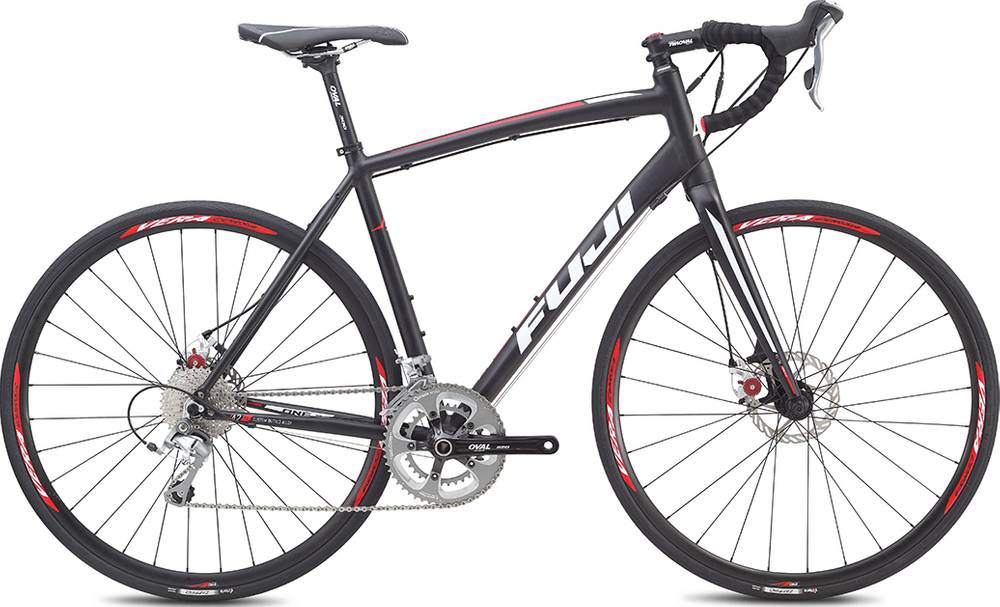

Sportif 1.3 Disc belongs to the Fuji Sportif model. Fuji launched 65 bikes of this model so far. Check out the entire range from 2015 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Endurance bikes average price
According to our math, the average price for a trustworthy Endurance bike is 2346$. However, you could also get a good Endurance bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Endurance bikes average weight
Endurance bikes have an average weight of 8.2 kg (18.08 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
much heavier than average, Sportif 1.3 Disc has a weight of 10.35 kg (22.82 lbs). To sum up, it’s 26.22% heavier than the average weight of Endurance bikes.
Overview of components
Fork material
Sportif 1.3 Disc has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When it comes to wheels, the Sportif 1.3 Disc bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Fuji Sportif 1.3 Disc is equipped with Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
