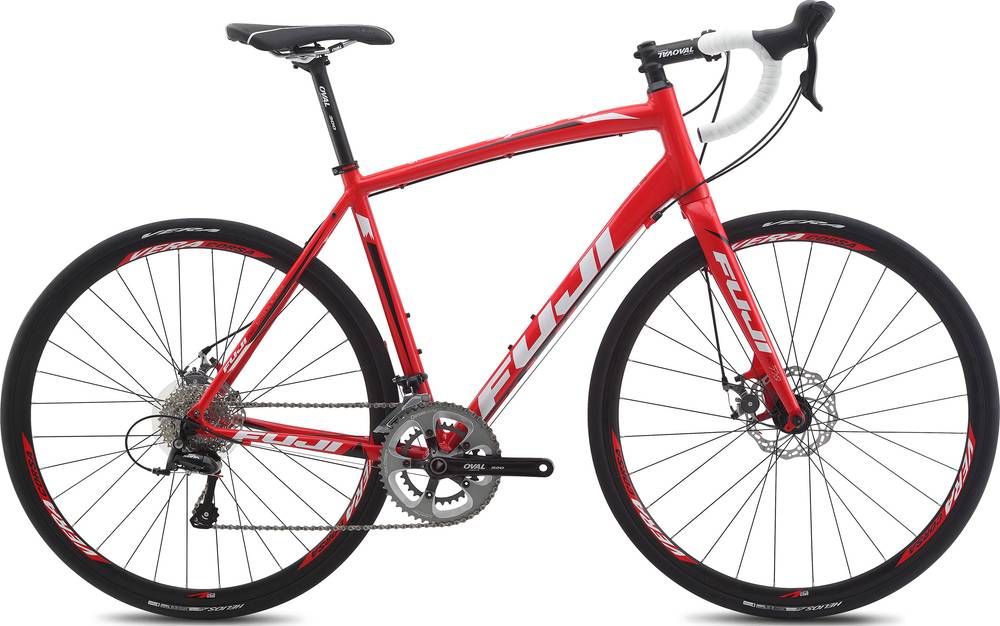

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Sora -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
A2-SL compact double-butted alloy w/ hydroformed top tube & down tube, integrated 1 1/2" lower head tube & PIIS BB86 shell, double water bottle mounts
Suspension Fork
FC-770 Cross carbon blade, alloy crown w/ tapered alloy steerer & alloy dropout
Drivetrain
Rear Derailleur
Shimano Sora
Front Derailleur
Shimano Sora, band-type 34.9mm
Shift Levers
Shimano Sora shifter/brake, Flight Deck-compatible, 18-speed
Cassette
Shimano HG50 , 11-32T, 9-speed
Crank
Fuji forged alloy, 50/34T
Bottom Bracket
Press-fit BB86 sealed bearing
Chain
KMC X9, 9-speed
Pedals
N/A
Wheels
Rims
Vera Corsa double-wall aero alloy clincher, 28/32H alloy road rims, alloy disc hubs
Tires
Vera Helios, 30 tpi, 700c x 28mm, wire bead w/ flat barrier
Brakes
Brakes
ProMax Render-R mechanical disc for road, 160mm / 140mm rotors
Brake Levers
Shimano Sora STI
Cockpit
Stem
Oval 313 3D-forged 6061 alloy, 31.8mm, +/- 7 degrees
Handlebar
Oval 310 butted 6061 alloy, 31.8mm
Headset
FSA Orbit C-40, 1 1/8" upper - 1 1/2" lower, integrated
Seat
Saddle
Oval R300
Seatpost
Oval 300 double-bolt, alloy 27.2mm x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.52 mm | 1.58 mm | 1.66 mm | 1.67 mm | 1.66 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 586 mm | 599 mm | 591 mm | 589 mm | 608 mm | 628 mm |
| Rake | 52 mm | 52 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 60 mm | 61 mm | 56 mm | 56 mm | 56 mm | 56 mm |
| Stack | 551 mm | 575 mm | 601 mm | 620 mm | 644 mm | 663 mm |
| Reach | 372 mm | 379 mm | 381 mm | 373 mm | 386 mm | 400 mm |
| Top Tube Length | 519 mm | 534 mm | 548 mm | 562 mm | 582 mm | 602 mm |
| Seat Tube Angle | 75.25 ° | 75 ° | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 455 mm | 485 mm | 505 mm | 525 mm | 545 mm | 575 mm |
| Head Tube Angle | 71.5 ° | 71.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 125 mm | 150 mm | 170 mm | 190 mm | 215 mm | 235 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm | 419 mm | 419 mm | 419 mm |
| Wheelbase | 995 mm | 1009 mm | 1000 mm | 998 mm | 1018 mm | 1038 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 757 mm | 784 mm | 807 mm | 828 mm | 849 mm | 873 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
Sportif 1.5 completes the Fuji Sportif model. Fuji launched 65 bikes of this model so far. You can get a glimpse at all models from 2014, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Endurance bikes
If you want an acceptable Endurance bike you should know that the average price is 2346$. However, this doesn’t mean that if you spend less money on an Endurance bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When leaving the production line, the Sportif 1.5 model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Sportif 1.5 has Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, performance-wise there is room for improvement.
