Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Sora -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
A2-SL compact double-butted alloy, integrated 1 1/2" lower head tube & PIIS BB86 shell, double water bottle mounts
Suspension Fork
FC-770 Disc carbon blade, alloy crown w/ tapered alloy steerer & alloy dropout
Drivetrain
Rear Derailleur
Shimano Sora, 9-speed
Front Derailleur
Shimano Sora, 34.9mm clamp
Shift Levers
Shimano Sora, STI, 9-speed
Cassette
Shimano HG50 , 11-32T, 9-speed
Crank
Shimano Sora, 50/34T
Bottom Bracket
Shimano BB-RS500, BB86 press-fit
Chain
KMC X9 w/ MissingLink, 9-speed
Pedals
N/A
Wheels
Rims
Vera Corsa DPD22, double wall, 28/32h, Formula disc hubs
Tires
Vera Helios, 700x28c, Phalanx puncture resistant belt
Brakes
Brakes
Tektro MD-C400, 160mm Rotors
Brake Levers
Shimano Sora, STI
Cockpit
Stem
Oval Concepts 313, 6061 3D-forged alloy, 31.8mm, +/- 7°
Handlebar
Oval Concepts 310, butted 6061 alloy, 31.8mm
Headset
FSA, 1 1/8" upper - 1 1/2" lower, integrated
Seat
Saddle
Oval Concepts R300 w/ steel rails
Seatpost
Oval Concepts 300, 3D-forged 6061 alloy, 27.2mm, double-bolt micro-adjust
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.52 mm | 1.58 mm | 1.66 mm | 1.67 mm | 1.66 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 586 mm | 599 mm | 591 mm | 589 mm | 608 mm | 628 mm |
| Rake | 50 mm | 50 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 60.7 mm | 60.7 mm | 56.6 mm | 56.6 mm | 56.6 mm | 56.6 mm |
| Stack | 551 mm | 575 mm | 601 mm | 620 mm | 644 mm | 663 mm |
| Reach | 372 mm | 379 mm | 381 mm | 373 mm | 386 mm | 400 mm |
| Top Tube Length | 519 mm | 534 mm | 548 mm | 562 mm | 582 mm | 602 mm |
| Seat Tube Angle | 75.25 ° | 75 ° | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 455 mm | 485 mm | 505 mm | 525 mm | 545 mm | 575 mm |
| Head Tube Angle | 71.5 ° | 71.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 125 mm | 150 mm | 170 mm | 190 mm | 215 mm | 235 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm | 419 mm | 419 mm | 419 mm |
| Wheelbase | 995 mm | 1009 mm | 1000 mm | 998 mm | 1018 mm | 1038 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 757 mm | 784 mm | 807 mm | 828 mm | 849 mm | 873 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |
About this model

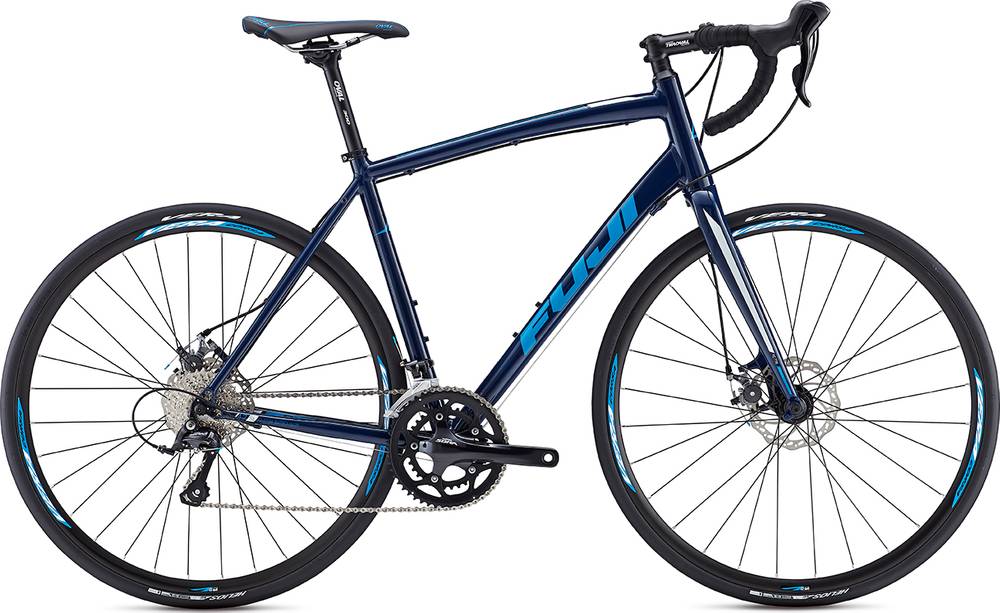

Sportif 1.7 Disc completes the Fuji Sportif model. 65 bikes variations carry this model name so far. Take a sneak peek at all Fuji Sportif bikes models from 2016, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Endurance bikes average price
According to our calculations, the average cost of an Endurance bike that is reliable is 2346$. However, this doesn’t mean that if you spend less money on an Endurance bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Average weight for Endurance bikes
If we make a quick analysis of the average weight of an Endurance bike, we get 8.2 kg (18.08 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Sportif 1.7 Disc weighs 10.52 kg (23.19 lbs) and is much heavier than the average. In other words, this model is 28.29% heavier than the average Endurance bike.
Overview of components
Fork material
Sportif 1.7 Disc has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
As for the wheels, Fuji Sportif 1.7 Disc 2016, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Fuji Sportif 1.7 Disc is equipped with Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
Sportif 1.7 Disc comes in 6 sizes, that range from 158 cm – 194 cm (5.18 ft – 6.36 ft). In conclusion, it won’t take much to find one that’s right for you.
