Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
D6 high modulus carbon w/ RIB Tech, integrated head tube w/ 1 1/2" lower, integrated aero seat tube, internal cable routing, oversized PIIS BB-86 shell, double water bottle mounts
Suspension Fork
FC-330 carbon monocoque w/ RIB Tech, tapered carbon steerer & carbon dropout
Drivetrain
Rear Derailleur
Shimano Dura Ace, 10-speed
Front Derailleur
Shimano Dura Ace, braze-on mount
Shift Levers
Shimano Dura Ace STI shifter/brake, 20-speed Flight Deck compatible
Cassette
Shimano Ultegra, 11-25T 10-speed
Crank
Rotor 3D, 39/53T
Bottom Bracket
Rotor Press-Fit BB86/30 sealed cartridge bearing
Chain
KMC X10L Ti-Plated, 10-speed
Wheels
Rims
Oval 958 carbon/alloy, 58mm rims, straight pull DT Swiss aero spokes 18/24H, sealed bearing hubs
Tires
Hutchinson Atom Comp, 700x23c, folding
Brakes
Brakes
Oval 900 forged alloy dual pivot w/ cartridge pads
Brake Levers
Shimano Dura Ace STI
Cockpit
Stem
Oval 900 carbon/alloy matrix, 31.8mm, +/-6 degrees
Handlebar
Oval 930 full carbon, 31.8mm
Headset
Oval 1 1/8"U - 1 1/2"L integrated w/ carbon top cover
Seat
Saddle
Selle Italia SL Kit Carbonio w/ tubular manganese rails
Seatpost
Integrated seat mast w/ Oval carbon topper w/ 2-bolt clamp system
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.395 mm | 1.386 mm | 1.403 mm | 1.417 mm | 1.388 mm |
| Front Center | 57 mm | 57 mm | 58 mm | 59 mm | 61 mm | 63 mm |
| Rake | 4.3 mm | 4.3 mm | 4.3 mm | 4.3 mm | 4.3 mm | 4.3 mm |
| Trail | 105 mm | 105 mm | 99 mm | 99 mm | 99 mm | 97 mm |
| Seat Tube Angle | 75 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 510 mm | 520 mm | 530 mm | 550 mm | 570 mm | 580 mm |
| Head Tube Angle | 72 ° | 72 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Bottom Bracket Drop | 6 mm | 6 mm | 6 mm | 6 mm | 6 mm | 6 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

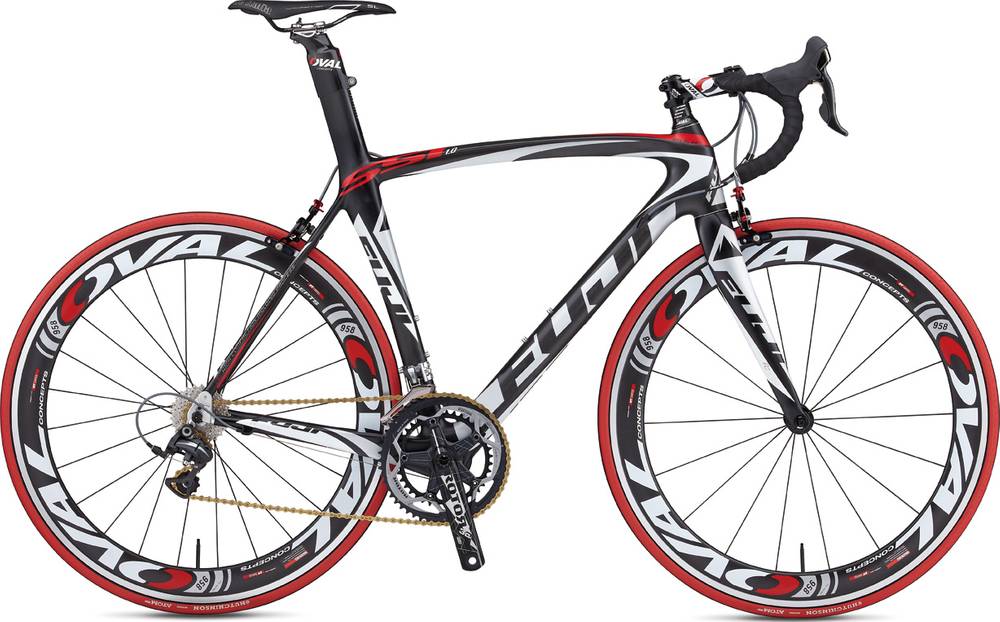

SST 1.0 belongs to the Fuji Sst model. 39 bikes variations carry this model name so far. Take a sneak peek at all Fuji Sst bikes models from 2012, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for General Road bikes
If you want to purchase a solid General Road bike, it is important to know that the average cost is 1915$. However, this doesn’t mean that if you spend less money on a General Road bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
SST 1.0 components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The SST 1.0 2012 bike is equipped with 700c carbon wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Fuji SST 1.0 has Rim brakes installed. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they are not nearly as effective as hydraulic brakes are.
