Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 10 Electronic -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C4 carbon w/ RIB Tech, integrated head tube w/ 1 1/2" lower, aero seat tube, internal cable routing, oversized PIIS BB-86 shell, double water bottle mounts
Suspension Fork
FC-440 carbon monocoque w/ RIB Tech, tapered carbon steerer & carbon dropout
Drivetrain
Rear Derailleur
Shimano Ultegra Di2, 10-speed
Front Derailleur
Shimano Ultegra Di2, braze-on mount
Shift Levers
Shimano Ultegra Di2 Electronic STI shifter/brake, 20-speed, Flight Deck compatible
Cassette
Shimano Ultegra, 11-28T 10-speed
Crank
Rotor 3D+F, 34/50T
Bottom Bracket
Rotor Press-Fit BB86/30 sealed cartridge bearing
Chain
KMC X10, 10-speed
Wheels
Rims
Oval 535 aero alloy, 35mm rims, DT Swiss Competition spokes 20/24H, sealed bearing hubs
Tires
Hutchinson Equinox, 700x23c, folding
Brakes
Brakes
Oval 700 forged & CNC'd w/ cartridge pads
Brake Levers
Shimano Ultegra Di2 STI
Cockpit
Stem
Oval 700 3D forged 7050 alloy, 31.8mm, +/-6 degrees
Handlebar
Oval 710 double-butted 7050 alloy, 31.8mm
Headset
Oval 1 1/8"U - 1 1/2"L integrated w/ alloy top cover
Seat
Saddle
Selle Italia XR w/ FeC alloy rails
Seatpost
Oval aero carbon w/ 2-bolt clamp system
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.395 mm | 1.386 mm | 1.403 mm | 1.417 mm | 1.388 mm |
| Front Center | 57 mm | 57 mm | 58 mm | 59 mm | 61 mm | 63 mm |
| Rake | 4.3 mm | 4.3 mm | 4.3 mm | 4.3 mm | 4.3 mm | 4.3 mm |
| Trail | 105 mm | 105 mm | 99 mm | 99 mm | 99 mm | 97 mm |
| Seat Tube Angle | 75 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 510 mm | 520 mm | 530 mm | 550 mm | 570 mm | 580 mm |
| Head Tube Angle | 72 ° | 72 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Bottom Bracket Drop | 6 mm | 6 mm | 6 mm | 6 mm | 6 mm | 6 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

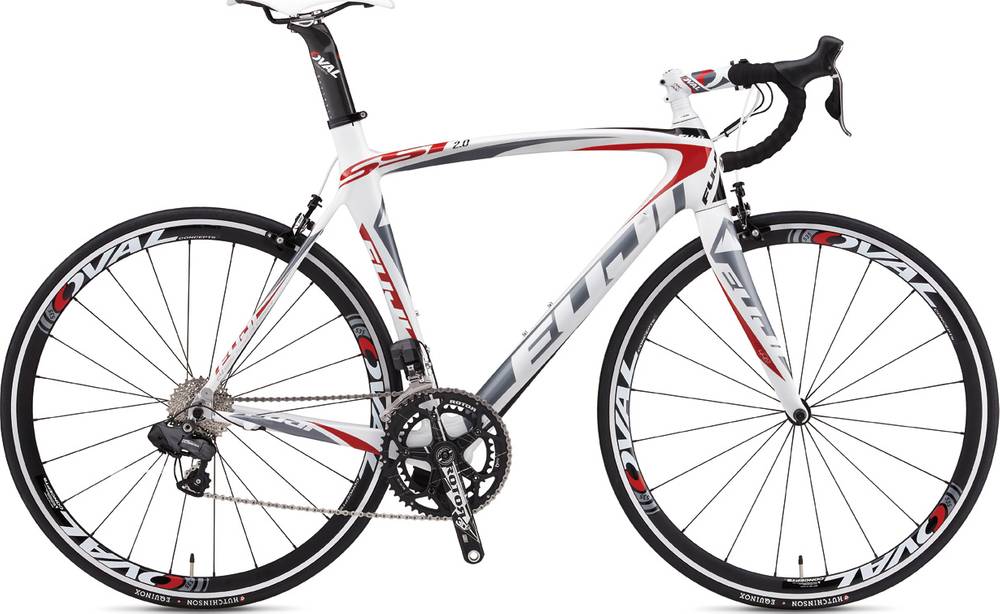

SST 2.0 Di2 UL (Compact) completes the Fuji Sst model. There are 39 bikes that carry this model name. Take a sneak peek at all Fuji Sst bikes models from 2012, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for General Road bikes
According to our calculations, the average cost of a General Road bike that is reliable is 1915$. However, this doesn’t mean that if you spend less money on a General Road bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
SST 2.0 Di2 UL (Compact) has a carbon fork, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When leaving the production line, the SST 2.0 Di2 UL (Compact) model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Fuji SST 2.0 Di2 UL (Compact) is equipped with Rim brakes. Rim brakes deliver an average performance overall. However, you could spend a little extra and get a bike that has hydraulic brakes.
