Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NCX
-
Groupset XT, Deore -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL Aluminum with Hydroformed down tube, Integrated head tube, Double Water Bottle Mounts on Standard Frame
Suspension Fork
SR Suntour SF11-NCX D-LO, 63mm travel w/ Mechanical Lock Out and Disc tabs
Drivetrain
Rear Derailleur
Shimano Deore XT, Top Normal
Front Derailleur
Shimano Deore, 31.8mm Dual Pull
Shift Levers
Shimano Deore Rapid Fire Shifter Lever
Cassette
Shimano Deore 11-32T, 9-speed
Crank
Shimano FC-M521, 26/36/48T
Bottom Bracket
Sealed Cartridge Bearing ST
Chain
KMC HG-73
Pedals
VP 191 Alloy Body w/ Non-Slip Platform and CrMo Spindle
Wheels
Rims
Shimano Sealed Alloy HB-RM65, for Center Lock Disc brakes 32H QR Hubs with Alex, G-2000 Double Wall Alloy, CNC Side Wall Rims
Tires
Kenda K-1065, 700x35c
Brakes
Brakes
Shimano BR-M445 Hydraulic Disc brakes
Brake Levers
Shimano BL-M445, for Hydraulic Disc brakes
Cockpit
Stem
Fuji Comfort Alloy, Removable Clamp
Handlebar
Fuji ATB Alloy, 30mm rise
Headset
VP A42 Semi-Integrated
Seat
Saddle
Fuji Comp MTB
Seatpost
Fuji Micro-Adjust 350x27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Bottom Bracket Height | 281.3 mm | 289 mm | 289 mm | 289 mm | 289 mm | 289 mm |
| Top Tube Length | 549 mm | 572 mm | 587 mm | 597 mm | 607 mm | 627 mm |
| Seat Tube Angle | 73 ° | 72.5 ° | 71.5 ° | 71.5 ° | 71.5 ° | 71.5 ° |
| Seat Tube Length | 380 mm | 440 mm | 480 mm | 520 mm | 560 mm | 600 mm |
| Head Tube Angle | 71 ° | 70 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 120 mm | 110 mm | 120 mm | 140 mm | 155 mm | 170 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1034 mm | 1066 mm | 1064 mm | 1075 mm | 1085 mm | 1105 mm |
| Standover Height | 716 mm | 773 mm | 795 mm | 823 mm | 848 mm | 873 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |
Model Overview

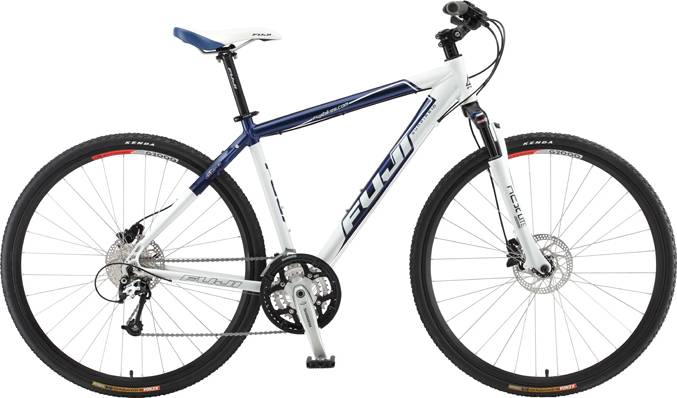

Sunfire 1.0 (INTL) is a Fuji Sunfire model. Fuji released 43 bikes variations of this model so far. Take a sneak peek at all Fuji Sunfire bikes models from 2011, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for General Urban bikes
Our math shows that the average cost of a dependable General Urban bike is 499$. However, you could also get a good General Urban bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Sunfire 1.0 (INTL) components
Fork
Fuji Sunfire 1.0 (INTL) 2011 bike is equipped with the SunTour NCX fork, and has 63mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When leaving the production line, the Sunfire 1.0 (INTL) model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Fuji Sunfire 1.0 (INTL) has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 158 cm – 194 cm (5.18 ft – 6.36 ft). In conclusion, it won’t take much to find one that’s right for you.
