Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Travel Front 50mm -
Fork SunTour
-
Groupset microSHIFT, Tourney -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji Altair 1 Aluminum with PowerDiamond down tube, Integrated head tube, down tube gusset, double water bottle mounts
Suspension Fork
SR Suntour FS9-NEX4110, 50mm travel
Drivetrain
Rear Derailleur
MicroShift RDM-35
Front Derailleur
Shimano Tourney, 31.8mm, Dual Pull
Shift Levers
Shimano ST-EF50 EZ-Fire Integrated shifter, 24-speed
Cassette
SRAM PG-830,11-32T 8-speed
Crank
SR Suntour XCC-T208 forged Alloy, 28/38/48T
Bottom Bracket
Sealed Cartridge Bearing ST
Chain
KMC Z-72
Pedals
Fuji ATB w/alloy cage
Wheels
Front Hub
Formula sealed alloy, 36H QR
Rear Hub
Formula sealed alloy cassette, 36H QR
Rims
Alex, ID-19 double wall alloy, CNC side wall
Spokes
14G Stainless Steel
Tires
CST Cross Fire, 700 X 38c
Brakes
Brakes
ProMax forged alloy, linear pull
Brake Levers
Shimano ST-EF50 Integrated
Cockpit
Stem
Fuji Forged alloy, adjustable angle
Handlebar
Fuji ATB Riser 30mm alloy
Headset
1 1/8" Press Fit Semi-Integrated, 30mm spacers
Seat
Saddle
Fuji Comp MTB
Seatpost
Fuji micro-adjust 27.2, 350 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 381 | 43.1cm | 48.2cm | 52cm | 55.8cm |
|---|---|---|---|---|---|
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm |
| Front Center | 618 mm | 618 mm | 625 mm | 634 mm | 648 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Top Tube Length | 552.9 mm | 565.6 mm | 572.7 mm | 580.8 mm | 594.3 mm |
| Seat Tube Angle | 74 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 431 mm | 482 mm | 520 mm | 558.8 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 90 mm | 115 mm | 115 mm | 140 mm | 155 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1047 mm | 1047 mm | 1054 mm | 1063 mm | 1077 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 740 mm | 762 mm | 786 mm | 817 mm | 842 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model

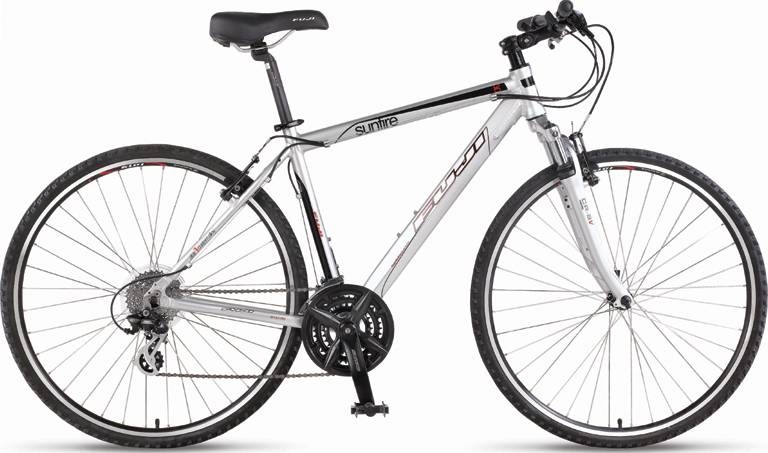

Sunfire 3.0 (Europe) completes the Fuji Sunfire model. Fuji released 43 bikes variations of this model so far. Take a sneak peek at all Fuji Sunfire bikes models from 2009, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
General Urban bikes average price
If you want to purchase a solid General Urban bike, it is important to know that the average cost is 499$. However, even if your budget is less than the average, you might still be able to get a top-quality General Urban bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Sunfire 3.0 (Europe) components
Fork
Fuji Sunfire 3.0 (Europe) 2009 bike is equipped with the SunTour fork, and has 50mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When leaving the production line, the Sunfire 3.0 (Europe) model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Sunfire 3.0 (Europe) has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they are not nearly as effective as hydraulic brakes are.
