Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C10 ultra high-modulus carbon thin seatstays, oversized ETC chainstays, forged-alloy dropout w/ replaceable hanger
Suspension Fork
FC-330 carbon monocoque w/ RIB Tech, tapered carbon steerer & carbon dropout
Drivetrain
Rear Derailleur
Shimano Dura Ace 9000, 11-speed
Front Derailleur
Shimano Dura Ace 9000, braze-on mount
Shift Levers
Shimano Dura Ace 9000 STI, 22-speed
Cassette
Shimano Dura Ace 9000, 11-28T, 11-speed
Crank
Shimano Dura Ace 9000, 50/34T, 11-speed
Bottom Bracket
Shimano press-fit BB86-30 sealed bearing
Chain
Shimano Dura Ace 9000, 11-speed
Pedals
N/A
Wheels
Rims
Oval W535 alloy clincher, 35mm rim - 700c
Tires
Vittoria Rubino Pro Slick, 150 tpi, 700c x 23mm
Brakes
Brakes
Shimano Dura Ace 9000
Brake Levers
Shimano Dura Ace 9000 STI
Cockpit
Stem
Oval 713 3D-forged 7050 alloy, 31.8mm, +/- 6 degrees
Handlebar
Oval R910E full carbon, 31.8mm
Headset
FSA Orbit C-40, 1 1/8" upper - 1 1/2" lower, integrated w/ carbon top cover
Seat
Saddle
Oval R700 Women's w/ CrMo Ti rails
Seatpost
Oval 905, carbon 31.6mm x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | XS | SM | SM/MD | MD |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.39 mm | 1.42 mm | 1.46 mm | 1.49 mm |
| Bottom Bracket Height | 263 mm | 263 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 575 mm | 577 mm | 578 mm | 584 mm | 588 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 48 mm |
| Trail | 66 mm | 60 mm | 60 mm | 57 mm | 53 mm |
| Stack | 512 mm | 524 mm | 531 mm | 552 mm | 575 mm |
| Reach | 370 mm | 377 mm | 375 mm | 379 mm | 387 mm |
| Top Tube Length | 506 mm | 516 mm | 526 mm | 541 mm | 556 mm |
| Seat Tube Angle | 75 ° | 75 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 530 mm | 560 mm |
| Head Tube Angle | 70.5 ° | 71.5 ° | 71.5 ° | 72 ° | 73 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm | 145 mm | 165 mm |
| Chainstay Length | 411 mm | 411 mm | 411 mm | 411 mm | 411 mm |
| Wheelbase | 975 mm | 977 mm | 979 mm | 985 mm | 989 mm |
| Bottom Bracket Drop | 73 mm | 73 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 719 mm | 740 mm | 758 mm | 781 mm | 807 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview

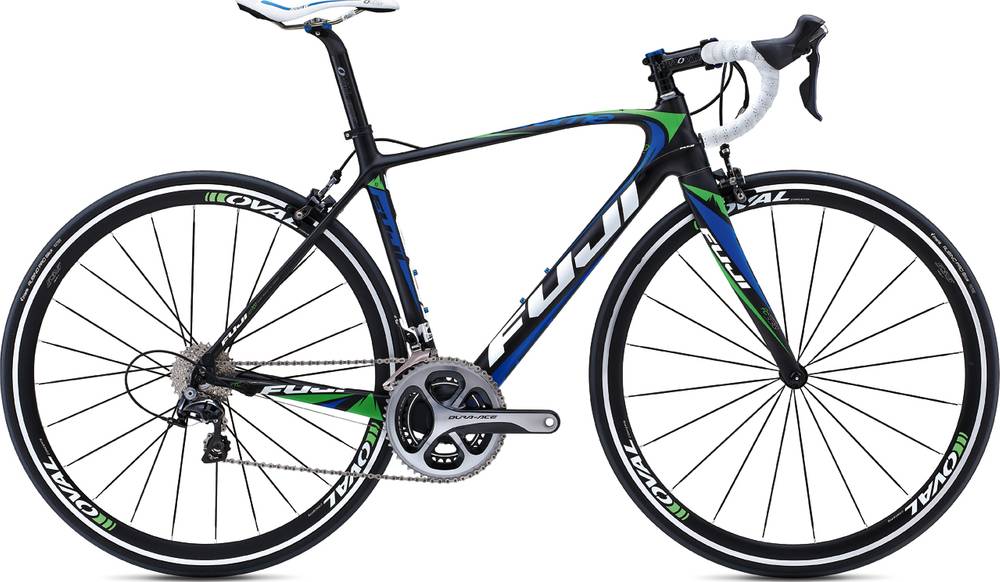

Supreme 1.1 is part of the Fuji Supreme model. There are 49 bikes that carry this model name. Check out the entire range from 2013 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Race bikes
If you want an acceptable Race bike you should know that the average price is 3350$. However, even if your budget is less than the average, you might still be able to get a top-quality Race bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
The Supreme 1.1 2013 bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Fuji Supreme 1.1 is equipped with Rim brakes. Rim brakes deliver an average performance overall. However, they have problems in wet conditions.
