Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Fork Fox Float 32
-
Groupset XT, SLX -
Suspension Hardtail -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
A2-SL custom-butted alloy w/ PowerCurve down tube, smooth welds, hydroformed top tube, tapered 1 1/8" - 1.5" head tube, BB91 bottom bracket
Suspension Fork
Fox 32 FLOAT Evolution CTD w/ 15mm thru axle, tapered alloy steerer, 100mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Deore XT, M781 SGS Shadow, 10-speed
Front Derailleur
Shimano Deore SLX, M676, 34.9mm
Shift Levers
Shimano SLX, M670 Rapid Fire, 20/30-speed
Cassette
Shimano Deore HG62, 11-36T, 10-speed
Crank
Shimano SLX, M675 hollow Tech II w/ integrated spindle, 40/28T
Bottom Bracket
Shimano cartridge bearings
Chain
KMC X10, 10-speed
Pedals
N/A
Wheels
Rims
Shimano SLX M678 front / M675 rear, 32H Center Lock disc hubs, Sun Inferno 23 rims
Tires
Schwalbe Racing Ralph, 26" x 2.25", 67 tpi
Brakes
Brakes
Shimano Deore M596 hydraulic, 180mm/160mm rotor
Brake Levers
Shimano Deore M596 hydraulic
Cockpit
Stem
Oval M613, 3D-forged alloy, 31.8mm clamp diameter, 6° rise
Handlebar
Oval M600, alloy riser bar, 9° sweep, 31.8mm diameter, 680mm wide, 15mm rise
Headset
FSA 1 1/8" - 1.5", sealed cartridge bearings
Seat
Saddle
Oval M400 w/ CrMo rails
Seatpost
Oval M600, alloy double-bolt micro-adjust, 31.6mm x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD | MD/LG | LG |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.44 mm | 1.39 mm | 1.34 mm | 1.33 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 602 mm | 643 mm | 667 mm | 694 mm | 715 mm |
| Rake | 38 mm | 38 mm | 38 mm | 38 mm | 38 mm |
| Trail | 84 mm | 84 mm | 84 mm | 84 mm | 84 mm |
| Stack | 568.2 mm | 577.6 mm | 587 mm | 596.4 mm | 610.5 mm |
| Reach | 363.7 mm | 400.8 mm | 421.9 mm | 445 mm | 460.7 mm |
| Top Tube Length | 538 mm | 578 mm | 602 mm | 628 mm | 648 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 533.4 mm | 584.2 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm | 155 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 1017 mm | 1058 mm | 1083 mm | 1109 mm | 1130 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm | 34 mm | 34 mm |
| Standover Height | 745 mm | 774 mm | 802 mm | 829 mm | 859 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" |
About this model

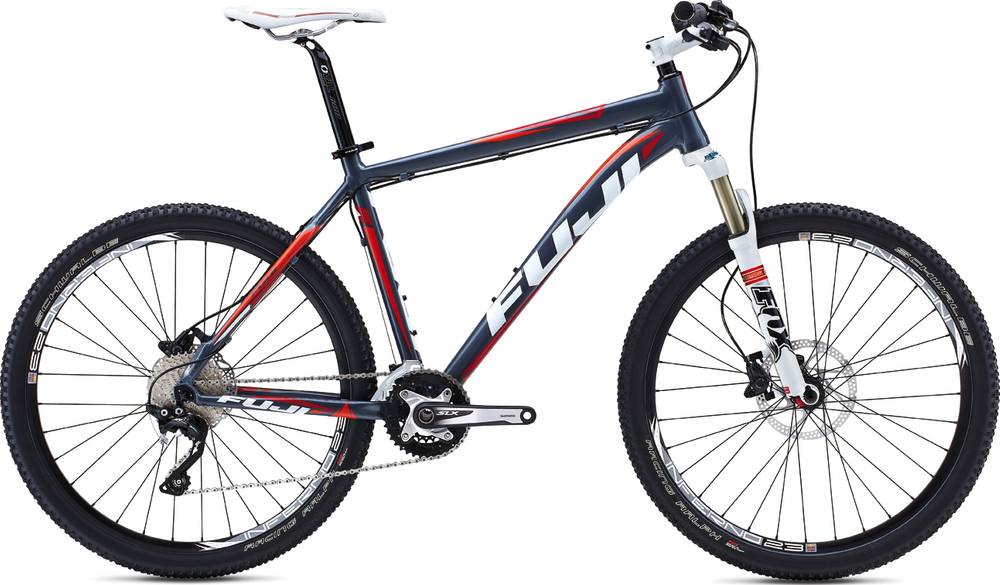

Tahoe 1.3 D belongs to the Fuji Tahoe model. Fuji launched 116 bikes of this model so far. Take a sneak peek at all Fuji Tahoe bikes models from 2013, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Average weight for Crosscountry bikes
Crosscountry bikes weigh an average of 12.4 kg (27.34 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Tahoe 1.3 D weighs 11.28 kg (24.87 lbs) and is a bit lighter than the average. In other words, this model is 9.93% lighter than the average Crosscountry bike.
Tahoe 1.3 D components
Fork
The Tahoe 1.3 D comes factory-installed with the Fox Float 32 fork. This has a travel range of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
Tahoe 1.3 D has an aluminum fork, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
As for the wheels, Fuji Tahoe 1.3 D 2013, has a 26″ aluminum model. Being a little smaller, these wheels will fit both small and tall riders. However, they provide less traction than 29″ wheels do.
Brakes
For your safety, it is important to have quality breaks on your bike. Fuji Tahoe 1.3 D has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
