Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Fork Manitou
-
Groupset XT, Deore -
Suspension Hardtail -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL custom-butted alloy w/ PowerCurve down tube, smooth welds, hydroformed top tube, tapered 1 1/8" - 1.5" head tube, BB91 bottom bracket
Suspension Fork
Manitou Match w/ Tapered alloy steerer, 100mm travel, MILO remote
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Deore XT, M781 SGS Shadow, 10-speed
Front Derailleur
Shimano Deore, M616, 34.9mm
Shift Levers
Shimano Deore, M610 Rapid Fire, 10-speed
Cassette
Driven, 11-36T, 10-speed
Crank
OVAL 420 w/ integrated spindle, 38/26T
Bottom Bracket
Praxis Works sealed cartridge
Chain
KMC X10, 10-speed
Pedals
N/A
Wheels
Rims
Formula DC-73 front / Formula DC-30 rear, 32H disc hubs, Vera Terra DPD22 rims
Tires
Schwalbe Racing Ralph, 26" x 2.25" folding, 67 tpi
Brakes
Brakes
Hayes Dyno Comp, hydraulic disc, 180/160mm rotor
Brake Levers
Hayes Dyno Comp hydraulic
Cockpit
Stem
Oval M313, 3D-forged alloy, 31.8mm clamp diameter, 6° rise
Handlebar
Oval M100, alloy riser bar, 9° sweep, 31.8mm diameter, 710mm wide, 15mm rise
Headset
FSA 1 1/8" - 1.5", cartridge bearings
Seat
Saddle
Oval M200 w/ steel rails
Seatpost
Oval M300, alloy double-bolt micro-adjust, 31.6mm x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD | MD/LG | LG |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.44 mm | 1.39 mm | 1.34 mm | 1.33 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 602 mm | 643 mm | 667 mm | 694 mm | 715 mm |
| Rake | 38 mm | 38 mm | 38 mm | 38 mm | 38 mm |
| Trail | 84 mm | 84 mm | 84 mm | 84 mm | 84 mm |
| Stack | 568.2 mm | 577.6 mm | 587 mm | 596.4 mm | 610.5 mm |
| Reach | 363.7 mm | 400.8 mm | 421.9 mm | 445 mm | 460.7 mm |
| Top Tube Length | 538 mm | 578 mm | 602 mm | 628 mm | 648 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 533.4 mm | 584.2 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm | 155 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 1017 mm | 1058 mm | 1083 mm | 1109 mm | 1130 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm | 34 mm | 34 mm |
| Standover Height | 745 mm | 774 mm | 802 mm | 829 mm | 859 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" |
Model Overview

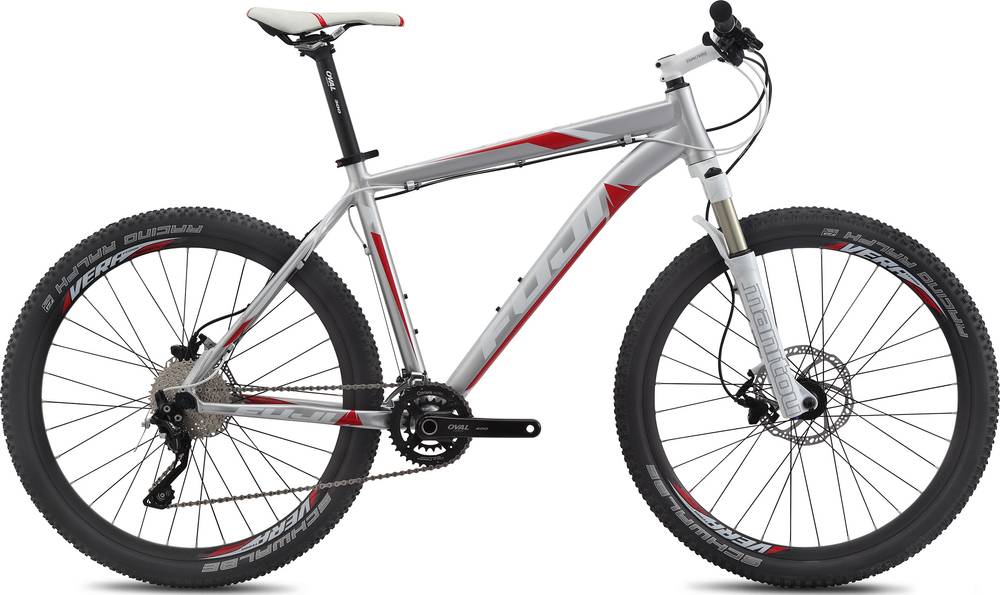

Tahoe 1.5 is part of the Fuji Tahoe model. 116 bikes variations carry this model name so far. You can get a glimpse at all models from 2014, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Crosscountry bikes average weight
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Tahoe 1.5 weighs 12.03 kg (26.52 lbs) and is slightly lighter than the average. To sum up, it’s 3.08% lighter than the average weight of Crosscountry bikes.
Overview of components
Fork
This bike has the Manitou fork installed. The fork’s travel is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
Tahoe 1.5 has an aluminum fork, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
When leaving the production line, the Tahoe 1.5 model has 26″ aluminum wheels. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
For your safety, it is important to have quality breaks on your bike. Fuji Tahoe 1.5 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
