Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork Manitou
-
Groupset XT, Deore -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL custom-butted alloy w/ PowerCurve down tube, smooth welds, hydroformed top tube, tapered 1 1/8" - 1.5" head tube, BB91 bottom bracket
Suspension Fork
Manitou Marvel LTD 27.5" w/ remote lockout, tapered alloy steerer, 100mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Deore XT shadow, 10-speed
Front Derailleur
Shimano Deore, 34.9mm
Shift Levers
Shimano Deore, Rapid Fire, 10-speed
Cassette
SunRace Driven, 11-36T, 10-speed
Crank
Shimano Deore, integrated spindle, 40/30/22T
Bottom Bracket
Shimano, press-fit
Chain
KMC X10 w/ MissingLink, 10-speed
Pedals
N/A
Wheels
Rims
Vera Terra DPD22 rims 32h, Formula DC-73 front / Formula DC-30 rear disc hubs, stainless black spokes
Tires
Schwalbe Rapid Rob, 27.5" x 2.25", 50 tpi
Brakes
Brakes
Shimano M396, hydraulic disc, 180/160mm rotor
Brake Levers
Shimano M396, hydraulic disc
Cockpit
Stem
Oval Concepts 313, 6061 3D-forged alloy, 31.8mm, 7° rise
Handlebar
Oval Concepts, 6061 alloy, riser, 31.8mm, 9° sweep, 15mm rise, 680 / 710mm wide
Headset
FSA NO.42, 1 1/8" - 1.5", caged bearings
Seat
Saddle
Oval Concepts 200 w/ steel rails
Seatpost
Oval Concepts 300, 6061 alloy, 31.6, double-bolt micro-adjust
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD | MD/LG | LG |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.67 mm | 1.49 mm | 1.44 mm | 1.39 mm | 1.36 mm |
| Bottom Bracket Height | 311 mm | 311 mm | 311 mm | 311 mm | 311 mm |
| Front Center | 595 mm | 645 mm | 669 mm | 696 mm | 716 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 85 mm | 85 mm | 85 mm | 85 mm | 85 mm |
| Stack | 583.2 mm | 592.6 mm | 602 mm | 611.4 mm | 620.8 mm |
| Reach | 350 mm | 396.5 mm | 417.6 mm | 440.7 mm | 457.9 mm |
| Top Tube Length | 528.8 mm | 578.2 mm | 602.2 mm | 628.2 mm | 648.2 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 330.2 mm | 432 mm | 483 mm | 533.4 mm | 584.2 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1019 mm | 1069 mm | 1093 mm | 1120 mm | 1140 mm |
| Bottom Bracket Drop | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Standover Height | 730 mm | 789 mm | 819 mm | 847 mm | 875 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
Model Overview

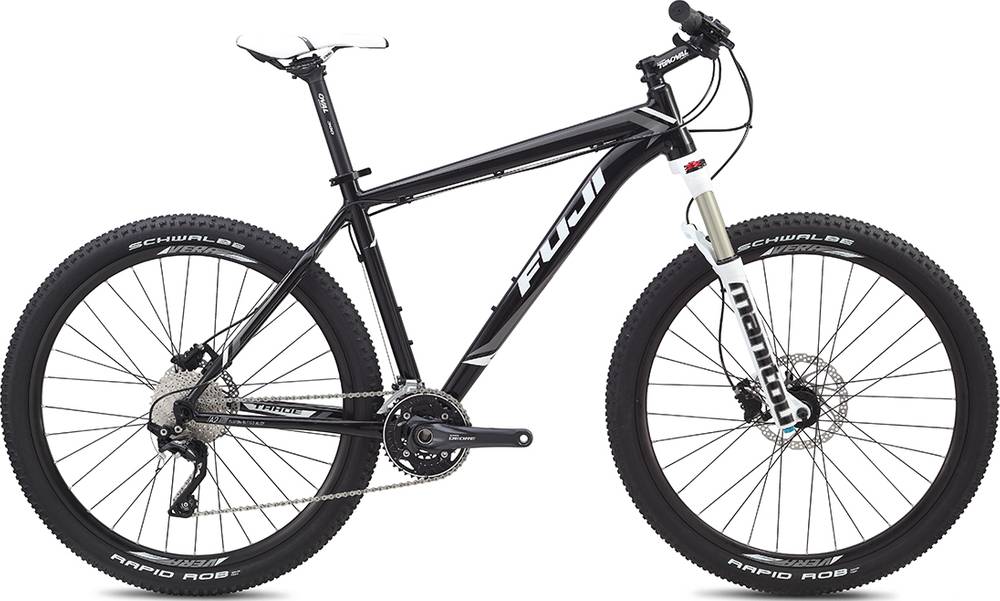

Tahoe 27-5 1.5 Disc completes the Fuji Tahoe model. There are 116 bikes that carry this model name. You can easily view all of the Fuji Tahoe bikes models from 2015, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry bikes average price
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Crosscountry bikes average weight
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 13.06 kg (28.79 lbs), the Tahoe 27-5 1.5 Disc model is a bit heavier than average. In short, the average Crosscountry bike weight is 5.32% lower than this one.
Overview of components
Fork
The Tahoe 27-5 1.5 Disc comes factory-installed with the Manitou fork. This has a travel range of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
The fork is made out of aluminum, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels
The Tahoe 27-5 1.5 Disc 2015 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Tahoe 27-5 1.5 Disc comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
