Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Manitou
-
Groupset XT, SLX -
Suspension Hardtail -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL custom-butted alloy w/ PowerCurve down tube, smooth welds, hydroformed top tube, tapered 1 1/8" - 1.5" head tube, BB91 bottom bracket
Suspension Fork
Manitou Marvel Comp w/ remote lockout, tapered alloy steerer, 100mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Deore XT shadow plus, 10-speed
Front Derailleur
Shimano SLX, 34.9mm
Shift Levers
Shimano SLX Ispec, Rapid Fire, 20/30-speed
Cassette
Shimano HG-50, 11-36T, 10-speed
Crank
Shimano Deore, integrated spindle, 38/24T
Bottom Bracket
Shimano, press-fit
Chain
KMC X10 w/ MissingLink, 10-speed
Pedals
N/A
Wheels
Rims
OVAL Concepts 200 6-bolt disc wheelset, 32h, stainless spokes
Tires
Schwalbe Rocket Ron, 29" x 2.25", 67tpi, folding
Brakes
Brakes
Shimano M447, hydraulic disc, 180/160mm rotor
Brake Levers
Shimano M506, hydraulic disc
Cockpit
Stem
Oval Concepts 313, 6061 3D-forged alloy, 31.8mm, 7° rise
Handlebar
Oval Concepts 250, 6061 alloy, riser, 31.8mm, 9° sweep, +/- 5mm rise, 710mm wide
Headset
FSA NO.42, 1 1/8" - 1.5", caged bearings
Seat
Saddle
Oval Concepts 200 w/ steel rails
Seatpost
Oval Concepts 300, 6061 alloy, 31.6, double-bolt micro-adjust
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD | MD/LG | LG |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.69 mm | 1.67 mm | 1.59 mm | 1.53 mm | 1.49 mm |
| Bottom Bracket Height | 319 mm | 319 mm | 319 mm | 319 mm | 319 mm |
| Front Center | 631 mm | 641 mm | 654 mm | 681 mm | 702 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 79 mm | 74 mm | 81 mm | 79 mm | 79 mm |
| Stack | 636.2 mm | 636.2 mm | 636.5 mm | 645.7 mm | 655.1 mm |
| Reach | 376.1 mm | 381.1 mm | 401 mm | 423 mm | 440.8 mm |
| Top Tube Length | 578 mm | 588 mm | 600 mm | 628 mm | 648 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 533.4 mm | 584.2 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 120 mm | 120 mm | 130 mm | 130 mm | 140 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1060 mm | 1070 mm | 1083 mm | 1110 mm | 1131 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 789 mm | 812 mm | 840 mm | 862 mm | 891 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model

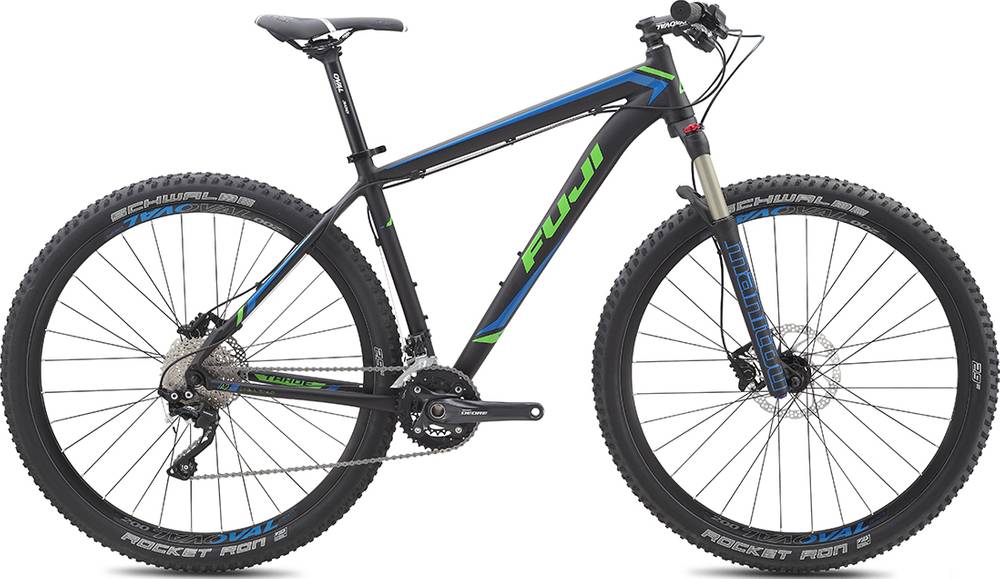

Tahoe 29 1.3 Disc is a Fuji Tahoe model. Fuji released 116 bikes variations of this model so far. Check out the entire range from 2015 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Average weight for Crosscountry bikes
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 12.51 kg (27.58 lbs), Fuji bike is slightly heavier than average. In short, the average Crosscountry bike weight is 0.89% lower than this one.
Overview of components
Fork
The Tahoe 29 1.3 Disc comes factory-installed with the Manitou fork. This has a travel range of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
Tahoe 29 1.3 Disc has an aluminum fork, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels
The wheels on Tahoe 29 1.3 Disc are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Tahoe 29 1.3 Disc comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
