Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RockShox Recon Silver TK
-
Groupset XT, Deore -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL custom-butted alloy w/ PowerCurve down tube, smooth welds, hydroformed top tube, tapered 1 1/8" - 1.5" head tube, BB91 bottom bracket
Suspension Fork
Rock Shox Recon Silver TK Solo Air 29 w/ remote lockout, tapered alloy steerer, 100mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Deore XT shadow, 10-speed
Front Derailleur
Shimano Deore, 34.9mm
Shift Levers
Shimano Deore, Rapid Fire, 10-speed
Cassette
Shimano HG50, 11-36T, 10-speed
Crank
Shimano Deore, integrated spindle, 40/30/22T
Bottom Bracket
Shimano, press-fit
Chain
KMC X10 w/ MissingLink, 10-speed
Pedals
N/A
Wheels
Rims
Vera Terra DPD22 rims 32h, Formula DC-73 front, Formula DC-308 rear disc hubs, stainless black spokes
Tires
Schwalbe Rapid Rob, 29" x 2.25", 50tpi
Brakes
Brakes
Shimano M395, hydraulic disc, 180/160mm rotors
Brake Levers
Shimano M396, hydraulic disc
Cockpit
Stem
Oval Concepts 313, 6061 3D-forged alloy, 31.8mm, 7° rise
Handlebar
Oval Concepts, 6061 alloy, flat, 31.8mm, 9° sweep, 0mm rise
Headset
FSA NO.42B, 1 1/8" - 1.5", semi-cartridge bearings
Seat
Saddle
Oval Concepts 200 w/ steel rails
Seatpost
Oval Concepts 300, 6061 alloy, 31.6mm, double-bolt micro-adjust
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.69 mm | 1.67 mm | 1.59 mm | 1.53 mm | 1.49 mm |
| Bottom Bracket Height | 319 mm | 319 mm | 319 mm | 319 mm | 319 mm |
| Front Center | 631 mm | 641 mm | 654 mm | 681 mm | 702 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 79 mm | 74 mm | 81 mm | 79 mm | 79 mm |
| Stack | 636.2 mm | 636.2 mm | 636.5 mm | 645.7 mm | 655.1 mm |
| Reach | 376.1 mm | 381.1 mm | 401 mm | 423 mm | 440.8 mm |
| Top Tube Length | 578 mm | 588 mm | 600 mm | 628 mm | 648 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 533.4 mm | 584.2 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 120 mm | 120 mm | 130 mm | 130 mm | 140 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1060 mm | 1070 mm | 1083 mm | 1110 mm | 1131 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 789 mm | 812 mm | 840 mm | 862 mm | 891 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
Model Overview

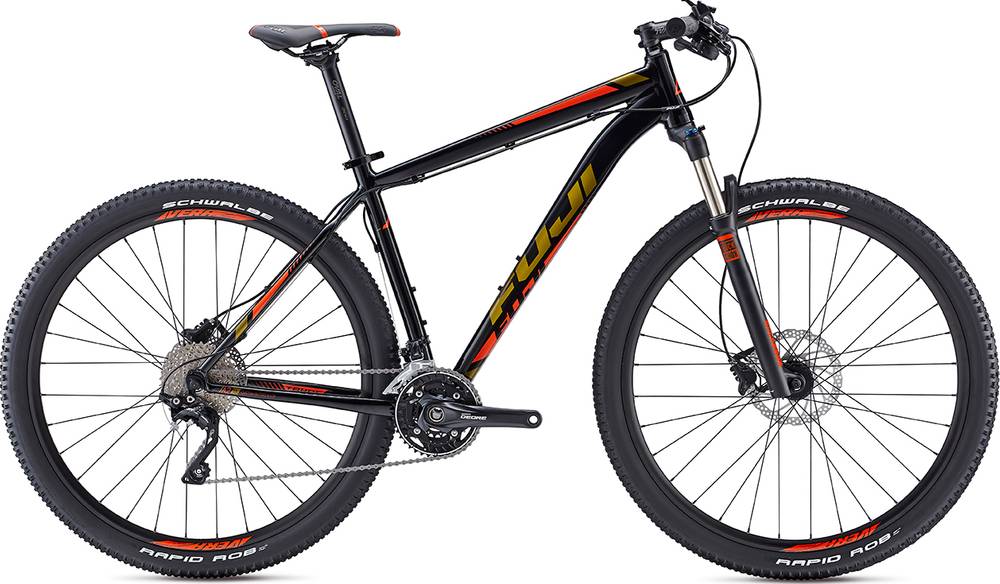

Tahoe 29 1.5 belongs to the Fuji Tahoe model. Fuji launched 116 bikes of this model so far. You can easily view all of the Fuji Tahoe bikes models from 2016, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Crosscountry bikes
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.4 kg (27.34 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 13.25 kg (29.21 lbs), the Tahoe 29 1.5 model is a bit heavier than average. In short, the average Crosscountry bike weight is 6.85% lower than this one.
Overview of components
Fork
This bike has the RockShox Recon Silver TK fork installed. The fork’s travel is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
Tahoe 29 1.5 has an aluminum fork, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
The Tahoe 29 1.5 2016 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Tahoe 29 1.5 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
