Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Manitou
-
Groupset XT, Deore -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL custom-butted alloy w/ PowerCurve down tube, smooth welds, hydroformed top tube, tapered 1 1/8" - 1.5" head tube, BB91 bottom bracket
Suspension Fork
Manitou Marvel LTD 29 w/ remote lockout, tapered alloy steerer, 100mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Deore XT shadow, 10-speed
Front Derailleur
Shimano Deore, 34.9mm
Shift Levers
Shimano Deore, Rapid Fire, 10-speed
Cassette
SunRace Driven, 11-36T, 10-speed
Crank
Shimano Deore, integrated spindle, 40/30/22T
Bottom Bracket
Shimano, press-fit
Chain
KMC X10 w/ MissingLink, 10-speed
Pedals
N/A
Wheels
Rims
Vera Terra DPD22 rims 32h, Formula DC-73 front / Formula DC-30 rear disc hubs, stainless black spokes
Tires
Schawable Rapid Rob, 29" x 2.25", 50tpi
Brakes
Brakes
Shimano M396, hydraulic disc, 180/160mm rotor
Brake Levers
Shimano M396, hydraulic disc
Cockpit
Stem
Oval Concepts 313, 6061 3D-forged alloy, 31.8mm, 7° rise
Handlebar
Oval Concepts, 6061 alloy, flat, 31.8mm, 9° sweep, 0mm rise, 710mm wide
Headset
FSA NO.42, 1 1/8" - 1.5", caged bearings
Seat
Saddle
Oval Concepts 200 w/ steel rails
Seatpost
Oval Concepts 300, 6061 alloy, 31.6, double-bolt micro-adjust
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD | MD/LG | LG |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.69 mm | 1.67 mm | 1.59 mm | 1.53 mm | 1.49 mm |
| Bottom Bracket Height | 319 mm | 319 mm | 319 mm | 319 mm | 319 mm |
| Front Center | 631 mm | 641 mm | 654 mm | 681 mm | 702 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 79 mm | 74 mm | 81 mm | 79 mm | 79 mm |
| Stack | 636.2 mm | 636.2 mm | 636.5 mm | 645.7 mm | 655.1 mm |
| Reach | 376.1 mm | 381.1 mm | 401 mm | 423 mm | 440.8 mm |
| Top Tube Length | 578 mm | 588 mm | 600 mm | 628 mm | 648 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 533.4 mm | 584.2 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 120 mm | 120 mm | 130 mm | 130 mm | 140 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1060 mm | 1070 mm | 1083 mm | 1110 mm | 1131 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 789 mm | 812 mm | 840 mm | 862 mm | 891 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
Model Overview

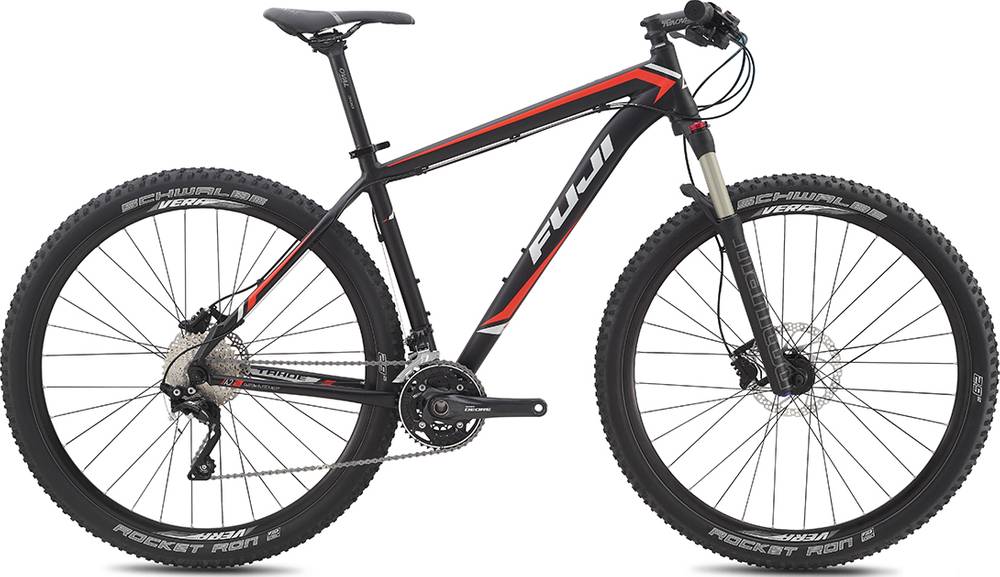

Tahoe 29 1.5 Disc belongs to the Fuji Tahoe model. 116 bikes variations carry this model name so far. Check out the entire range from 2015 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Average weight for Crosscountry bikes
Crosscountry bikes have an average weight of 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 13.12 kg (28.92 lbs), the Tahoe 29 1.5 Disc model is a bit heavier than average. To sum up, it’s 5.81% heavier than the average weight of Crosscountry bikes.
Overview of components
Fork
This bike has the Manitou fork installed. The fork’s travel is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
The fork on this bike is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
The wheels on Tahoe 29 1.5 Disc are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
