Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Manitou
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
A2-SL custom-butted alloy w/ PowerCurve down tube, smooth welds, hydroformed top tube, tapered 1 1/8" - 1.5" head tube, BB91 bottom bracket
Suspension Fork
Manitou Tower Comp TS air w/ tapered alloy steerer, lockout, 100mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Deore, M593 SGS Shadow, 10-speed
Front Derailleur
Shimano Deore, M591, 34.9mm
Shift Levers
Shimano Deore, M591 Rapid Fire, 10-speed
Cassette
Shimano Deore HG62, 11-36T, 10-speed
Crank
Shimano Deore, M590 w/ integrated spindle, 42/32/24T
Bottom Bracket
Shimano BB91 press-fit
Chain
KMC X10, 10-speed
Pedals
N/A
Wheels
Rims
Formula DC-20 front / DC-22 rear, 32H hubs w/ Vera Terra DPD22
Tires
Vera Eos, 29" x 2.1", 30 tpi
Brakes
Brakes
Promax Decipher, hydraulic disc, 180mm/160mm rotor
Brake Levers
Promax Decipher hydraulic disc
Cockpit
Stem
Oval M213, 3D-forged alloy, 31.8mm clamp diameter, 6° rise
Handlebar
Oval M100, alloy flat bar, 9° sweep, 31.8mm diameter, 710mm wide
Headset
FSA 1 1/8" - 1.5", sealed cartridge bearings
Seat
Saddle
Oval M200 w/ satin steel rails
Seatpost
Oval M200, alloy double-bolt micro-adjust, 31.6mm x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD | MD/LG | LG |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.69 mm | 1.65 mm | 1.61 mm | 1.53 mm | 1.49 mm |
| Bottom Bracket Height | 319 mm | 319 mm | 319 mm | 319 mm | 319 mm |
| Front Center | 631 mm | 641 mm | 654 mm | 681 mm | 701 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 79 mm | 79 mm | 85 mm | 79 mm | 79 mm |
| Stack | 636.2 mm | 636.2 mm | 645.7 mm | 645.7 mm | 655.1 mm |
| Reach | 376.1 mm | 386.1 mm | 401 mm | 423 mm | 439.9 mm |
| Top Tube Length | 578 mm | 588 mm | 603 mm | 628 mm | 648 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 533.4 mm | 584.2 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 120 mm | 120 mm | 130 mm | 130 mm | 140 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1060 mm | 1070 mm | 1083 mm | 1110 mm | 1130 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 789 mm | 812 mm | 835 mm | 862 mm | 891 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
Model Overview

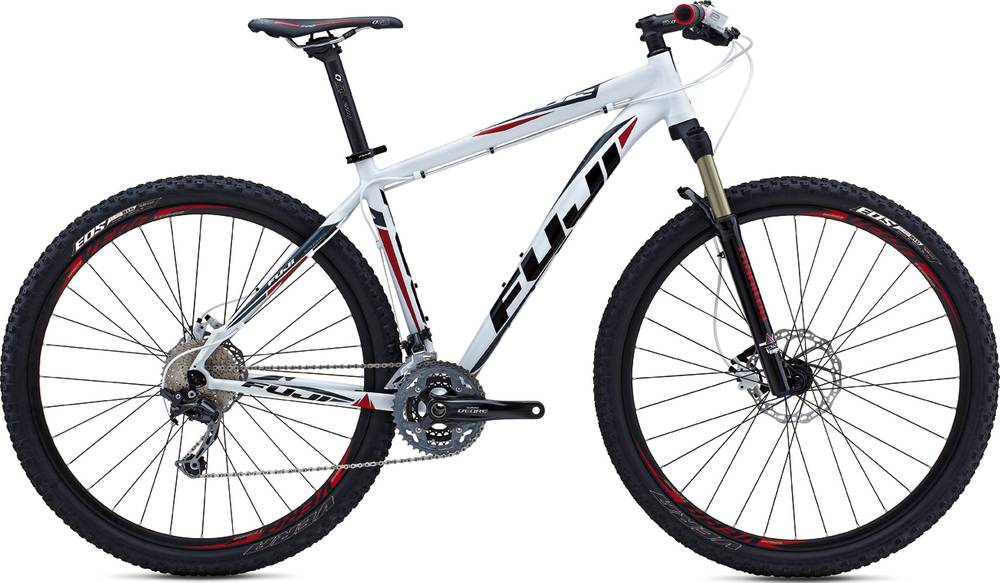

Tahoe 29 1.7 D is part of the Fuji Tahoe model. There are 116 bikes that carry this model name. Check out the entire range from 2013 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Crosscountry bikes
Crosscountry bikes weigh an average of 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 12.57 kg (27.71 lbs), Fuji bike is slightly heavier than average. In short, the average Crosscountry bike weight is 1.37% lower than this one.
Tahoe 29 1.7 D components
Fork
The fork installed on this bike is the Manitou model. The travel on this model is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
The fork on this bike is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
The wheels on Tahoe 29 1.7 D are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Fuji Tahoe 29 1.7 D is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
