Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Fork RockShox
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
A2-SL alloy w/ PowerCurve down tube, hydroformed top tube, and semi-integrated tapered head tube, double water bottle mounts
Suspension Fork
RockShox XC32 TK tapered alloy steerer w/ PopLoc remote lockout, 100mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Deore SGS, Shadow top normal 10-speed
Front Derailleur
Shimano Deore, 34.9mm
Shift Levers
Shimano Deore Rapid Fire, 30-speed
Cassette
Shimano Deore, 11-36T 10-speed
Crank
Shimano M522 Hollow Tech, 24/32/42T
Bottom Bracket
Shimano octalink
Chain
KMC X10, 10-speed
Pedals
Wellgo ATB w/ steel cage w/ toe clips and straps
Wheels
Rims
Fuji 32H mountain disc hubs, Alex DP17 rims
Tires
Continental Race King 26x2.2" or Hutchinson Cougar Air Light 26x2.2"
Brakes
Brakes
Tektro Draco hydraulic disc, 180/160mm rotor
Brake Levers
Tektro Draco hydraulic disc
Cockpit
Stem
Oval M200 alloy reverse bolt technology, 31.8mm
Handlebar
Oval M200 alloy riser bar, 15mm rise, 9° sweep, 31.8mm, 680mm wide
Headset
Oval 1 1/8" - 1 1/2" semi-integrated, 30mm spacers
Seat
Saddle
Fuji mountain w/ steel rails
Seatpost
Oval M200, 31.6x350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD | MD/LG | LG |
|---|---|---|---|---|---|
| Bottom Bracket Height | 303 mm | 303 mm | 303 mm | 303 mm | 303 mm |
| Top Tube Length | 538 mm | 578 mm | 602 mm | 628 mm | 648 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 533.4 mm | 584.2 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 1017 mm | 1057 mm | 1082 mm | 1107 mm | 1130 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 755 mm | 779 mm | 806 mm | 841 mm | 872 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" |
Model Overview

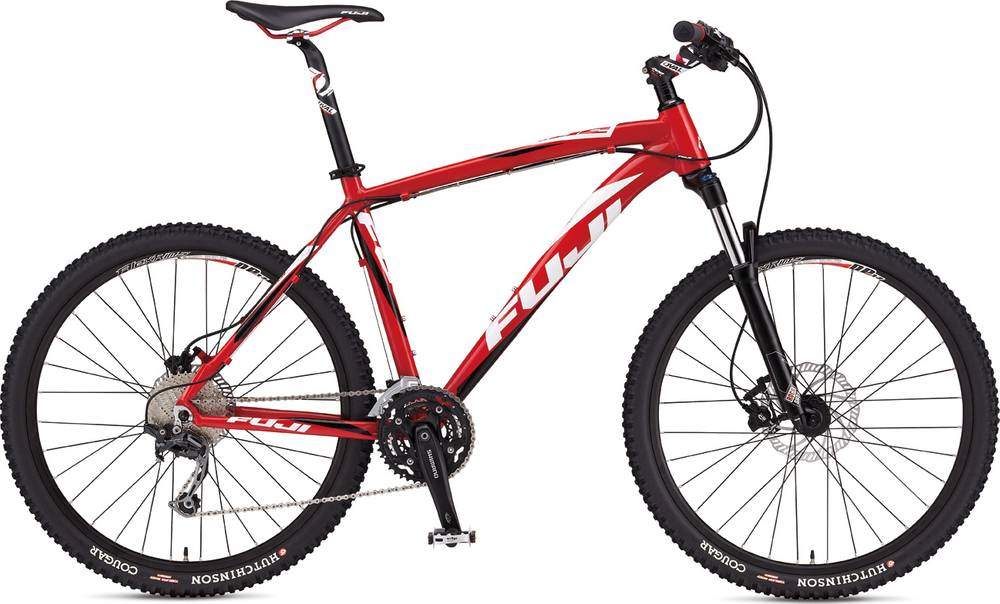

Tahoe 4.0 USA is part of the Fuji Tahoe model. Fuji released 116 bikes variations of this model so far. You can get a glimpse at all models from 2012, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Tahoe 4.0 USA components
Fork
The RockShox is included from the factory. It has a travel distance of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
The fork on this bike is made out of aluminum, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels size
When leaving the production line, the Tahoe 4.0 USA model has 26″ aluminum wheels. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Fuji Tahoe 4.0 USA is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
