Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork Manitou
-
Groupset XT, Deore -
Suspension Hardtail -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL custom-butted alloy w/ PowerCurve down tube, smooth welds, hydroformed top tube, tapered 1 1/8" - 1.5" head tube, BB91 bottom bracket
Suspension Fork
Manitou Marvel Comp w/ remote lockout, tapered alloy steerer, 100mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Deore XT shadow, 10-speed
Front Derailleur
Shimano Deore, 34.9mm
Shift Levers
Shimano Deore, Rapid Fire, 10-speed
Cassette
Shimano HG-50, 11-36T, 10-speed
Crank
Shimano Deore, integrated spindle, 38/24T
Bottom Bracket
Shimano, press-fit
Chain
KMC X10 w/ MissingLink, 10-speed
Pedals
N/A
Wheels
Rims
OVAL Concepts 200 6-bolt disc wheelset, 32h, stainless spokes
Tires
Schwalbe Rocket Ron, 27.5" x 2.25", 67 tpi, folding
Brakes
Brakes
Shimano Deore, hydraulic disc, 180/160mm rotor
Brake Levers
Shimano Deore, hydraulic disc
Cockpit
Stem
Oval Concepts 713, 3D-forged 7050 alloy, 31.8mm, 6° rise
Handlebar
Oval Concepts 650, 7050 alloy, flat, 31.8mm, 9° sweep, 5mm rise, 680mm wide
Headset
FSA NO.42B, 1 1/8" - 1.5", caged bearings
Seat
Saddle
Oval Concepts 400 w/ CrMo rails
Seatpost
Oval Concepts 650, 7050 alloy, 31.6mm, double-bolt micro-adjust
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.65 mm | 1.5 mm | 1.45 mm |
| Bottom Bracket Height | 311 mm | 311 mm | 311 mm |
| Front Center | 599 mm | 639 mm | 664 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 78 mm | 81 mm | 81 mm |
| Stack | 585.1 mm | 594.5 mm | 603.9 mm |
| Reach | 355.6 mm | 395.6 mm | 416.7 mm |
| Top Tube Length | 538 mm | 578 mm | 602 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1023 mm | 1063 mm | 1088 mm |
| Bottom Bracket Drop | 44 mm | 44 mm | 44 mm |
| Standover Height | 757 mm | 794 mm | 819 mm |
| Wheels | 27" | 27" | 27" |
About this model

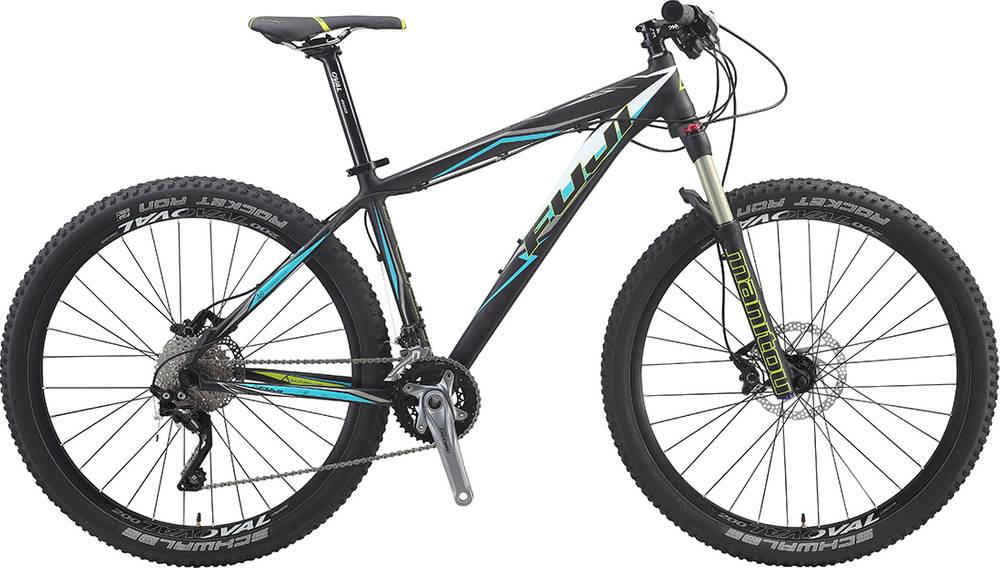

Tahoe Elite 27.5 1.3 Disc completes the Fuji Tahoe model. Fuji released 116 bikes variations of this model so far. Check out the entire range from 2015 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Tahoe Elite 27.5 1.3 Disc components
Fork
Fuji Tahoe Elite 27.5 1.3 Disc 2015 bike is equipped with the Manitou fork, and has 100mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
The fork is made out of aluminum, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels
When leaving the production line, the Tahoe Elite 27.5 1.3 Disc model has 27.5″ aluminum wheels. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Fuji Tahoe Elite 27.5 1.3 Disc has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
