Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork SunTour XCR
-
Groupset SLX, Deore -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL custom-butted alloy w/ PowerCurve down tube, smooth welds, hydroformed top tube, tapered 1 1/8" - 1.5" head tube, BB91 bottom bracket
Suspension Fork
SR Suntour SF14-XCR-RL w/ remote lockout, 100mm travel
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano SLX shadow, 10-speed
Front Derailleur
Shimano Deore, 34.9mm
Shift Levers
Shimano Deore, Rapid Fire, 10-speed
Cassette
Shimano HG-50, 11-36T, 10-speed
Crank
Shimano Deore, integrated spindle, 40/30/22T
Bottom Bracket
Shimano, press-fit
Chain
KMC X10 w/ MissingLink, 10-speed
Pedals
N/A
Wheels
Rims
Vera Terra DPD22 rims 32h, Shimano RM33 CL disc hubs, stainless black spokes
Tires
Schwalbe Rapid Rob, 27.5" x 2.25", 50 tpi
Brakes
Brakes
Shimano M355, hydraulic disc, 180/160mm rotor
Brake Levers
Shimano M355, hydraulic disc
Cockpit
Stem
Oval Concepts 313, 6061 3D-forged alloy, 31.8mm, 7° rise
Handlebar
Oval Concepts 200, 6061 alloy, riser, 31.8mm, 9° sweep, 15mm rise, 680mm wide
Headset
FSA NO.42B, 1 1/8" - 1.5", caged bearings
Seat
Saddle
Oval Concepts 200 w/ steel rails
Seatpost
Oval Concepts 300, 6061 alloy, 31.6, double-bolt micro-adjust
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM/MD | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.65 mm | 1.5 mm | 1.45 mm |
| Bottom Bracket Height | 311 mm | 311 mm | 311 mm |
| Front Center | 599 mm | 639 mm | 664 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 78 mm | 81 mm | 81 mm |
| Stack | 585.1 mm | 594.5 mm | 603.9 mm |
| Reach | 355.6 mm | 395.6 mm | 416.7 mm |
| Top Tube Length | 538 mm | 578 mm | 602 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1023 mm | 1063 mm | 1088 mm |
| Bottom Bracket Drop | 44 mm | 44 mm | 44 mm |
| Standover Height | 757 mm | 794 mm | 819 mm |
| Wheels | 27" | 27" | 27" |
Model Overview

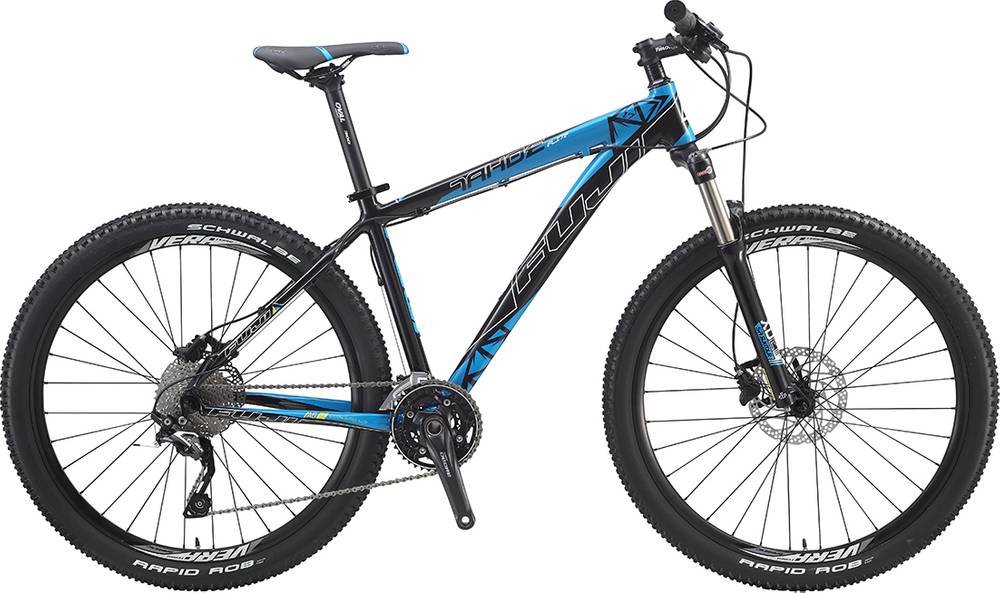

Tahoe Elite 27.5 1.7 Disc is part of the Fuji Tahoe model. Fuji launched 116 bikes of this model so far. Check out the entire range from 2015 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Overview of components
Fork
The fork installed on this bike is the SunTour XCR model. The travel on this model is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
As for the wheels, Fuji Tahoe Elite 27.5 1.7 Disc 2015, has a 27.5″ aluminum model. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Fuji Tahoe Elite 27.5 1.7 Disc has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
