Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 80mm -
Fork SunTour XCR
-
Groupset Deore, Shimano -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji Altair 2 custom butted aluminum with PowerDiamond down tube, top tube/seat tube gusset, Hydro-formed top and down tube, Integrated head tube, double water bottle mounts
Suspension Fork
SR Suntour XCR-LO 30mm stanchions w/Hydraulic Speed LO & 80mm travel
Drivetrain
Rear Derailleur
Shimano Deore, Top normal
Front Derailleur
Shimano Deore, 34.9mm
Shift Levers
Shimano Deore Rapid Fire, 27-speed
Cassette
Shimano CS-HG50, 11-34T 9-speed
Crank
Shimano FC-M442 Forged Alloy, 22/32/44T
Bottom Bracket
Sealed Cartridge Bearing ST
Chain
KMC Z-9000
Pedals
Wellgo ATB w/steel cage, toe clips and straps
Wheels
Front Hub
Fuji Sealed Bearing Disc, 32H
Rear Hub
Fuji Sealed Bearing Disc, 32H
Rims
Alex ID-19 Double Wall CNC Sidewalls, 32H
Spokes
14G Stainless Steel
Tires
Continental Race King 26 X 2.2"
Brakes
Brakes
Shimano BR-M421 Forged Alloy V-brake
Brake Levers
Shimano BL-M420 Forged Alloy 2 finger
Cockpit
Stem
Fuji Forged Aluminum 1 1/8" threadless
Handlebar
Fuji Pro Riser 15mm Aluminum 31.8mm
Headset
V.P. A-42E 1 1/8" Press Fit Integrated, 30mm spacers
Seat
Saddle
WTB Rocket V Comp SE
Seatpost
Fuji Micro Adjust, 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 381 | 43.1cm | 48.2cm | 53.3cm | 58.4cm |
|---|---|---|---|---|---|
| Bottom Bracket Height | 296 mm | 296 mm | 296 mm | 296 mm | 296 mm |
| Front Center | 594 mm | 629 mm | 654 mm | 680 mm | 695 mm |
| Rake | 38 mm | 38 mm | 38 mm | 38 mm | 38 mm |
| Top Tube Length | 538 mm | 578 mm | 603 mm | 628 mm | 648 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 381 mm | 431 mm | 482 mm | 533 mm | 584 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 110 mm | 110 mm | 115 mm | 140 mm | 155 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 1009 mm | 1045 mm | 1070 mm | 1096 mm | 1111 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm | 34 mm | 34 mm |
| Standover Height | 707 mm | 731 mm | 758 mm | 793 mm | 823 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
About this model

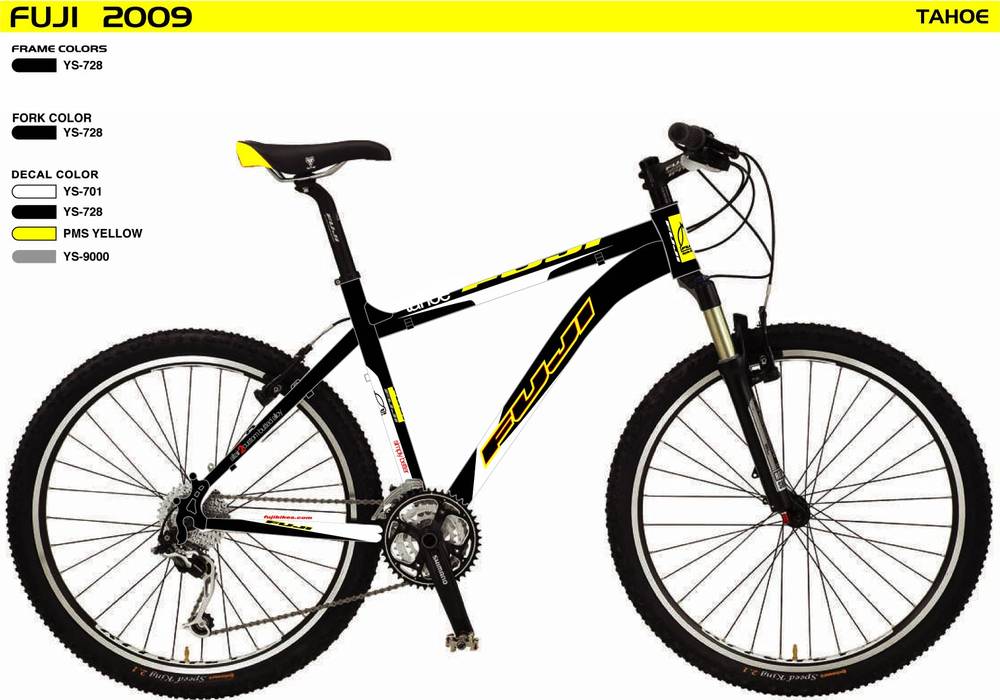

Tahoe (Europe) is part of the Fuji Tahoe model. 116 bikes variations carry this model name so far. You can easily view all of the Fuji Tahoe bikes models from 2009, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Tahoe (Europe) components
Fork
The fork installed on this bike is the SunTour XCR model. The travel on this model is 80mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When leaving the production line, the Tahoe (Europe) model has 27.5″ aluminum wheels. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Fuji Tahoe (Europe) is equipped with Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they have problems in wet conditions.
